K20A3 engine-2005-2006 models

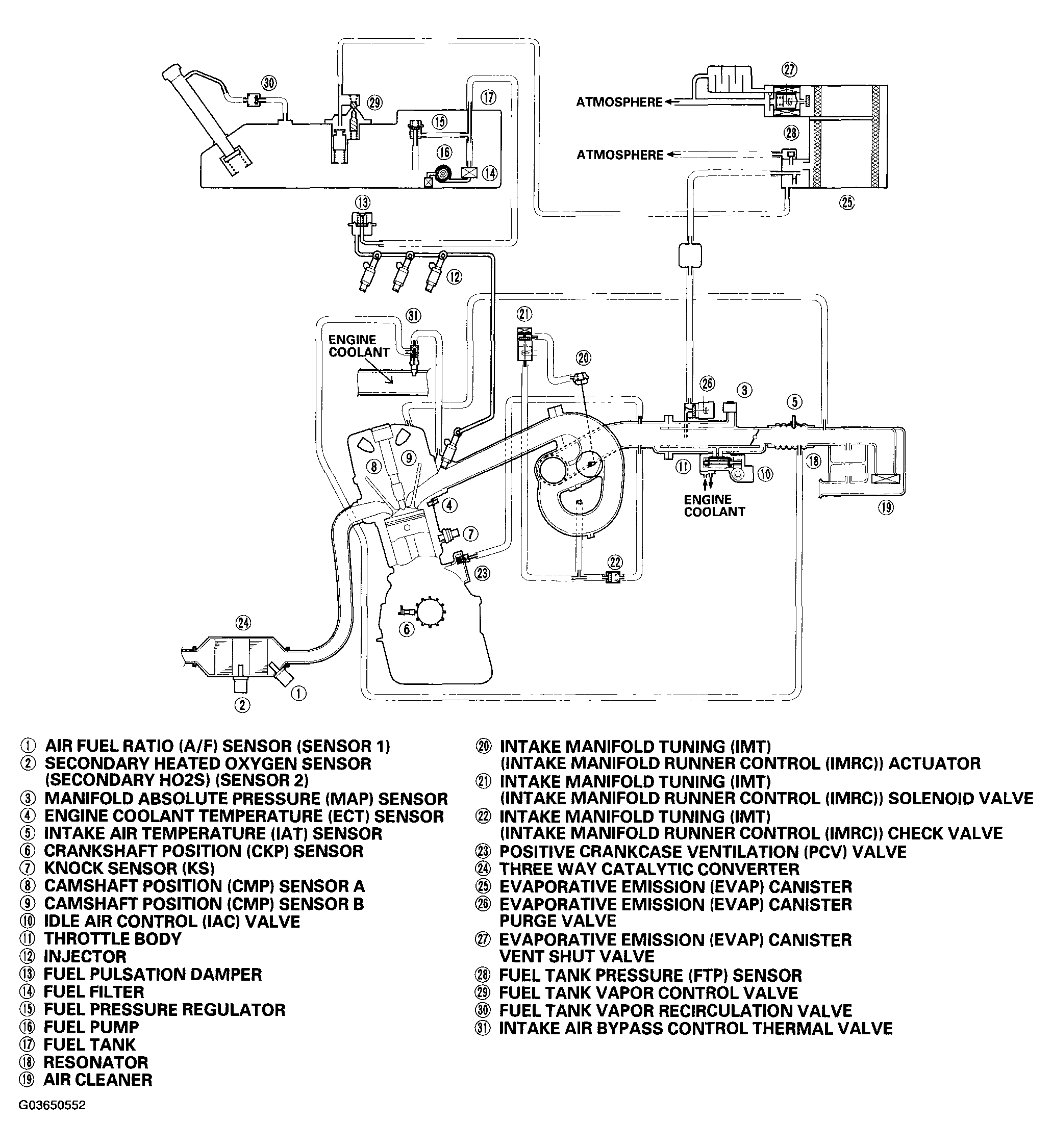

Fig 1: Identifying Vacuum Distribution (K20A3 Engine)
G03650552Courtesy of AMERICAN HONDA MOTOR CO., INC.
