Automatic Transmission
>>
A/T Interlock System
>>
Circuit Diagram
>>
2002-2004 Models
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
2002-2004 Models

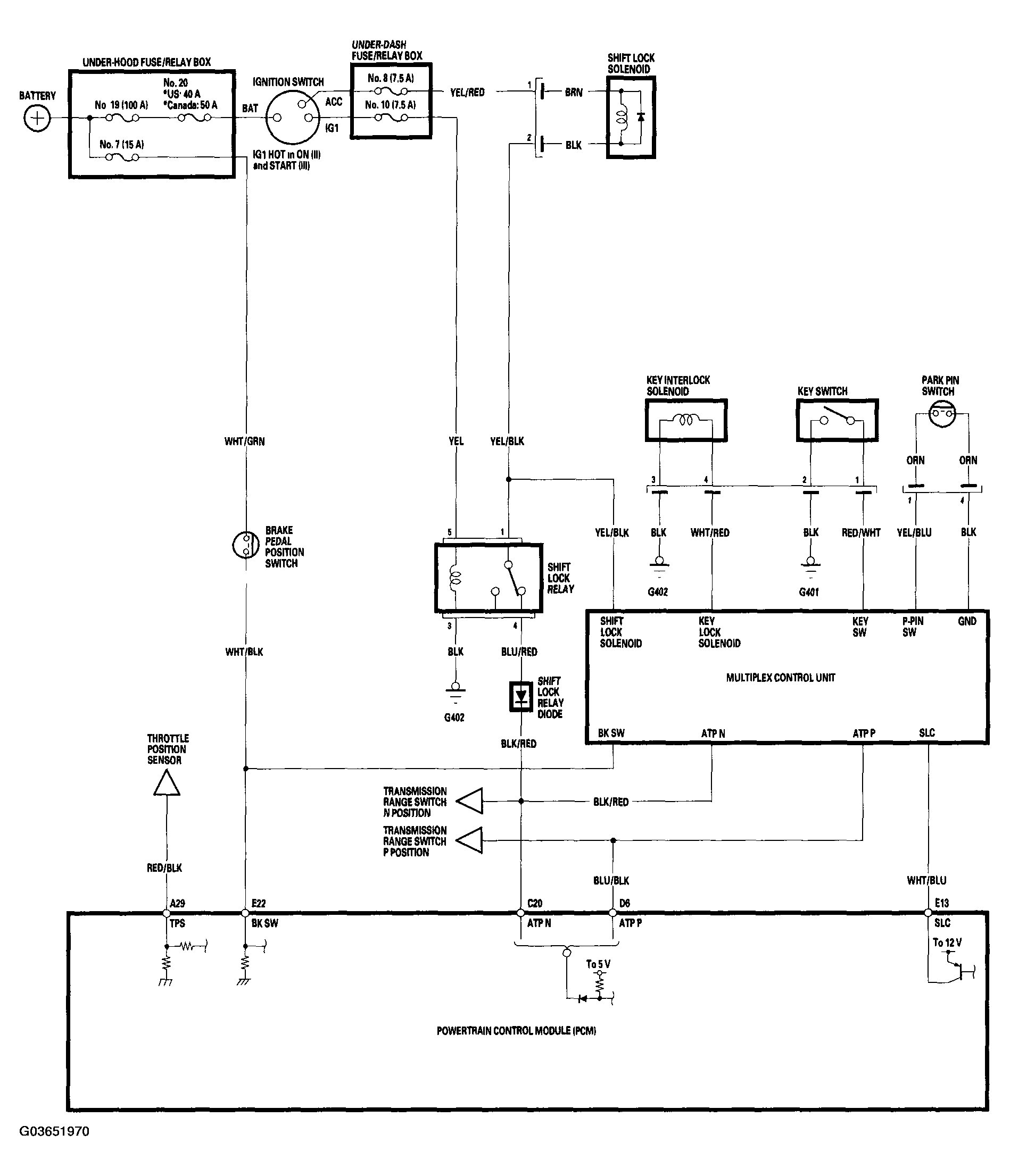

Fig 1: A/T Interlock System Circuit Diagram (2002-2004 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
