ECM/PCM Circuit Diagram

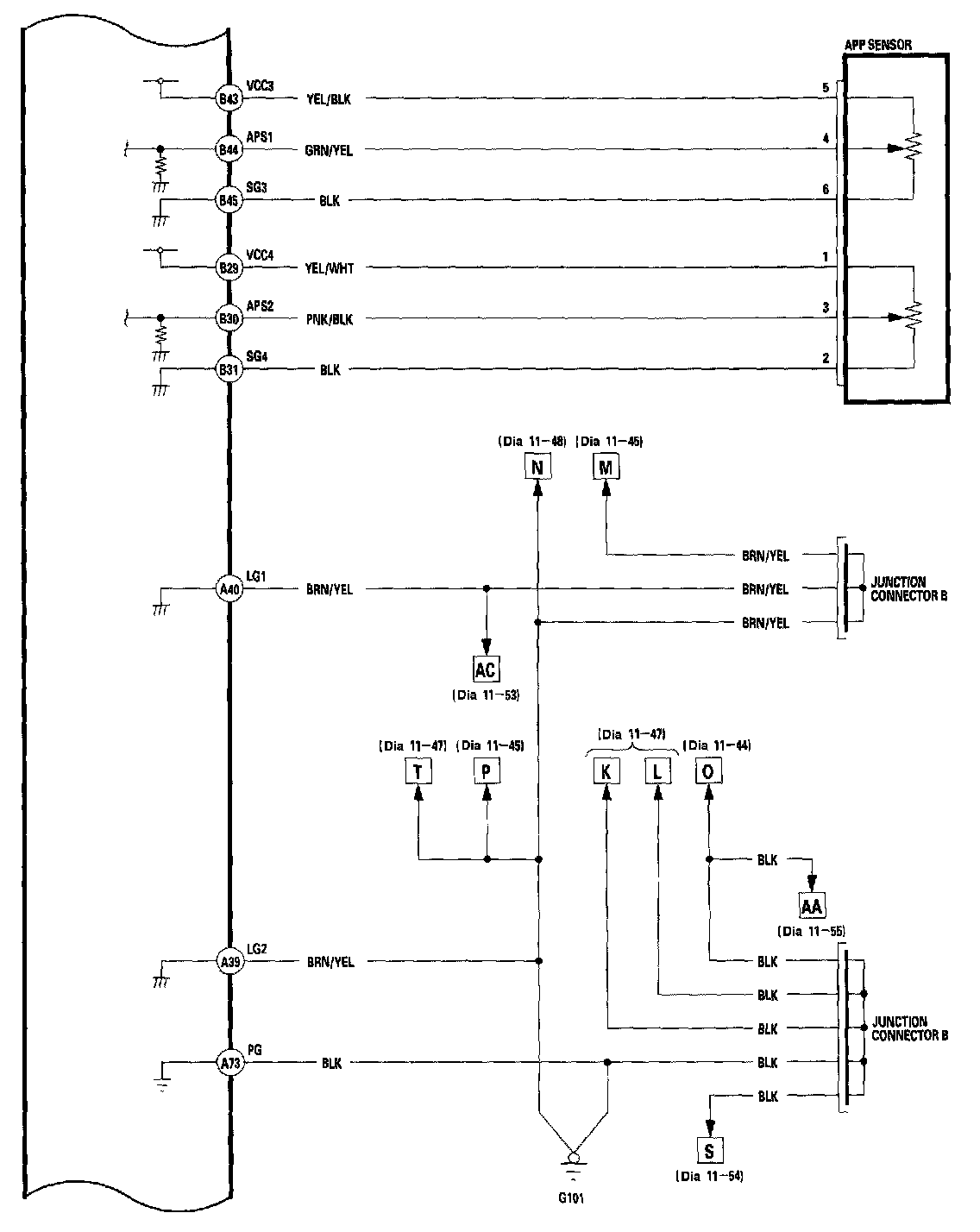

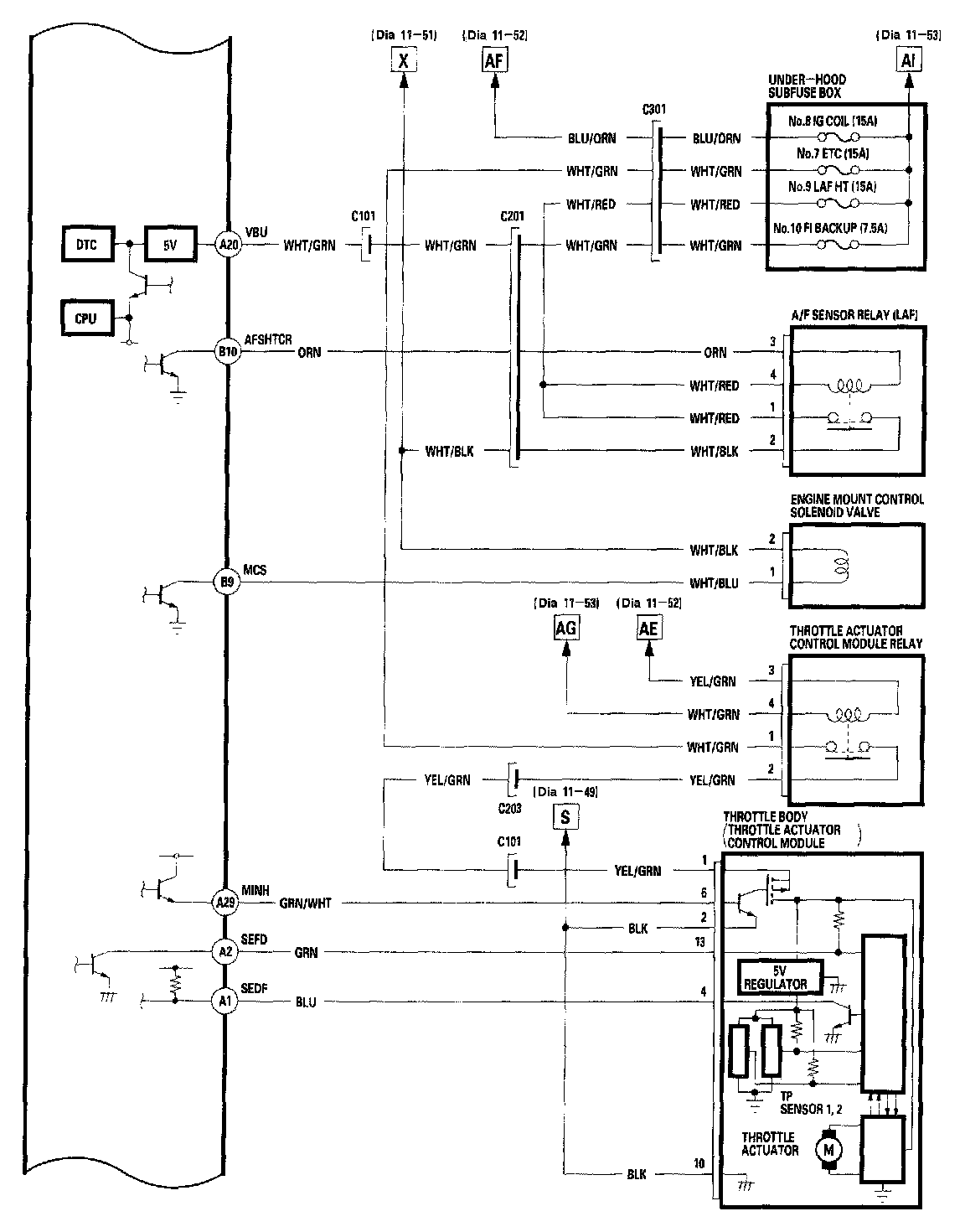

PCM Circuit Diagram 11-44:

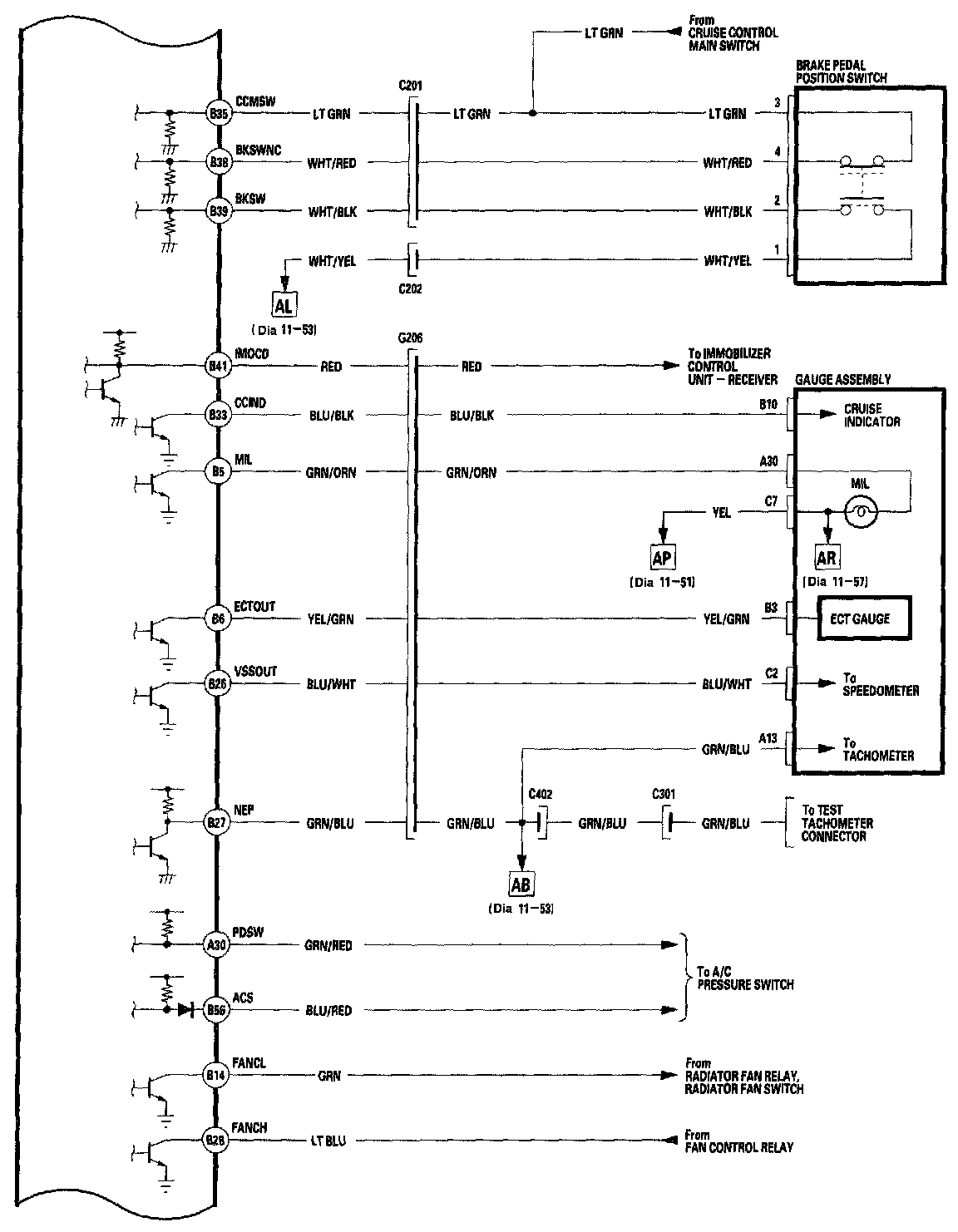

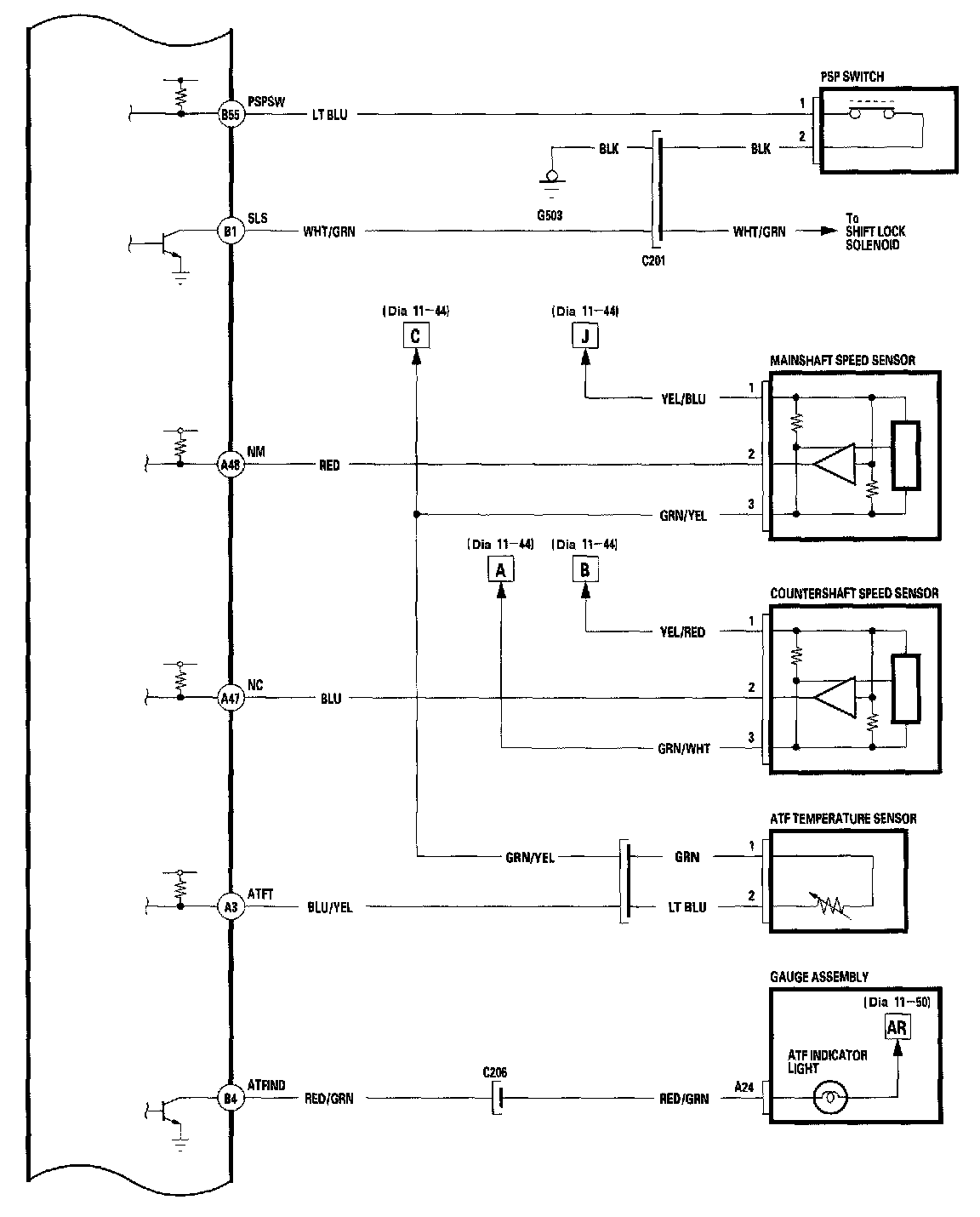

PCM Circuit Diagram 11-45:

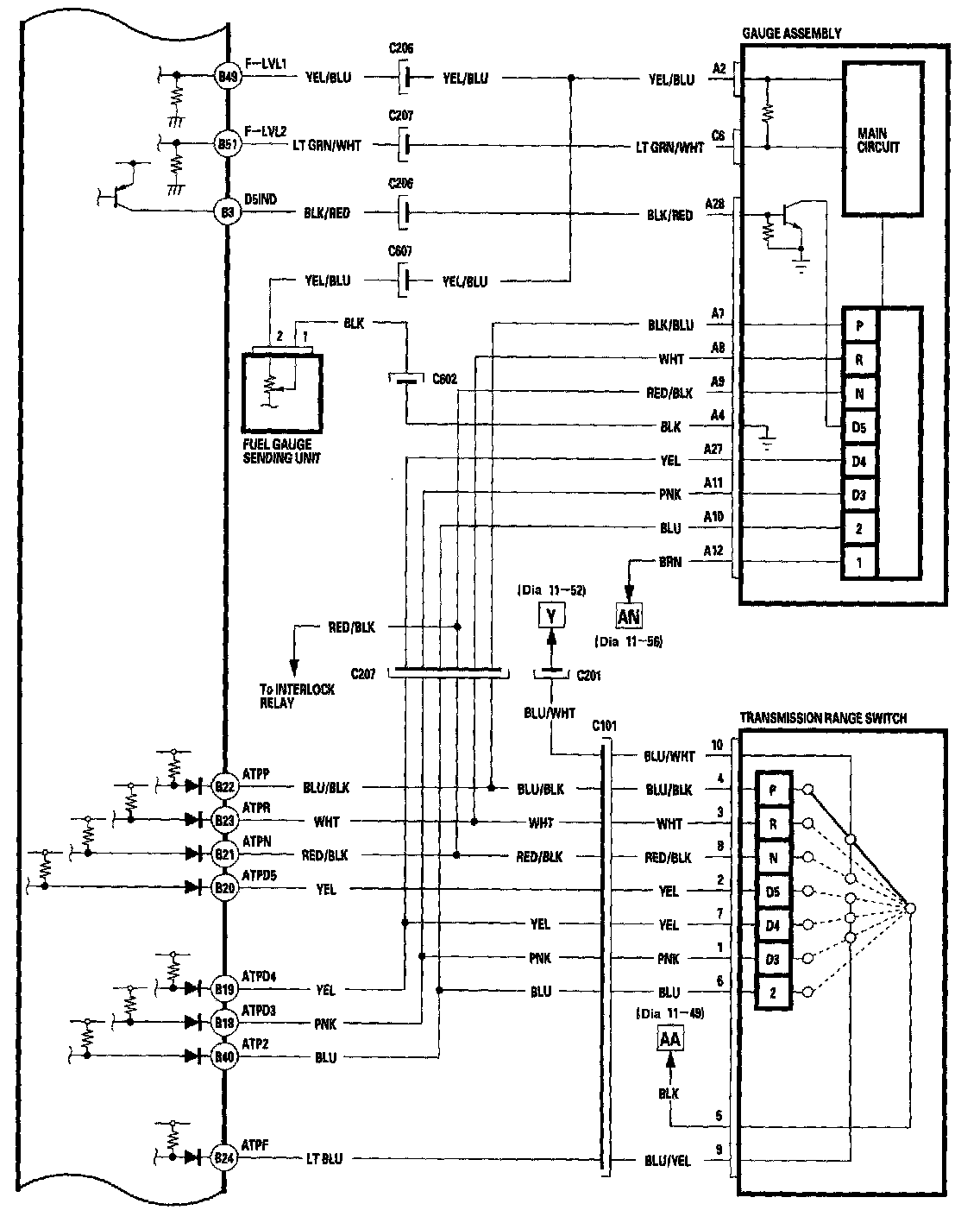

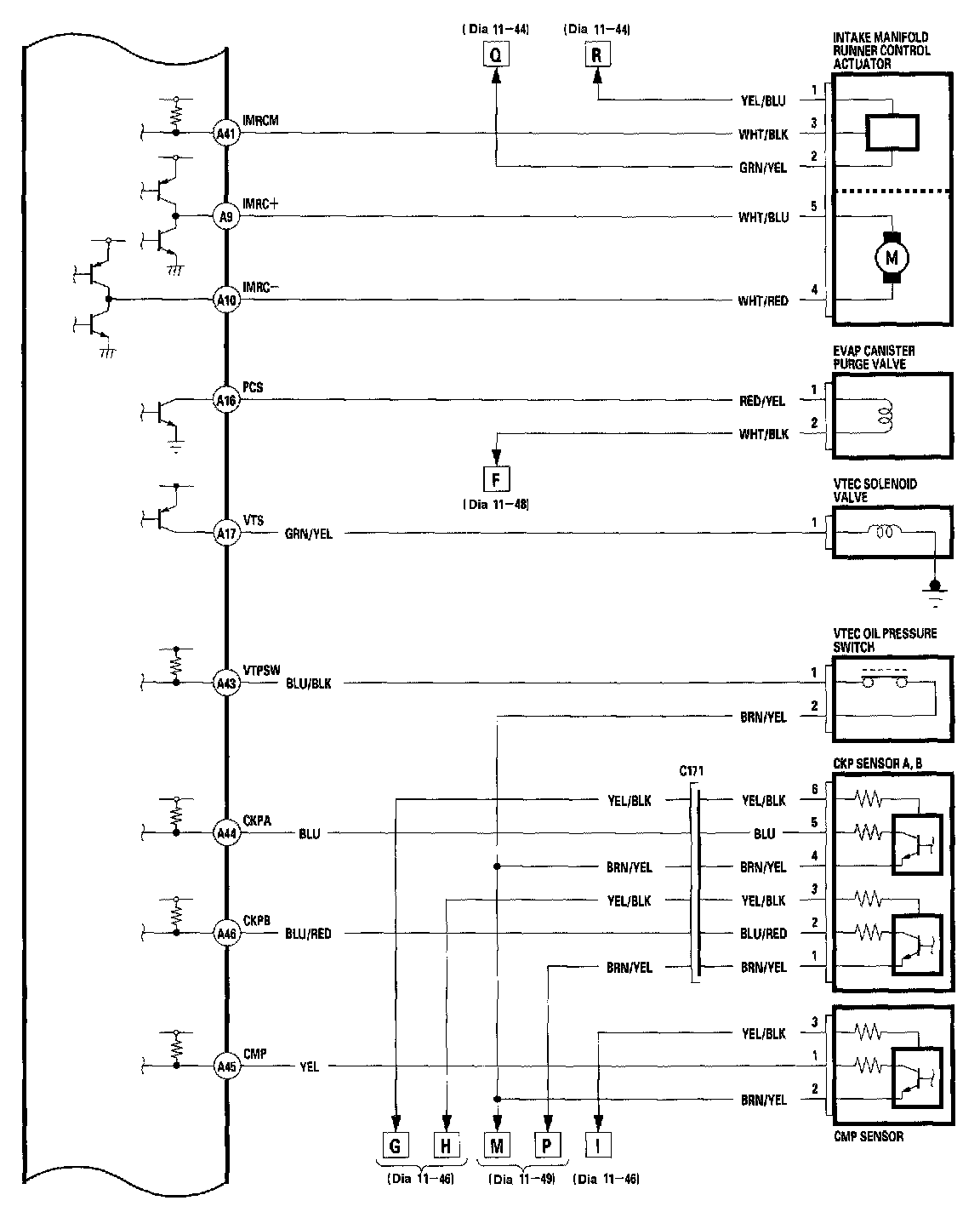

PCM Circuit Diagram 11-46:

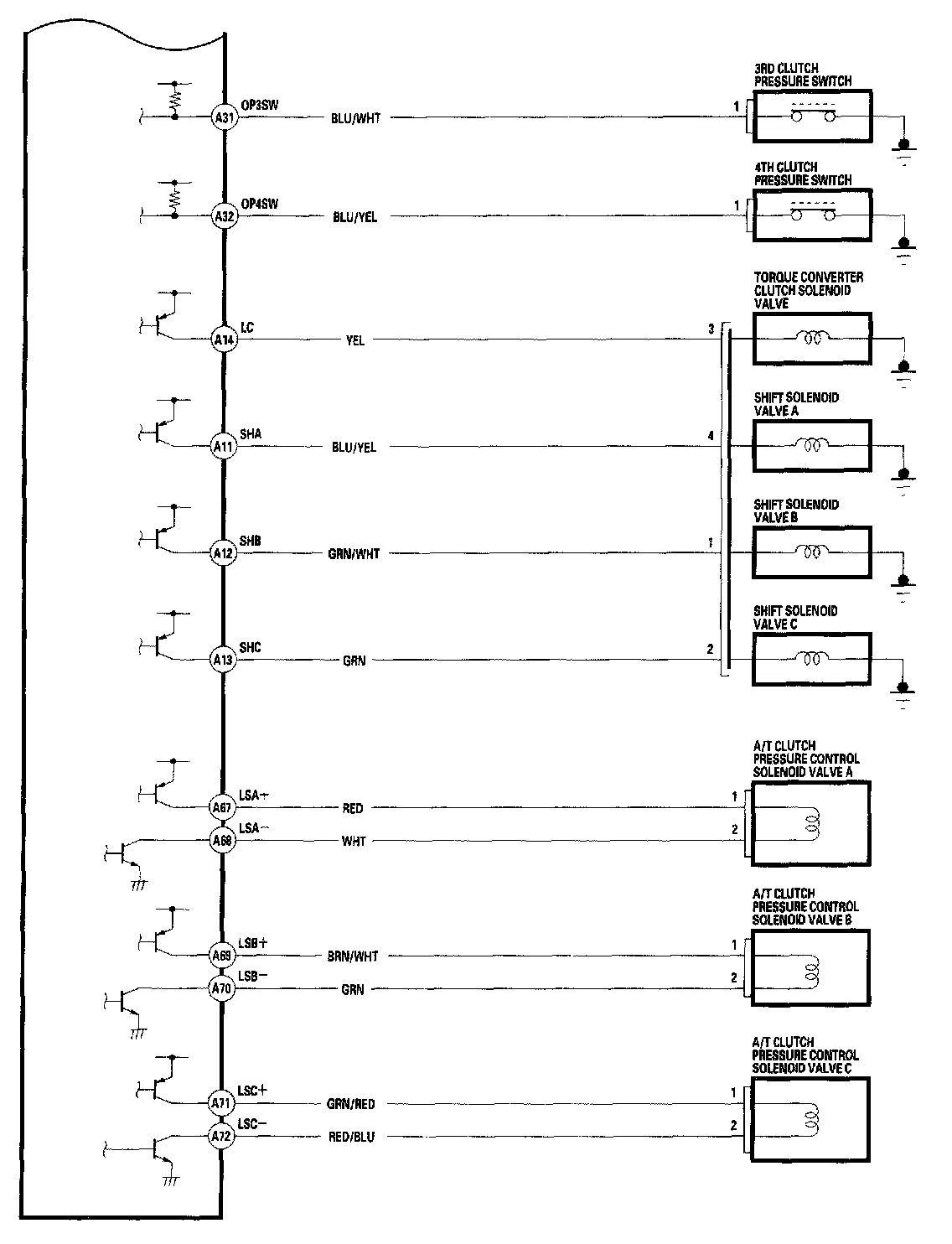

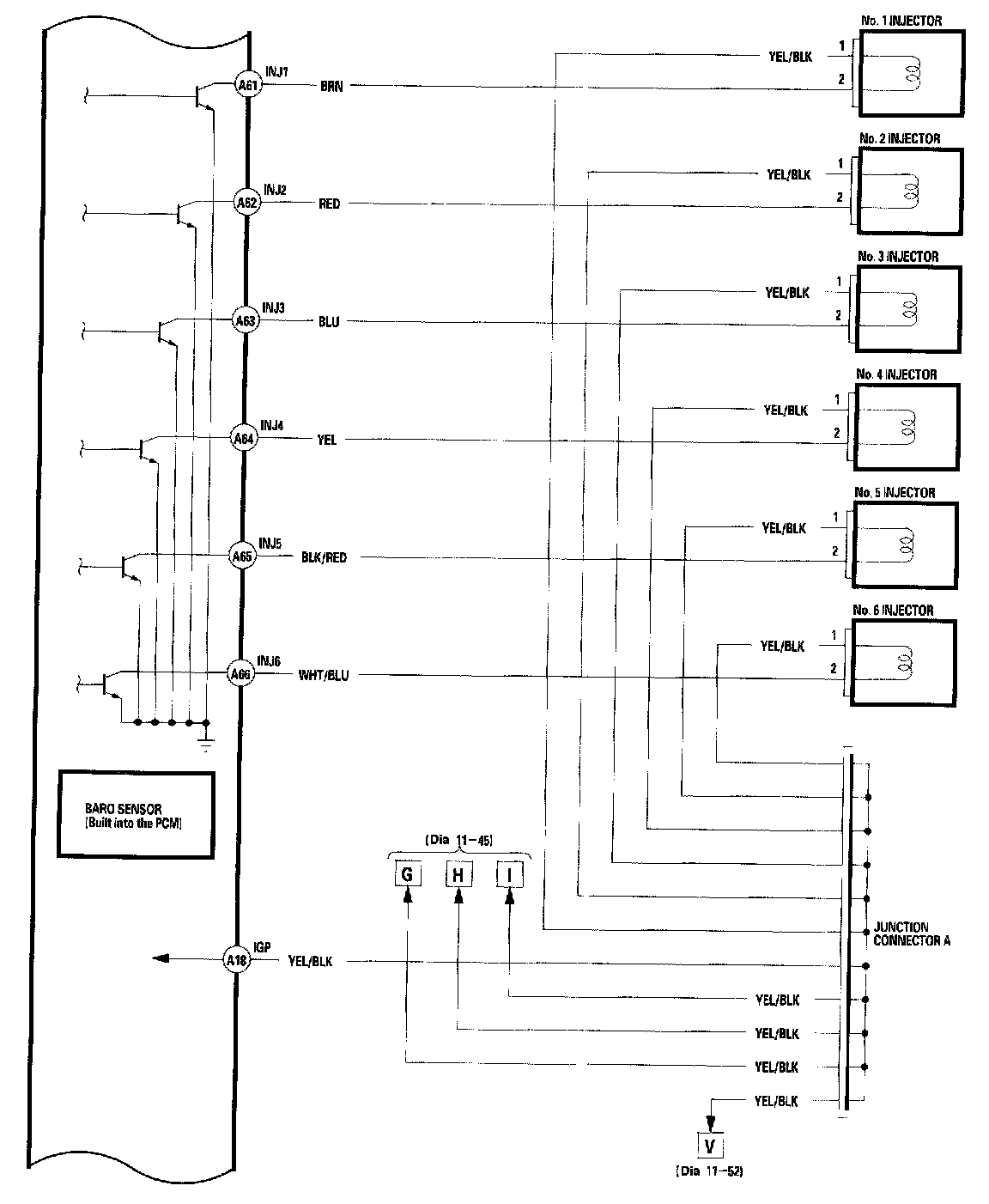

PCM Circuit Diagram 11-47:

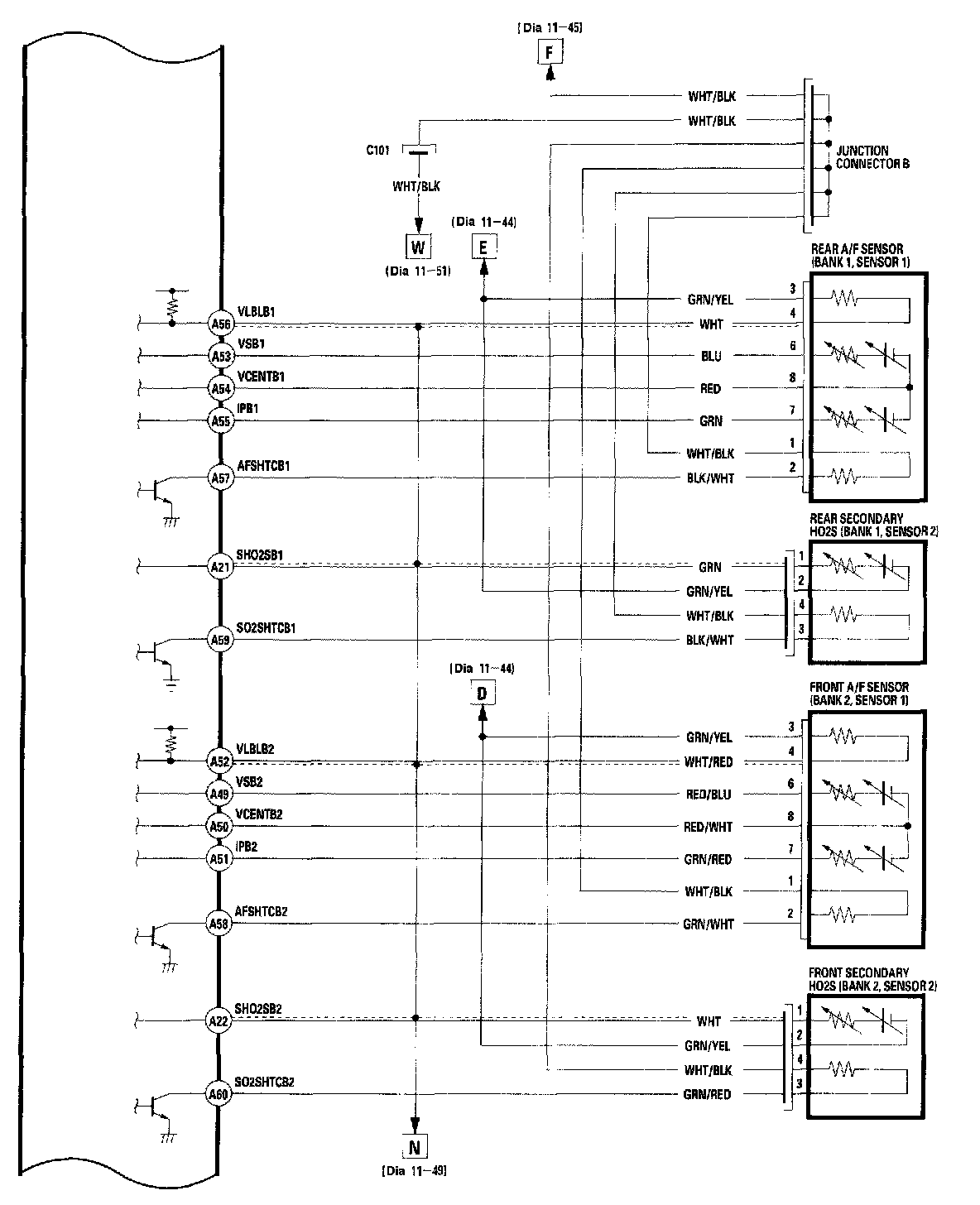

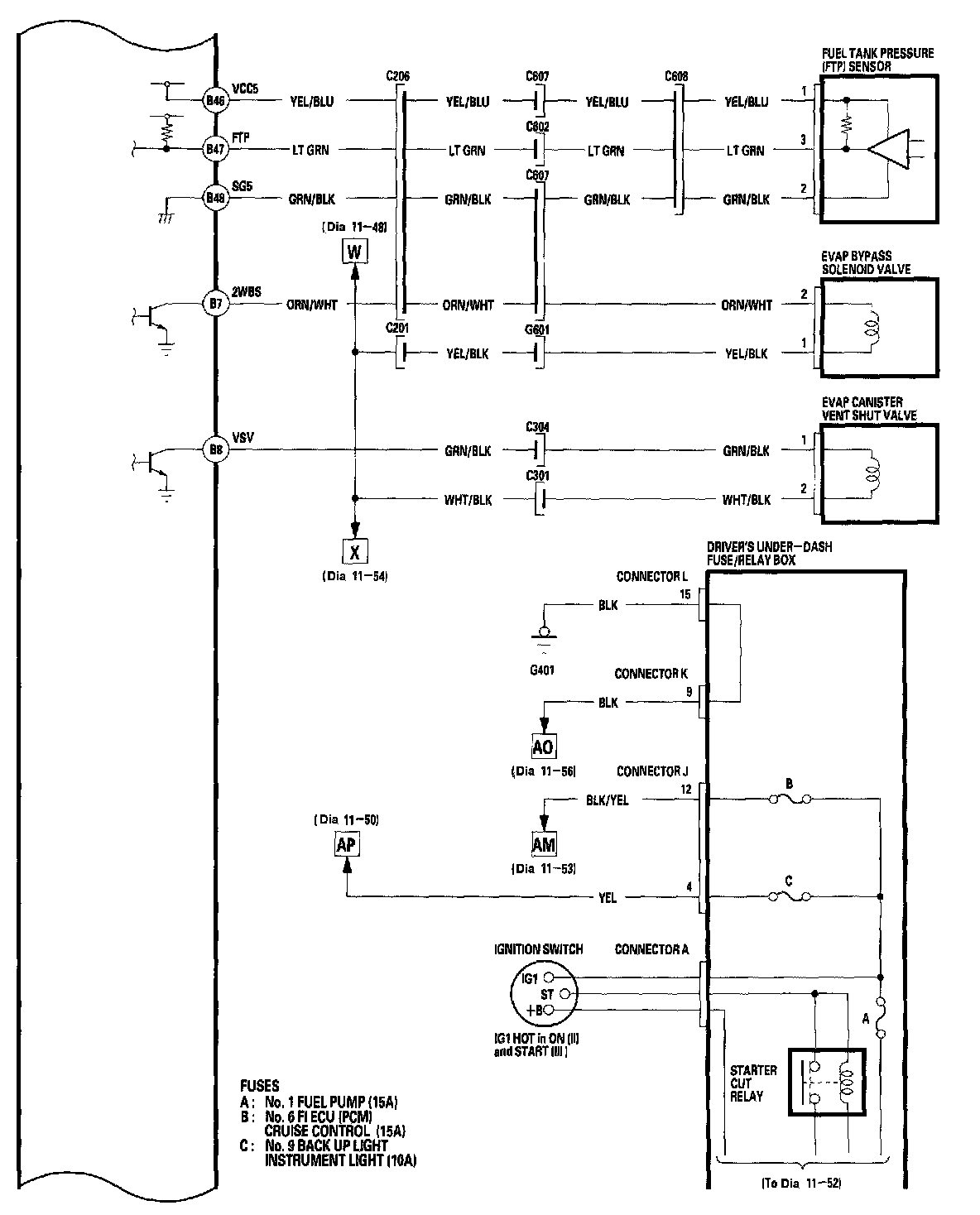

PCM Circuit Diagram 11-48:

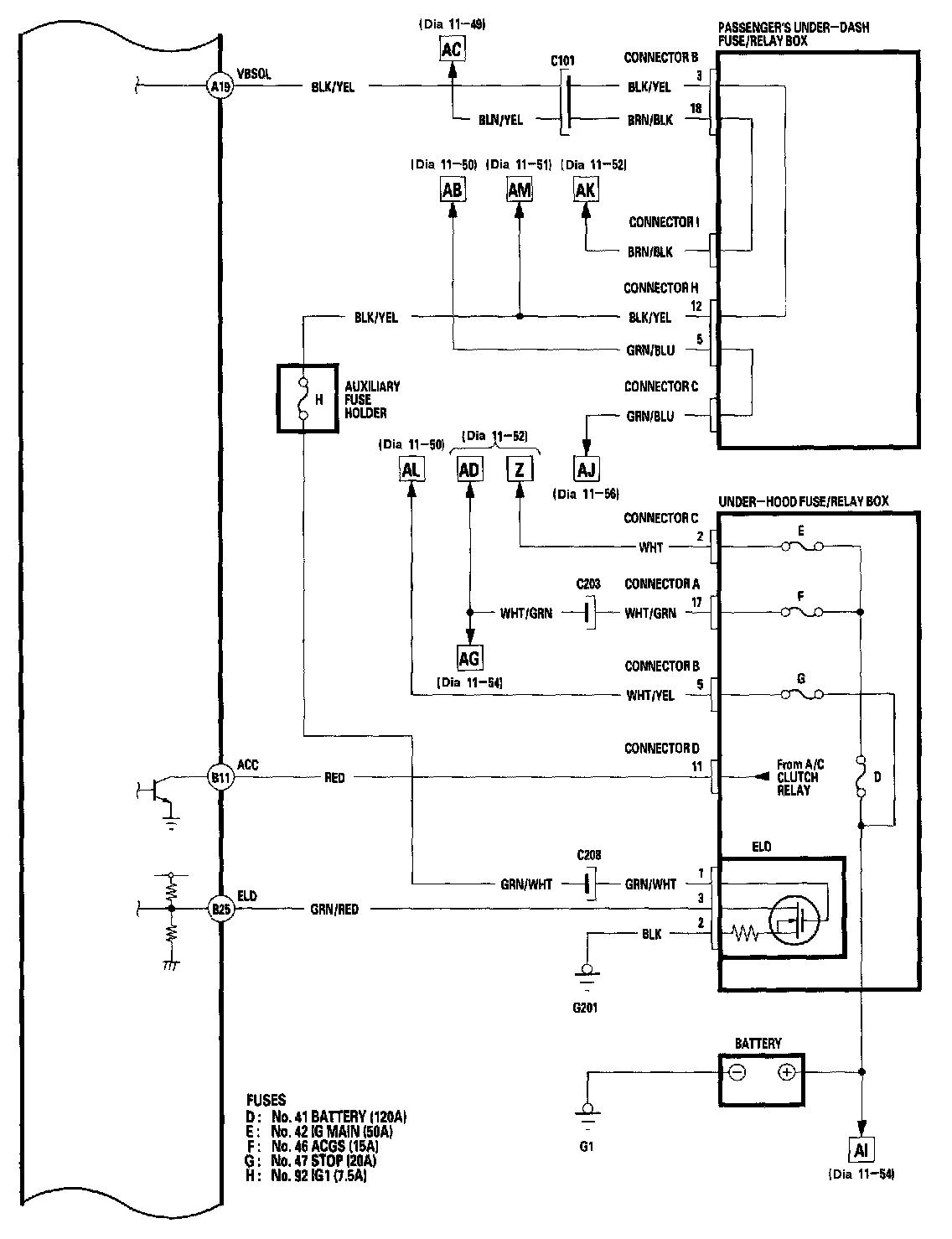

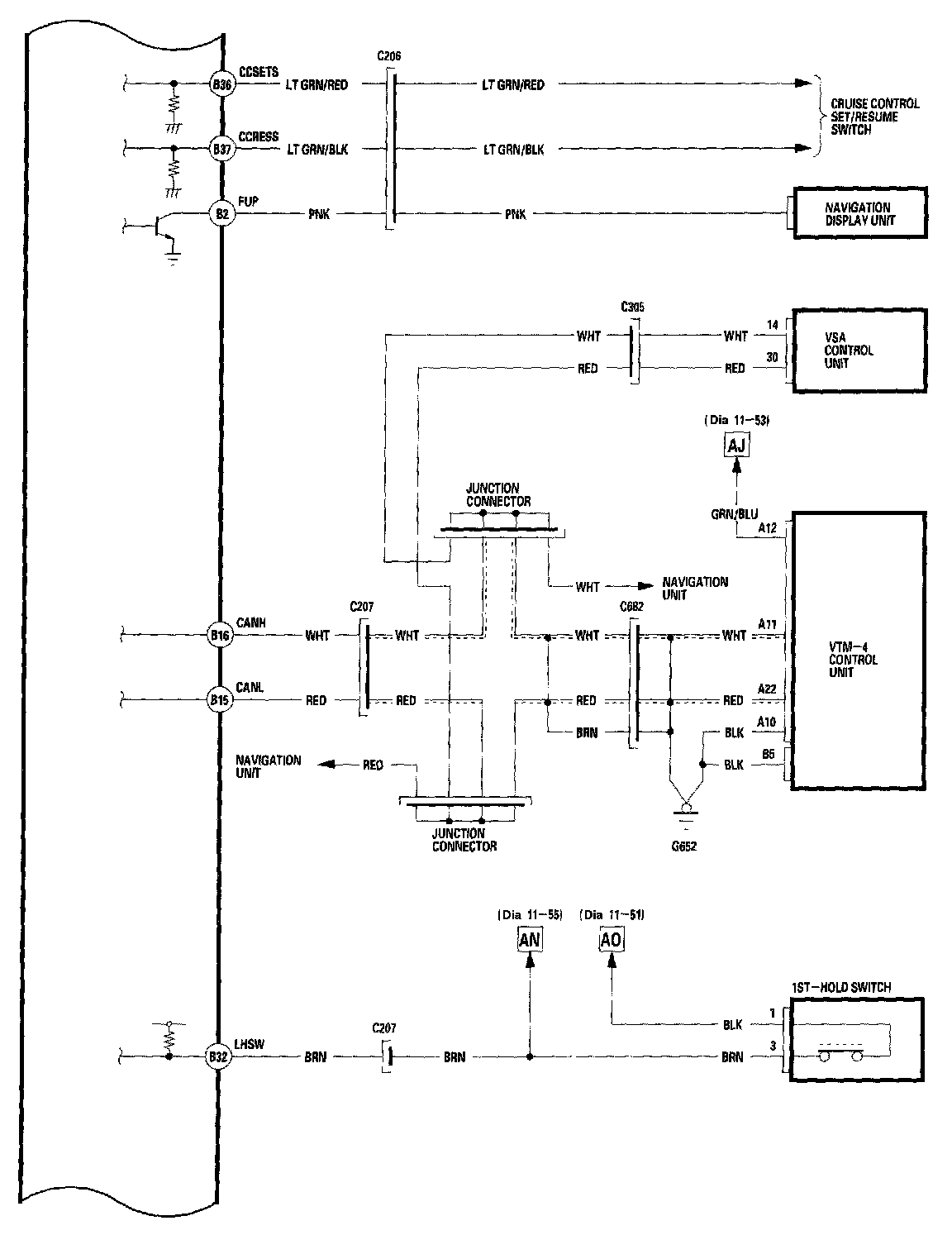

PCM Circuit Diagram 11-49:

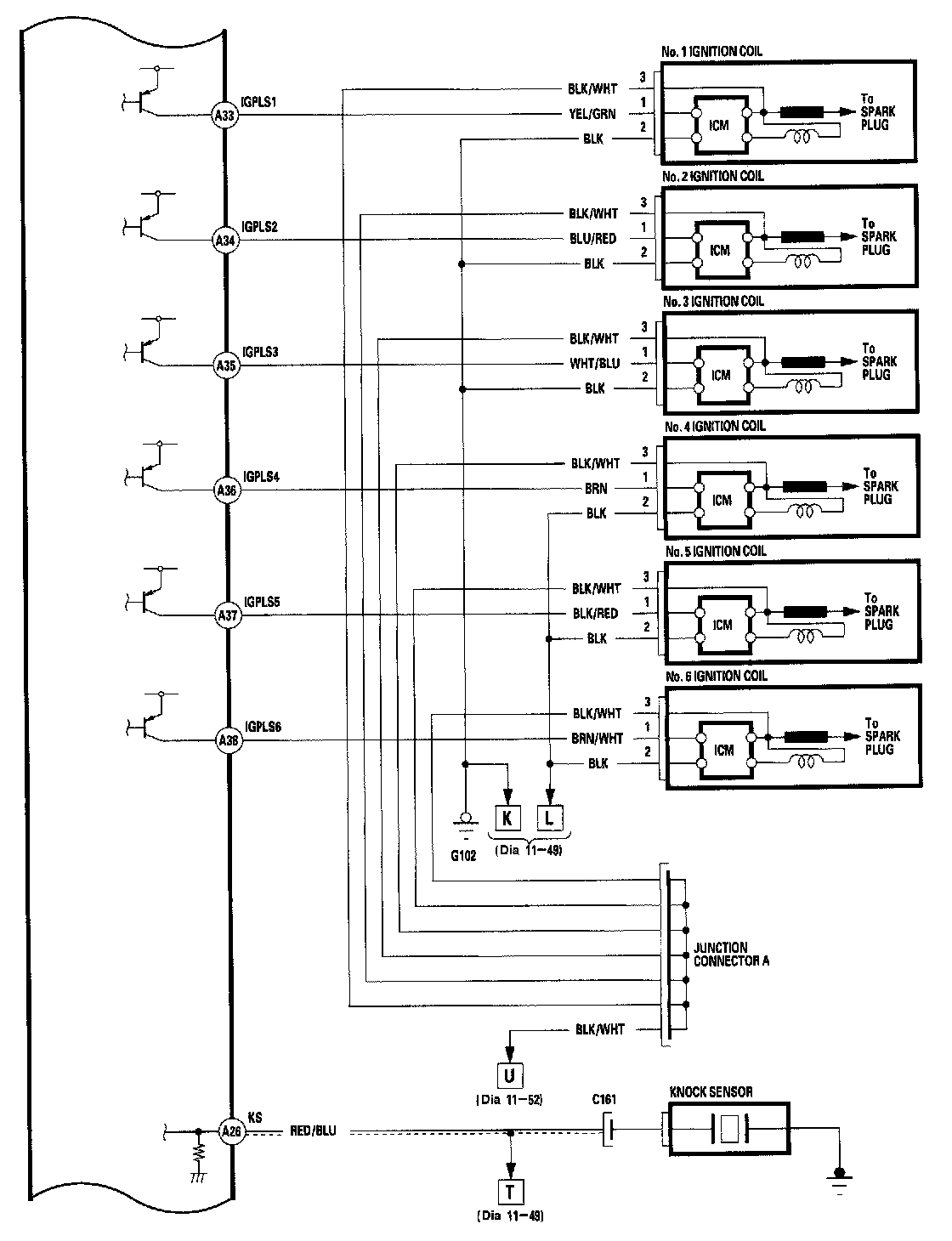

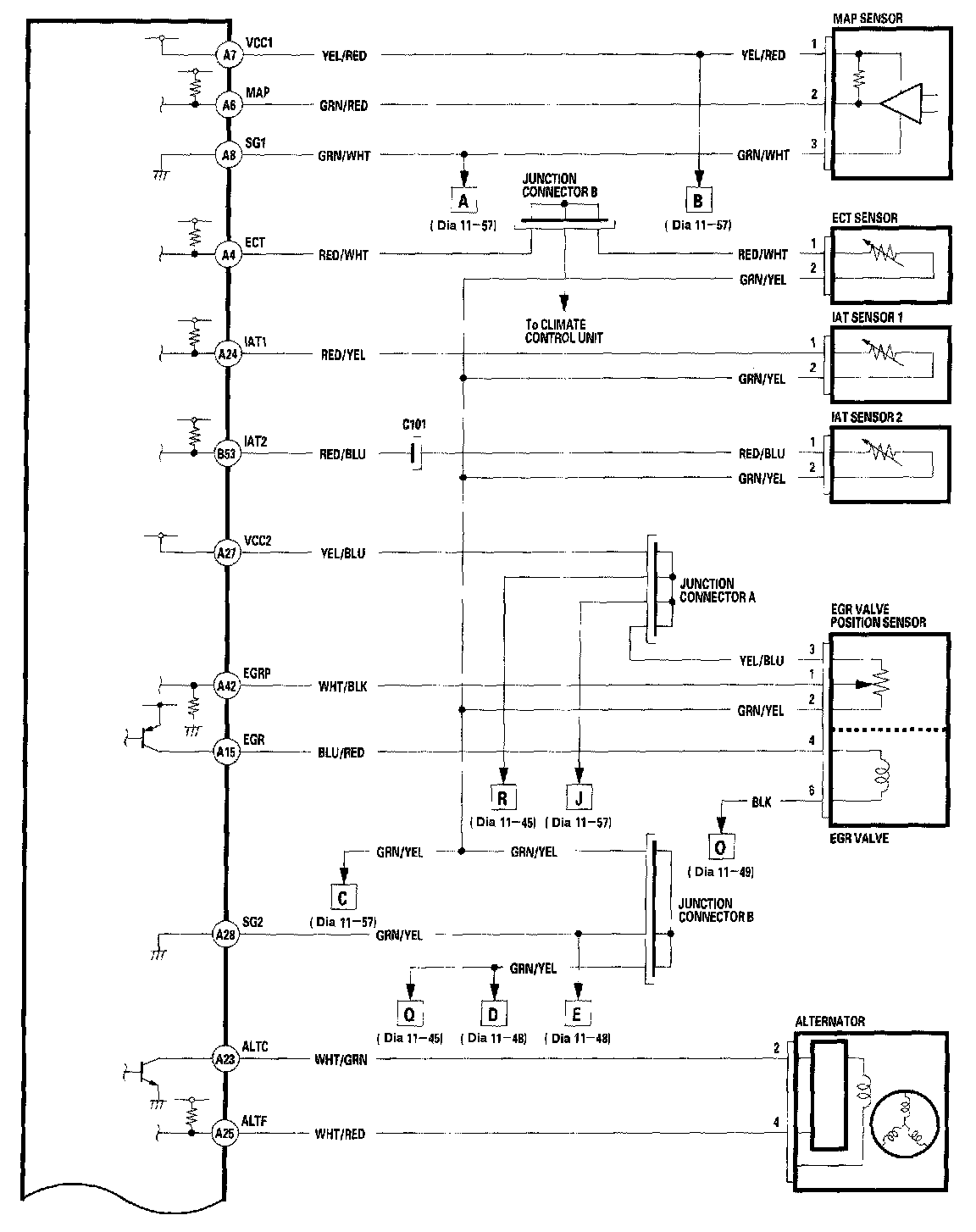

PCM Circuit Diagram 11-50:

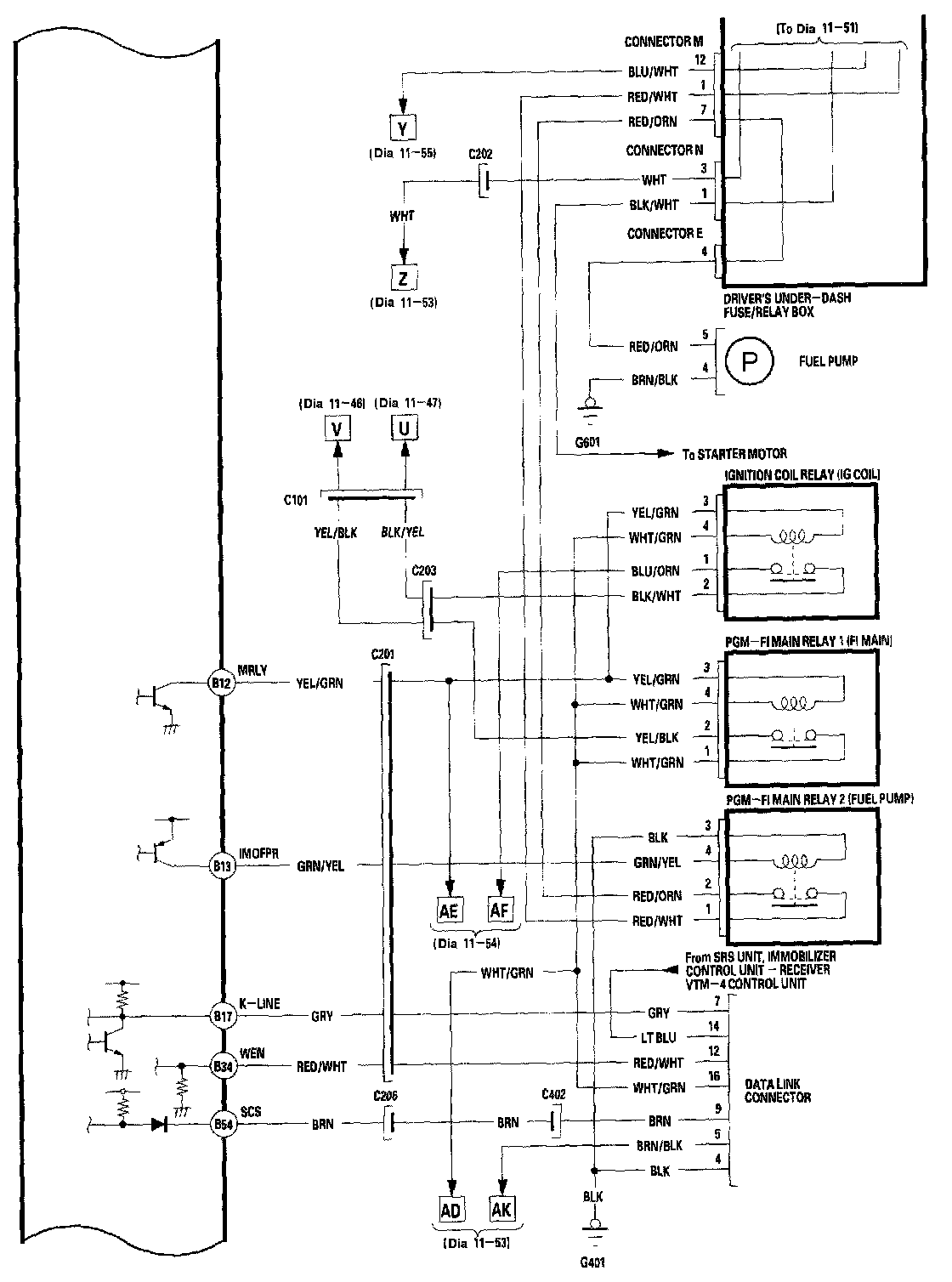

PCM Circuit Diagram 11-51:

PCM Circuit Diagram 11-52:

PCM Circuit Diagram 11-53:

PCM Circuit Diagram 11-54:

PCM Circuit Diagram 11-55:

PCM Circuit Diagram 11-56:

PCM Circuit Diagram 11-57:

PCM Circuit Diagram 11-58:
