Fuel Tank Pressure Sensor: Locations

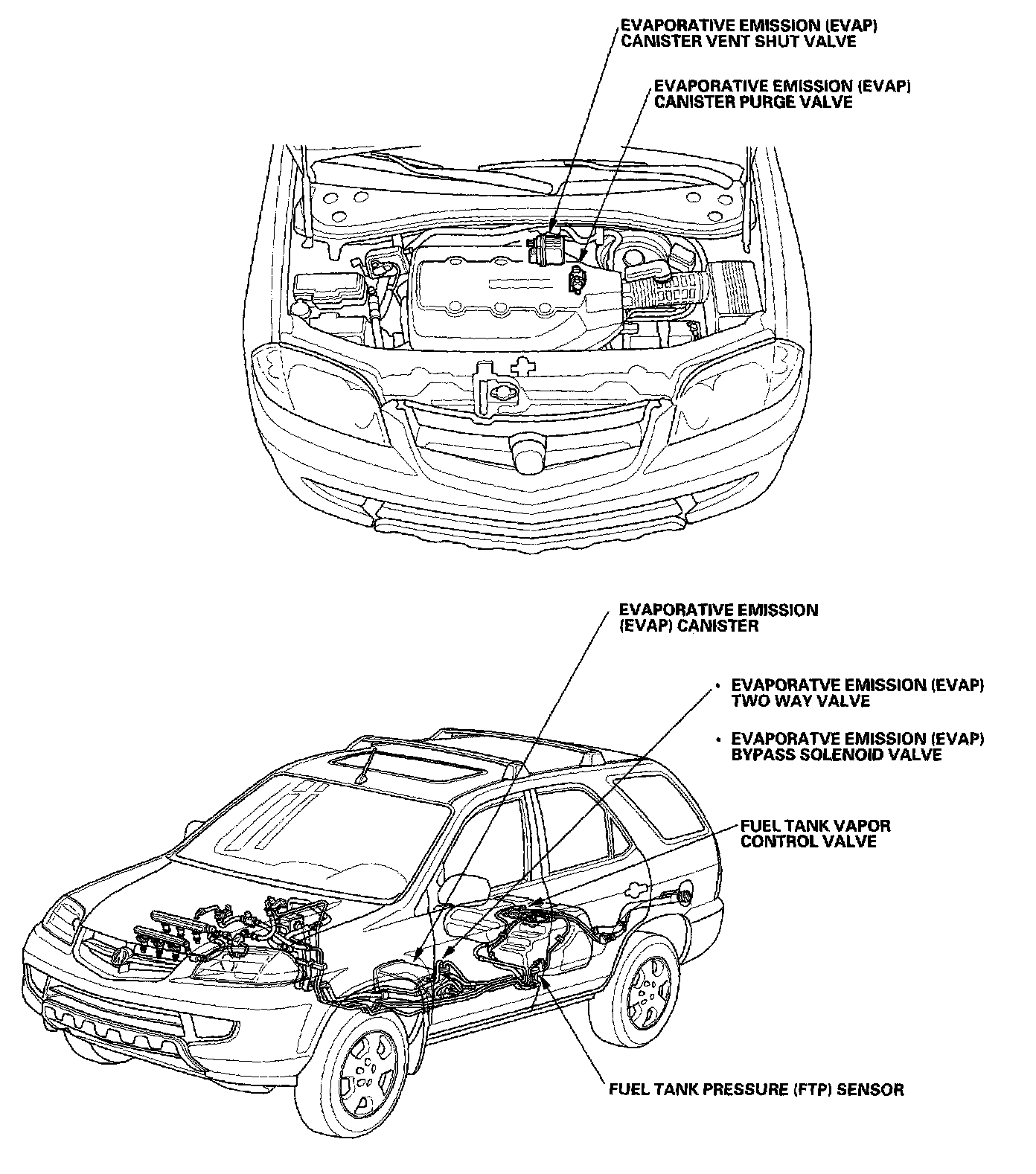

EVAP System - Component Location Index:

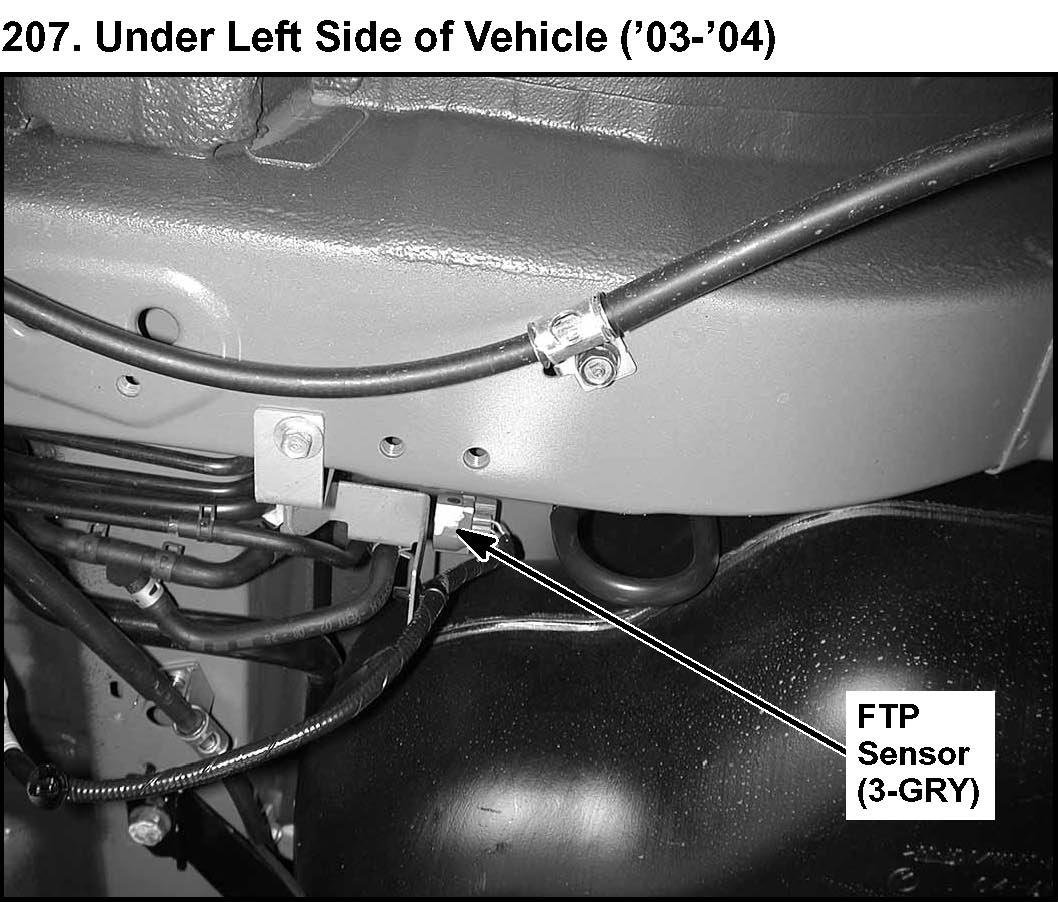

207. Under Left Side of Vehicle:

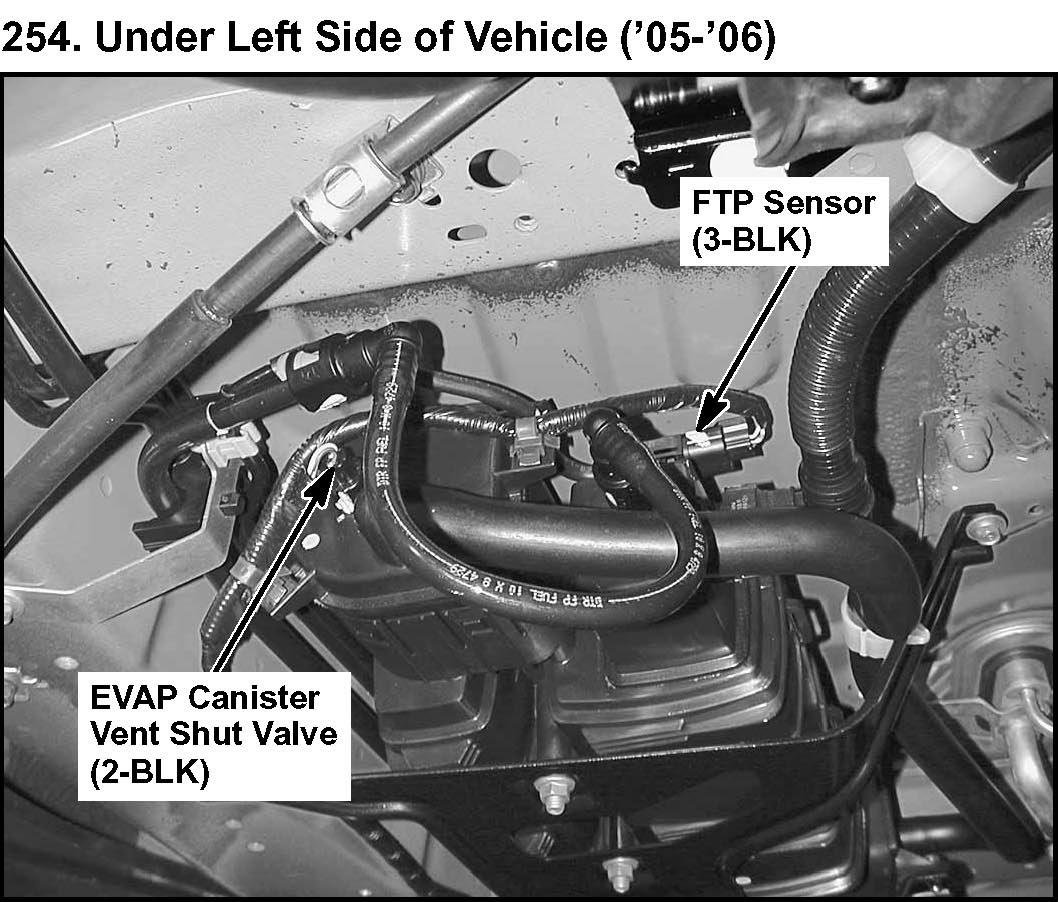

254. Under Left Side of Vehicle:
