July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

System Diagram

84. Navigation Service Check Connector:

206. Navigation Microphone:

237. Rearview Camera (Navigation):

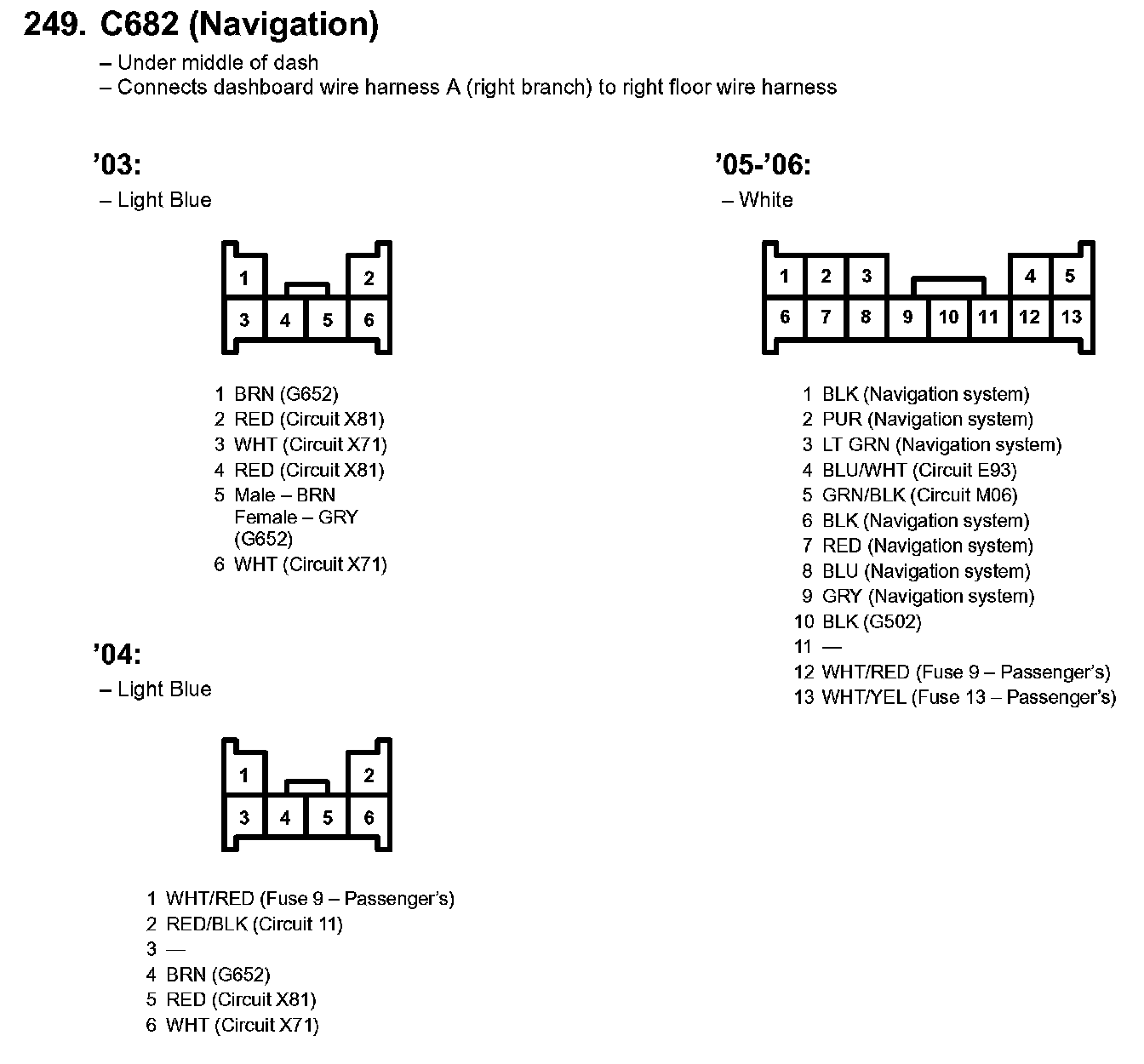

249. C682 (Navigation):

301. C685 (Junction Connector) ('03: Navigation):

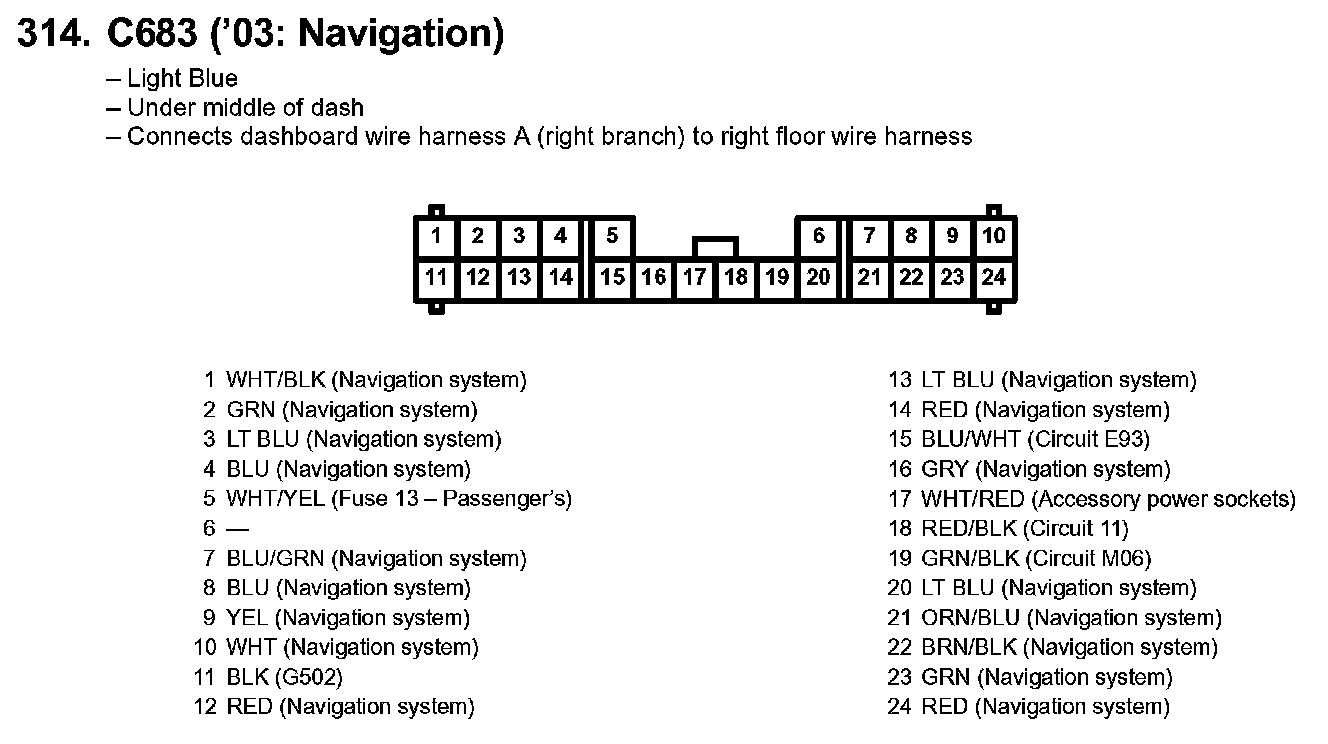

314. C683 ('03: Navigation):

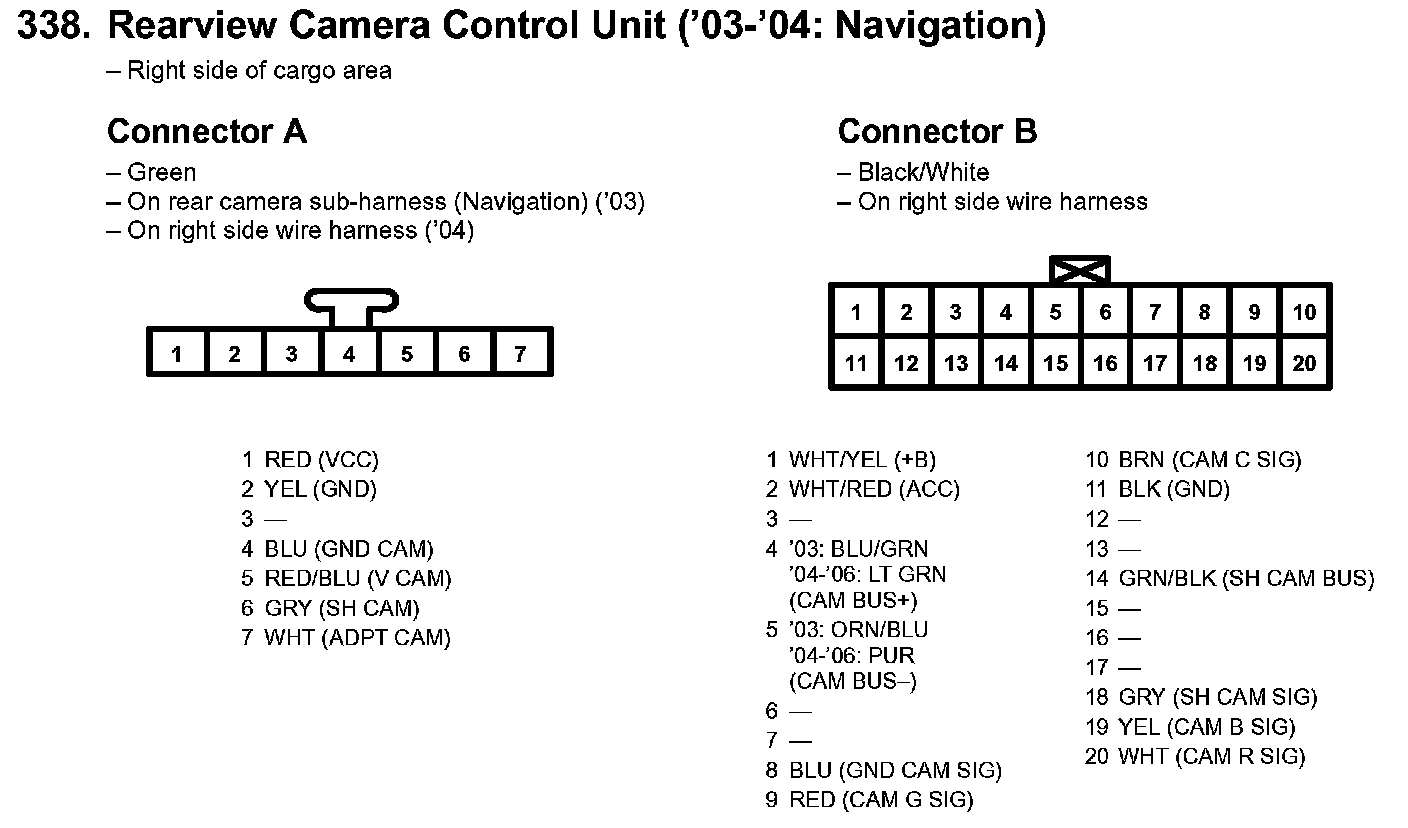

338. Rearview Camera Control Unit ('03-'04: Navigation):
