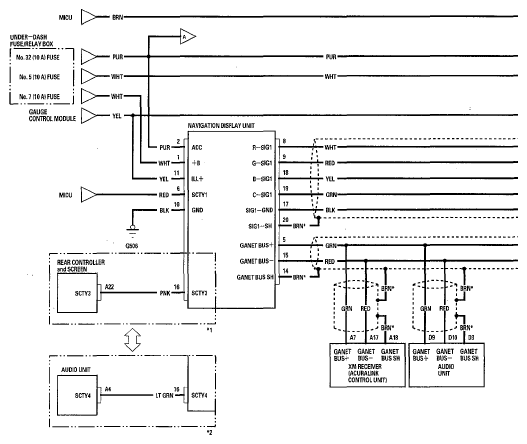

Fig 1: Navigation System Circuit Diagram - With Acuralink (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

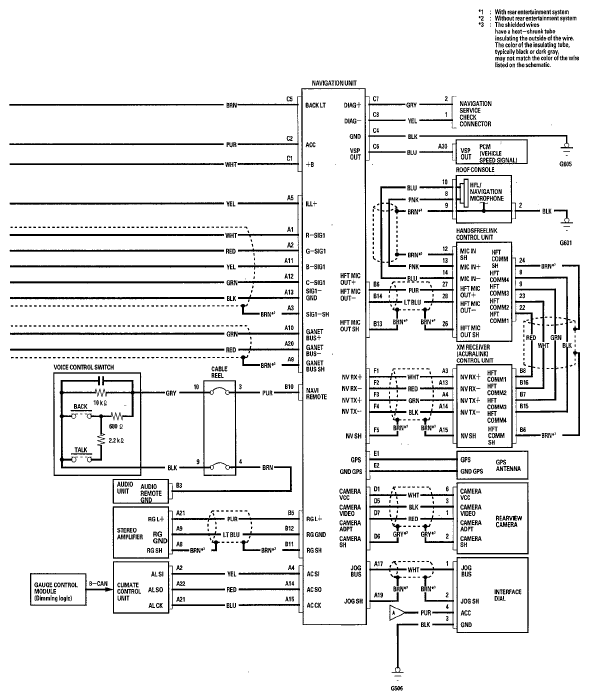

Fig 2: Navigation System Circuit Diagram - With Acuralink (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
