Driver's Switch ('04-06 Models With DPMS)

  1. Remove the power seat adjustment switch knobs and recline cover from the driver's seat, then remove the power seat switch (see '04-06 MODELS ).
  2. Disconnect the 12P connector from the power seat adjustment switch (A).

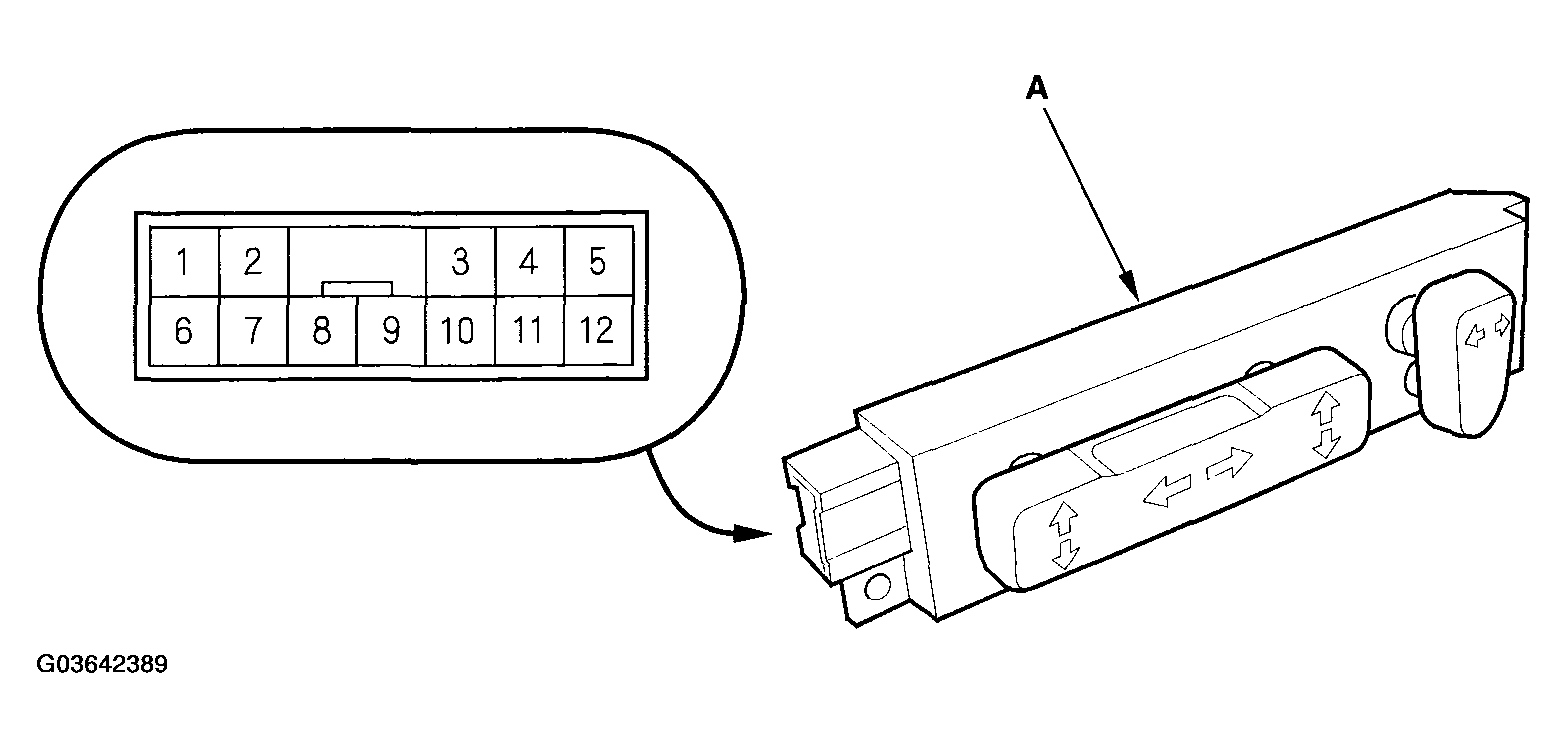

    Fig 1: Disconnecting 12P Connector From Power Seat Adjustment Switch
    G03642389Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Reinstall the adjustment switch knobs to the switch.
  4. Check for continuity between the terminals in each switch position according to Fig 2 .

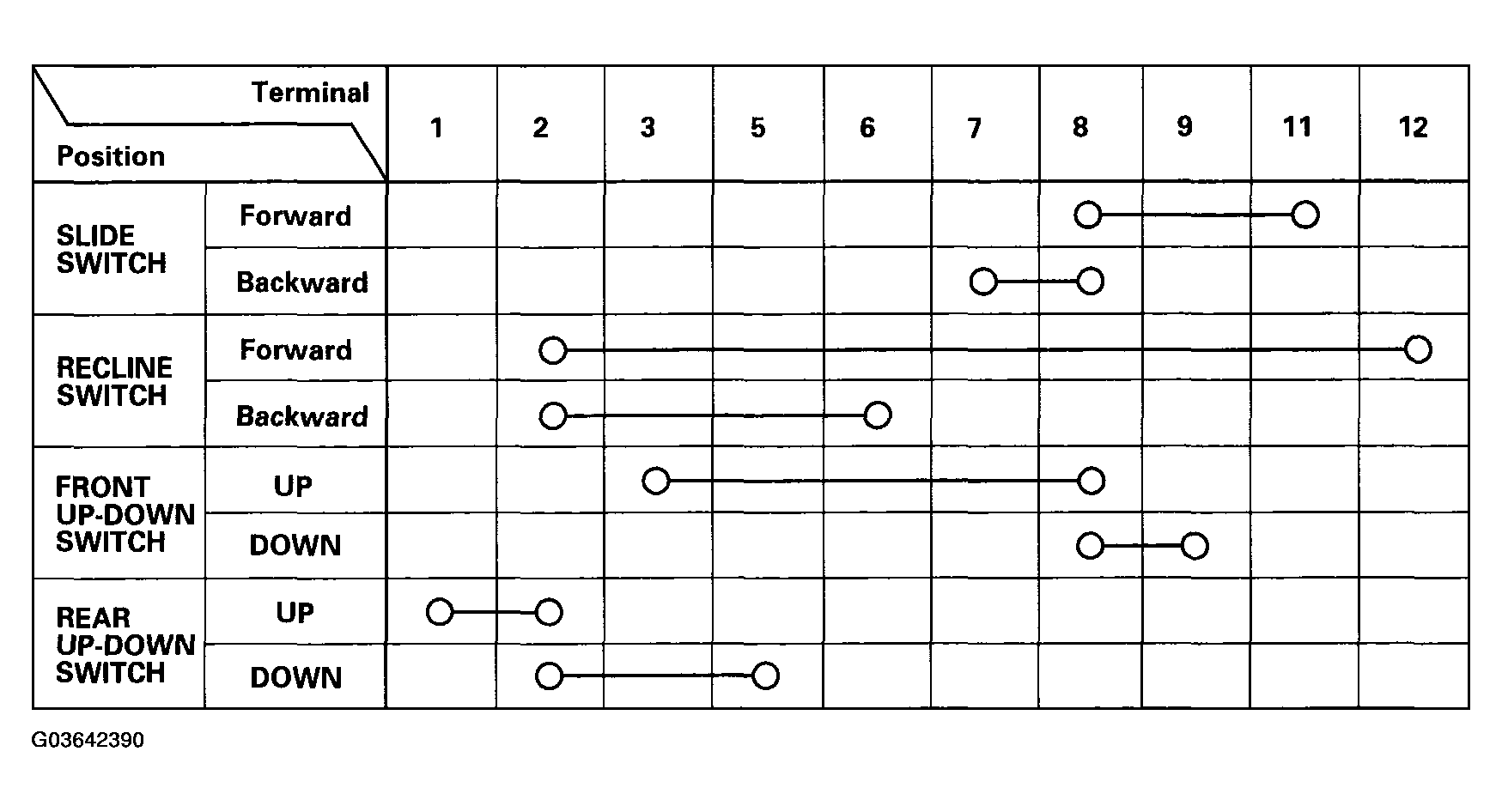

    Fig 2: Checking Continuity Between Terminals In Each Switch Position Chart
    G03642390Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. If the continuity is not as specified, replace the switch.
