DTC 64: Sensor Power Source

For DTC testing flow chart, see Fig 1 .

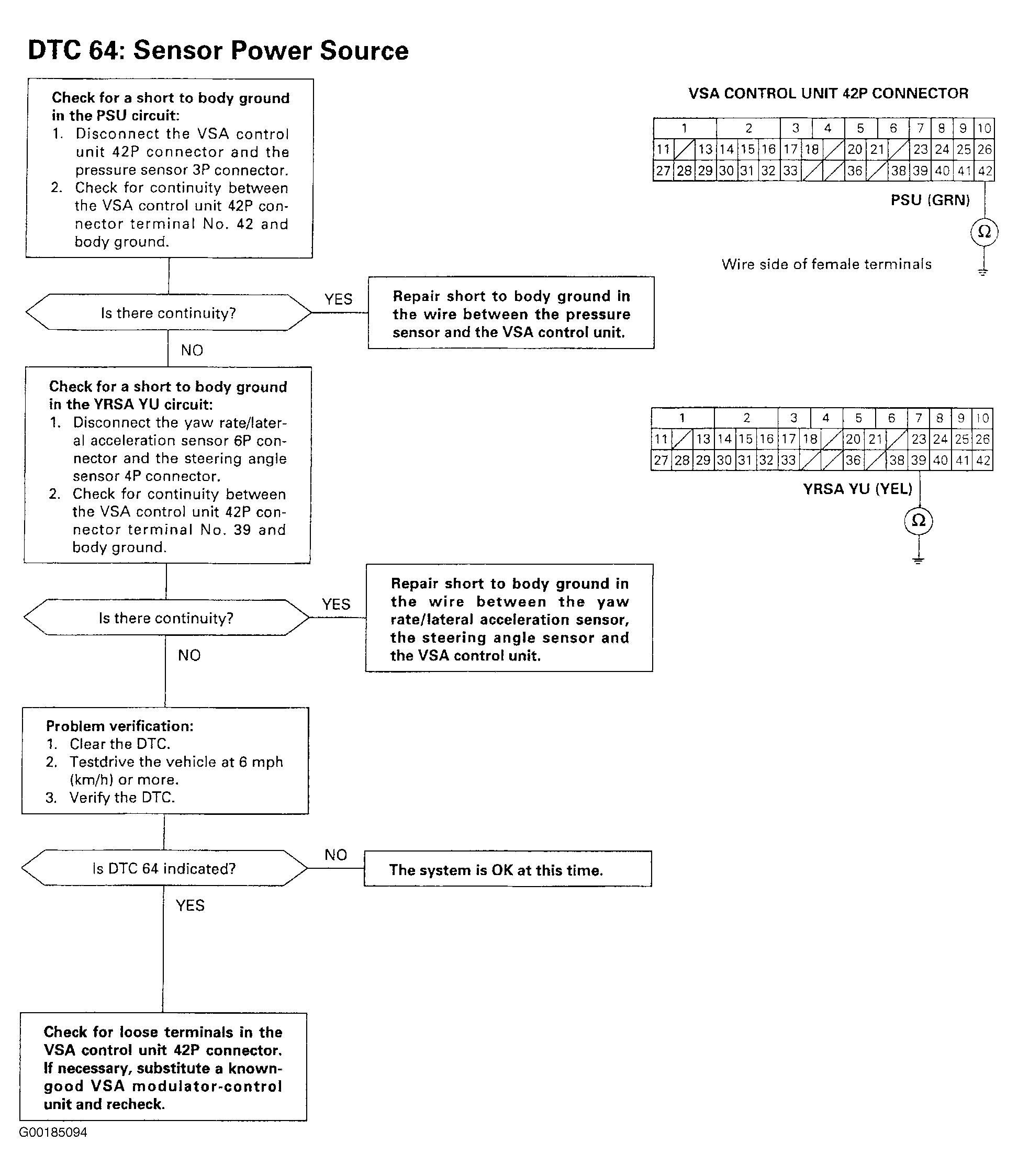

Fig 1: DTC 64: Sensor Power Source Testing Flow Char
G00185094Courtesy of AMERICAN HONDA MOTOR CO., INC.
