Component Location Index

Starting System - Component Location Index:

Charging System - Component Location Index:

Relay And Control Unit Locations - Engine Compartment:

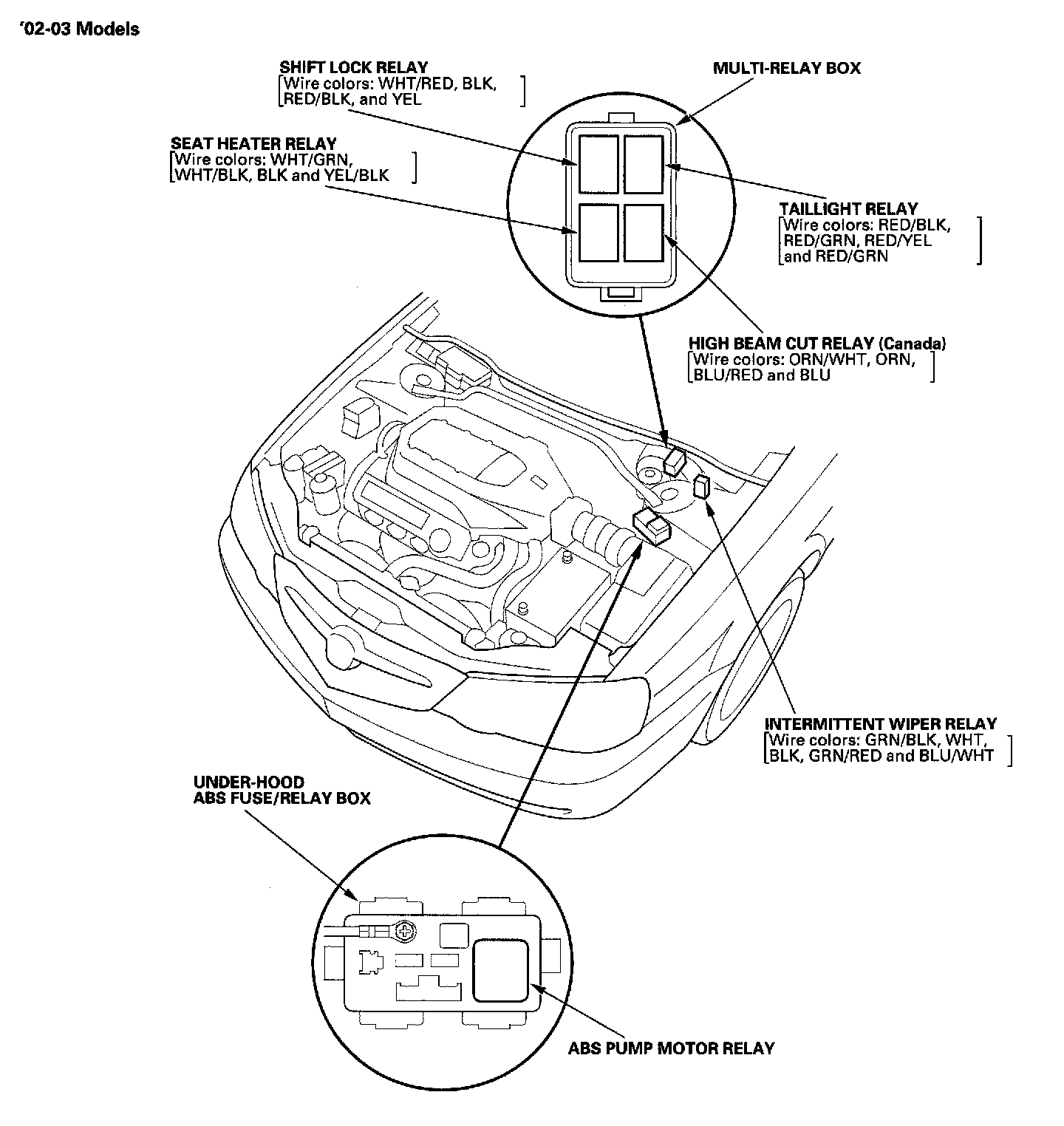

Relay And Control Unit Locations - Engine Compartment:

Relay And Control Unit Locations - Dashboard:

Relay And Control Unit Locations - Dashboard:

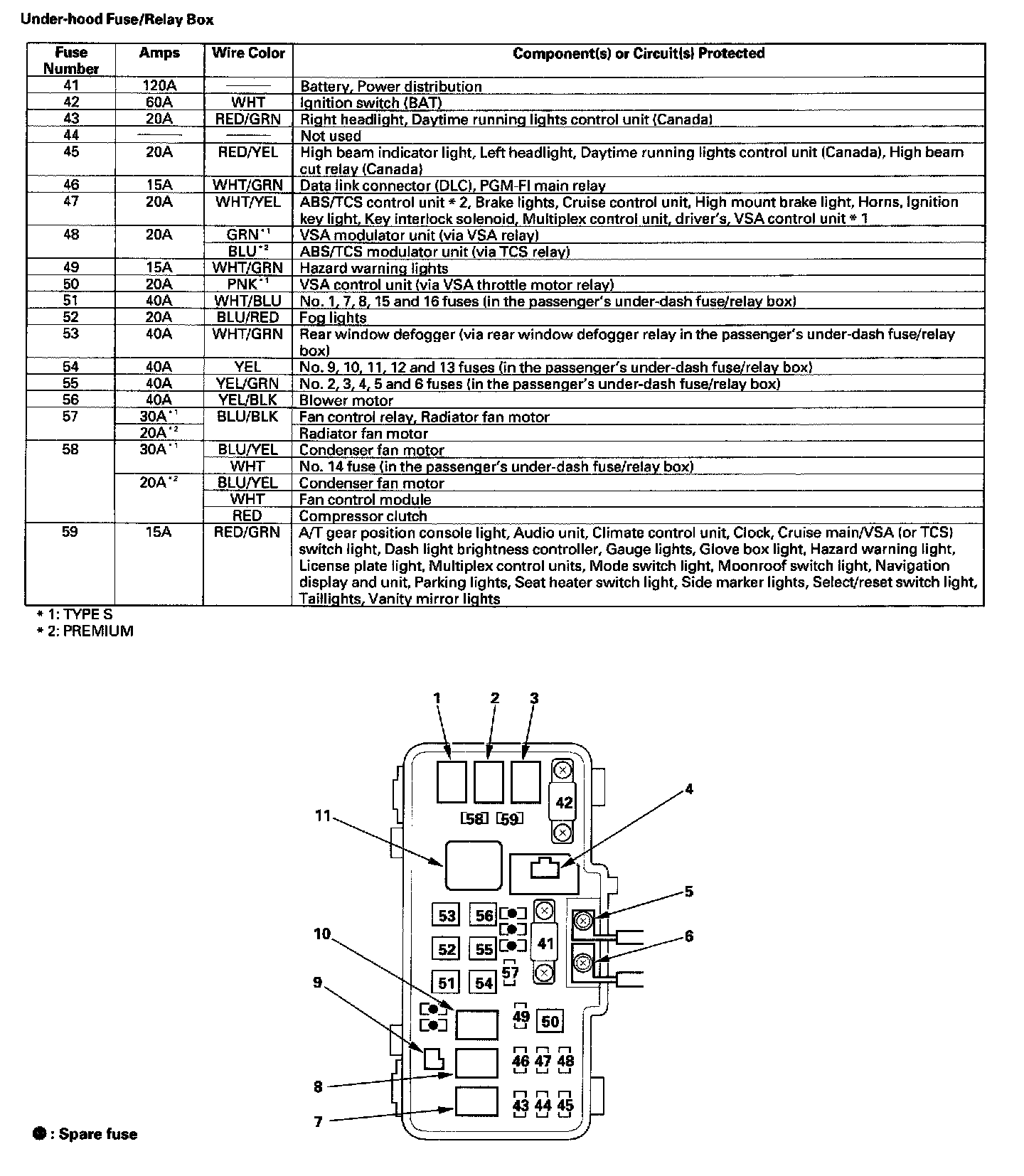

Under-hood Fuse/Relay Box:

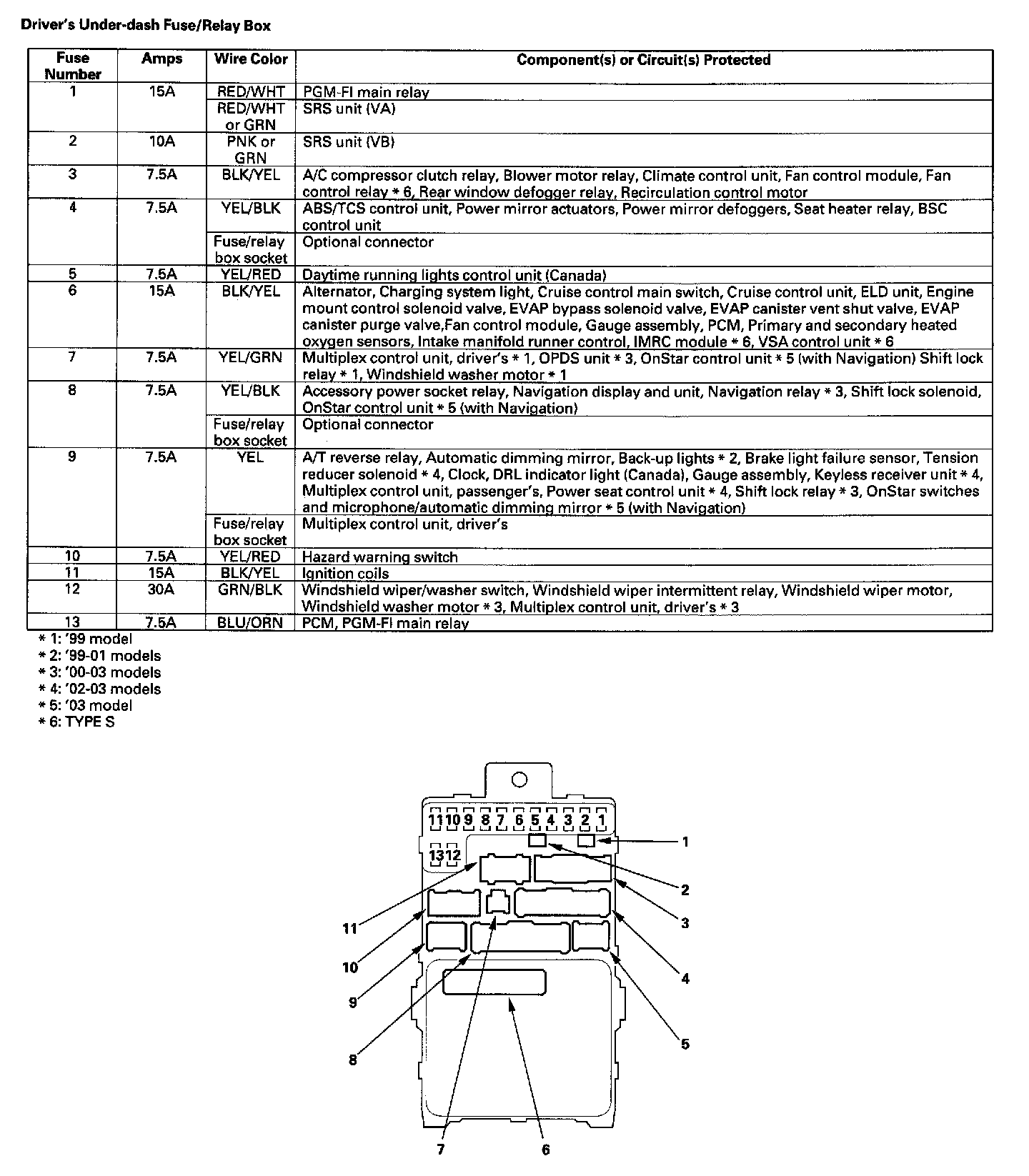

Driver's Under-dash Fuse/Relay Box:

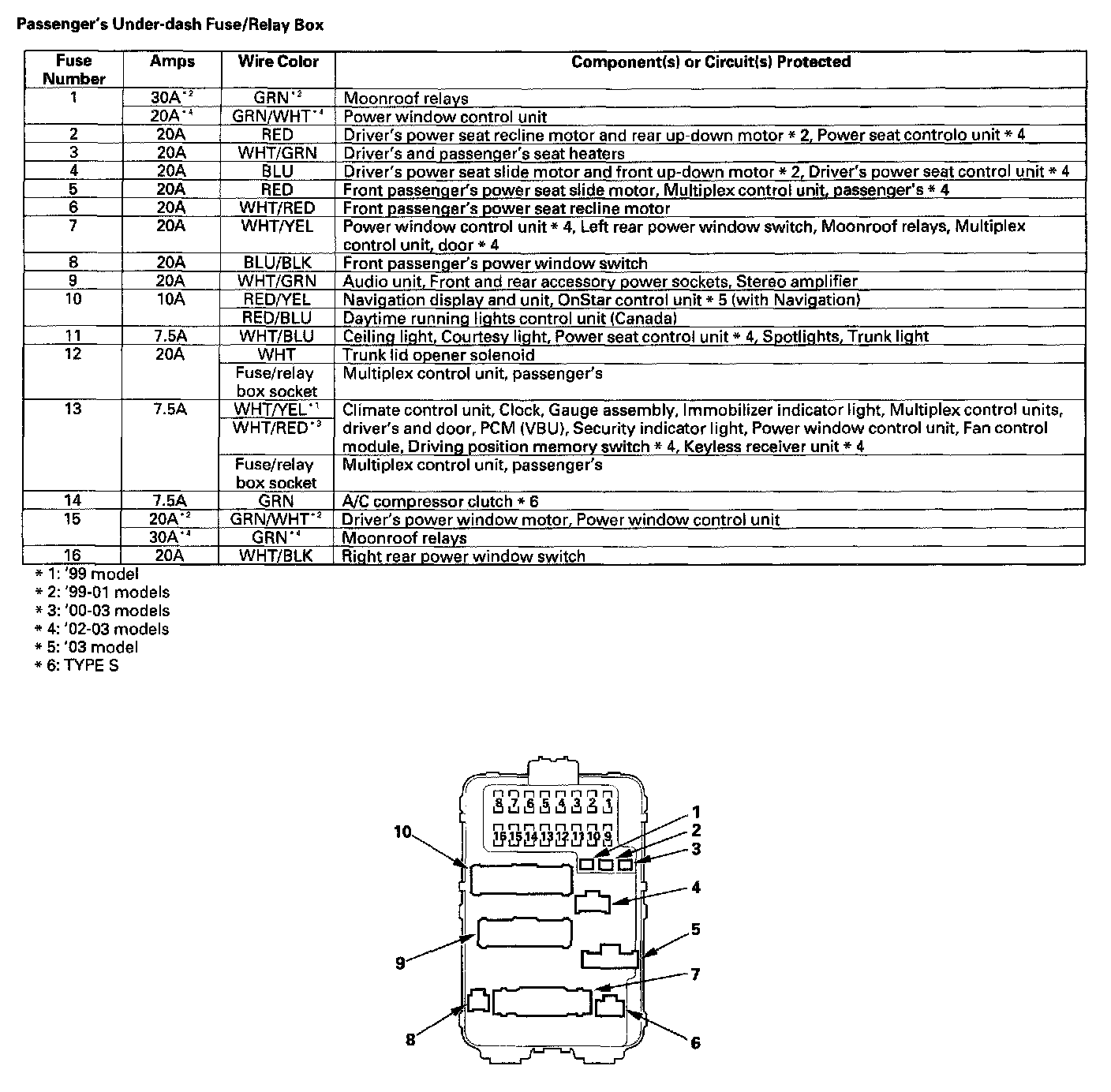

Passenger's Under-dash Fuse/Relay Box:

Under-hood ABS Fuse/Relay Box (02-03 Models):

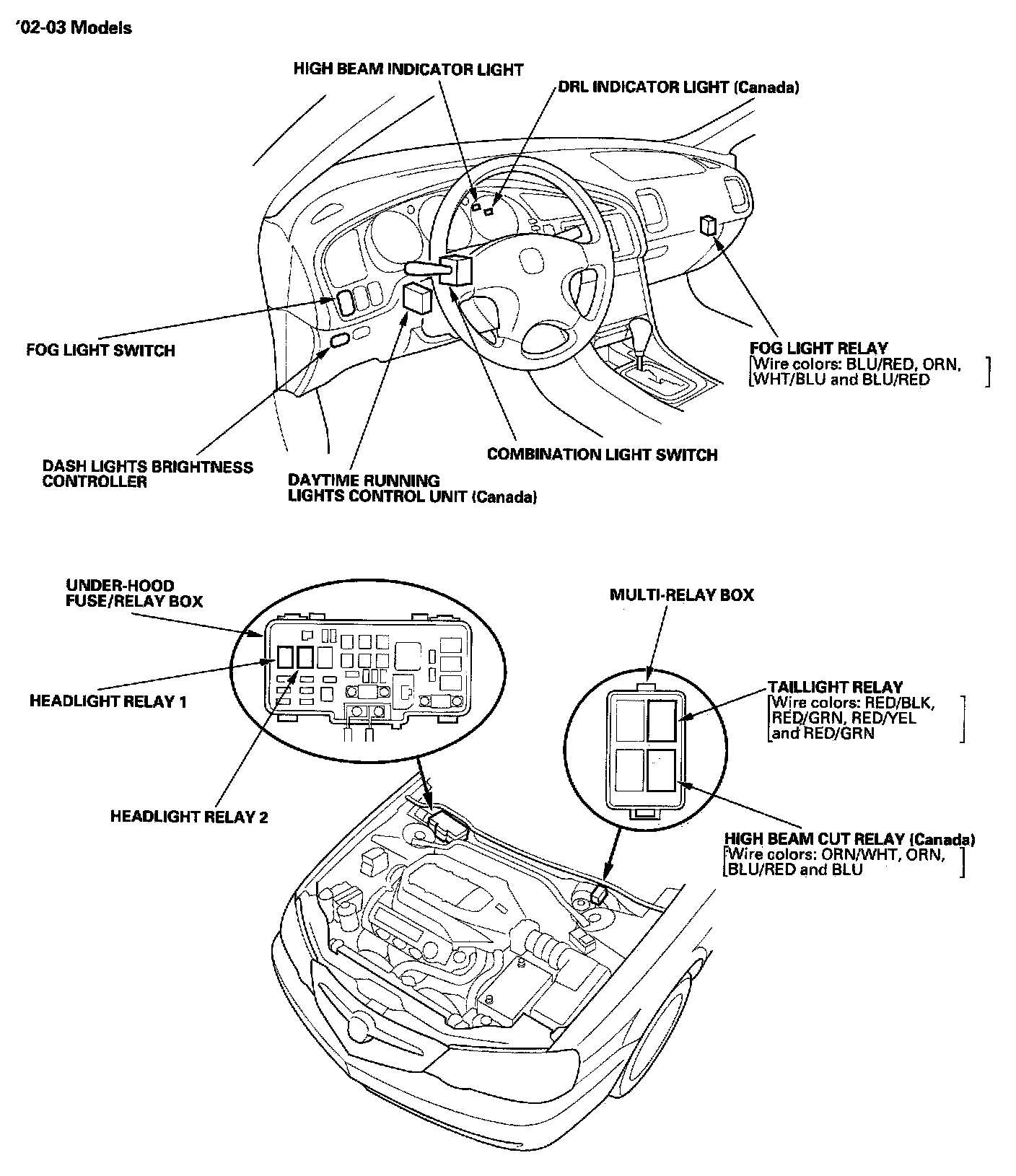

Exterior Lights Component Location Index:

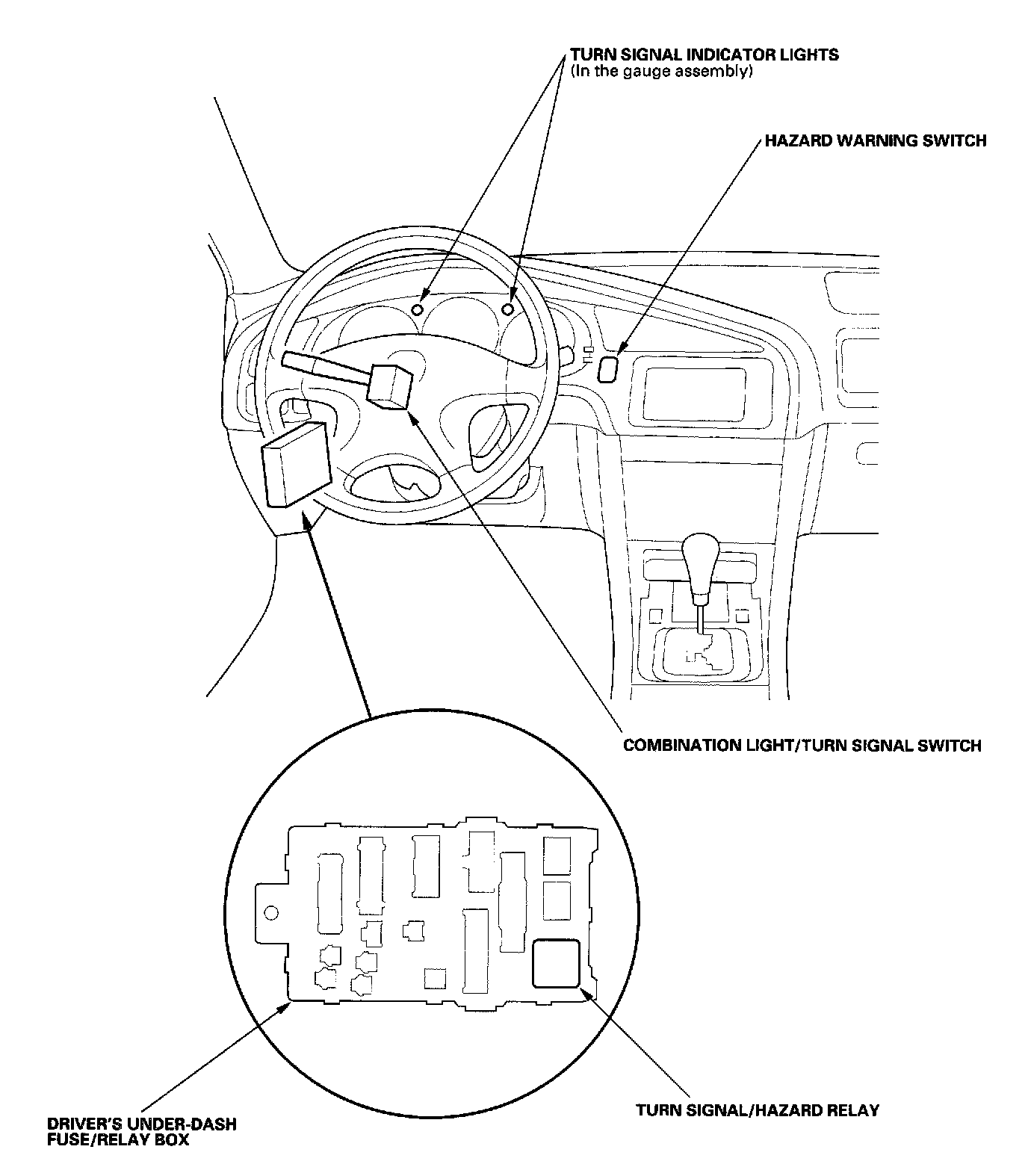

Turn Signal/Hazard Flasher - Component Location Index:

Horn - Component Location Index:

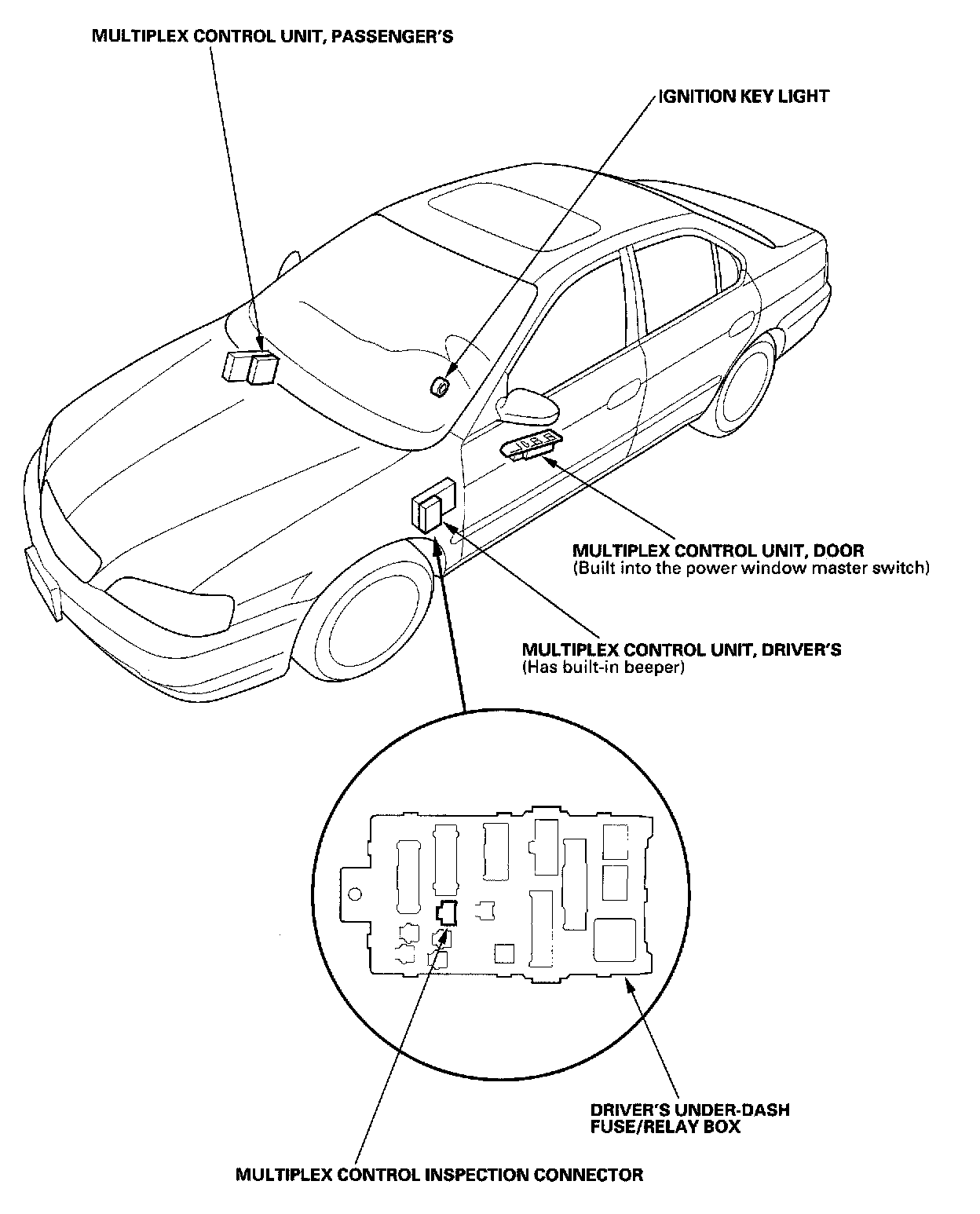

Multiplex Control System - Component Location Index:

Power Windows - Component Location Index:

Keyless Entry/Security Alarm System - Component Location Index:

SRS - Component Location Index:
