ECM/PCM Circuit Diagram

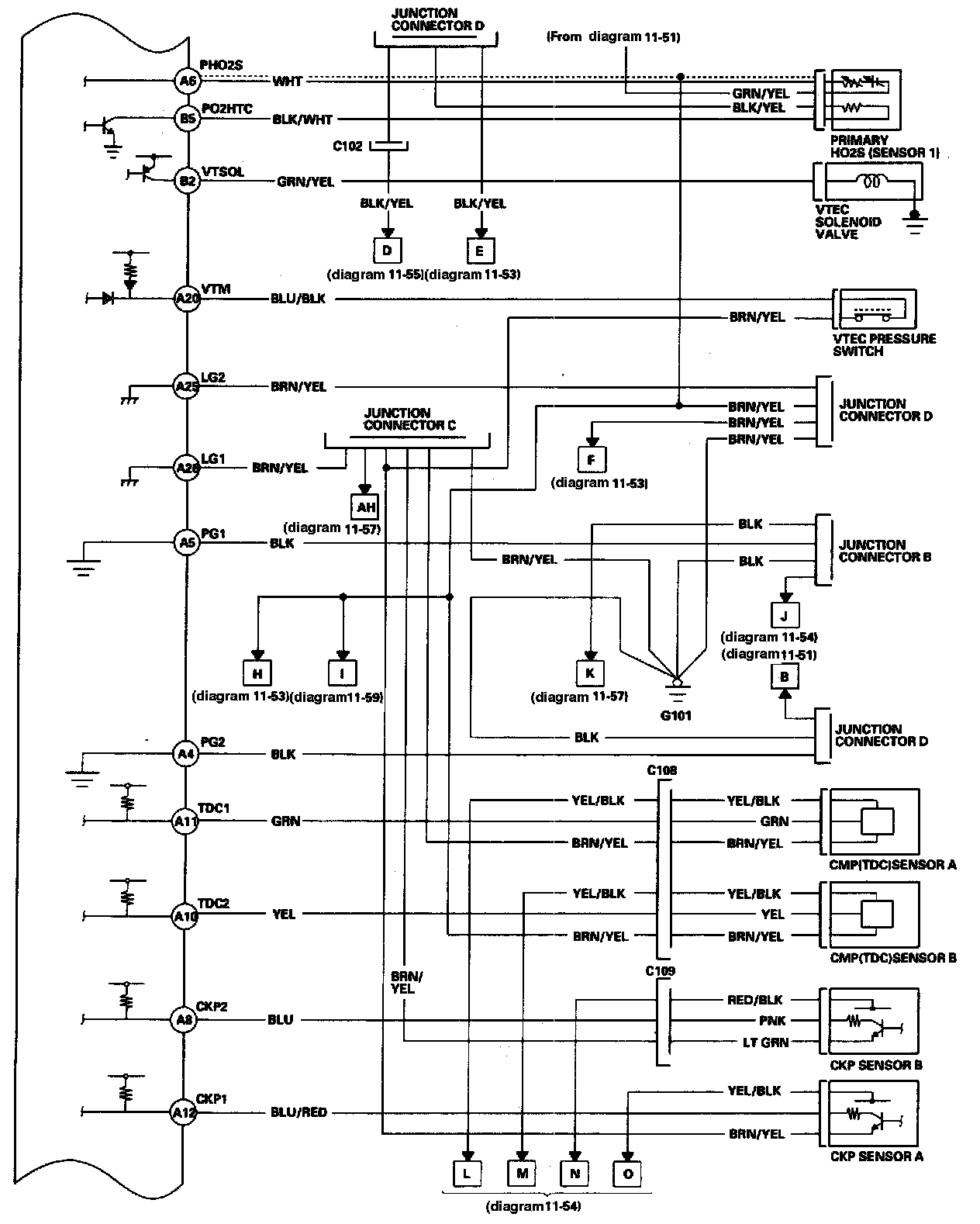

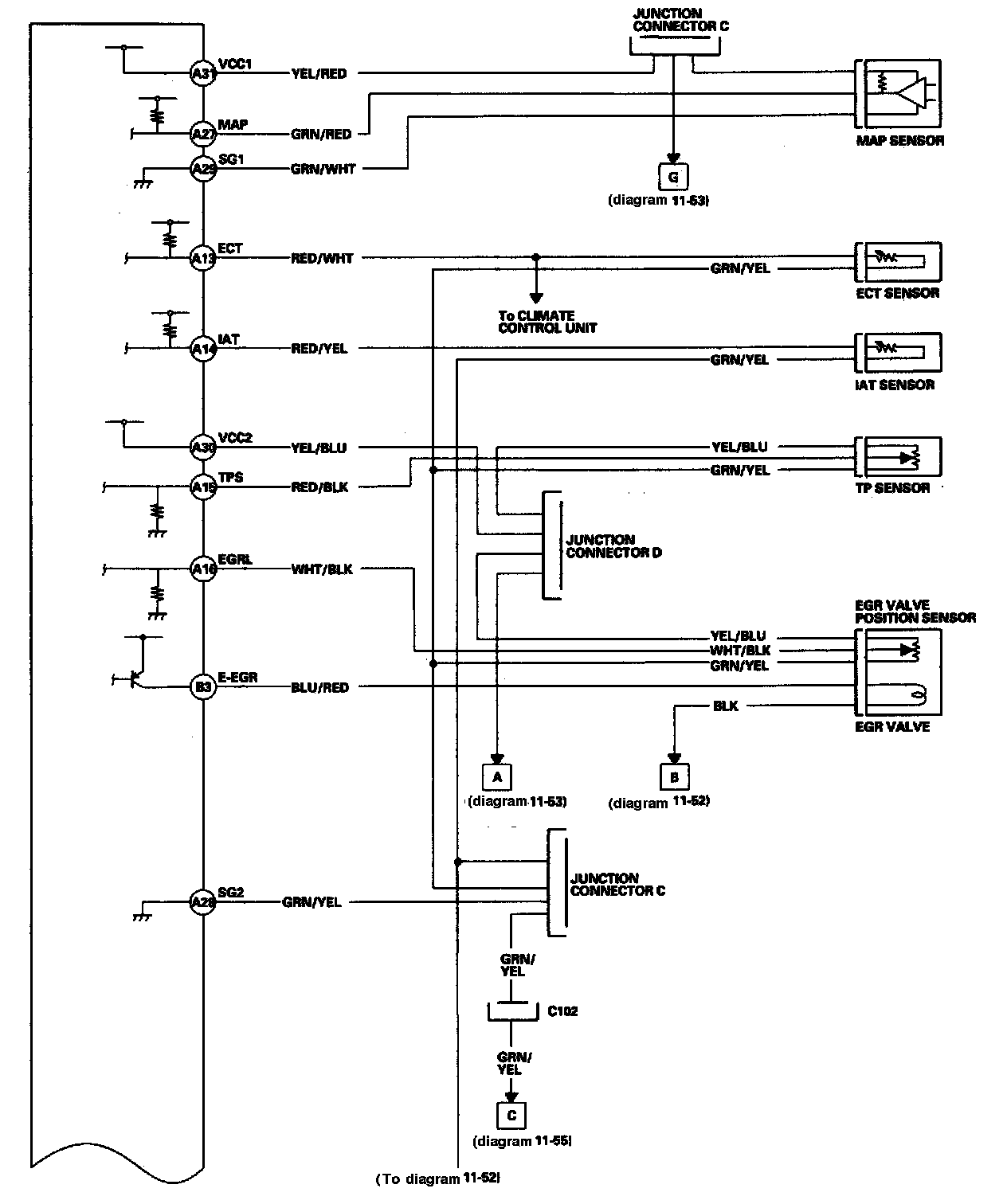

ECM/PCM Circuit Diagram 11-39:

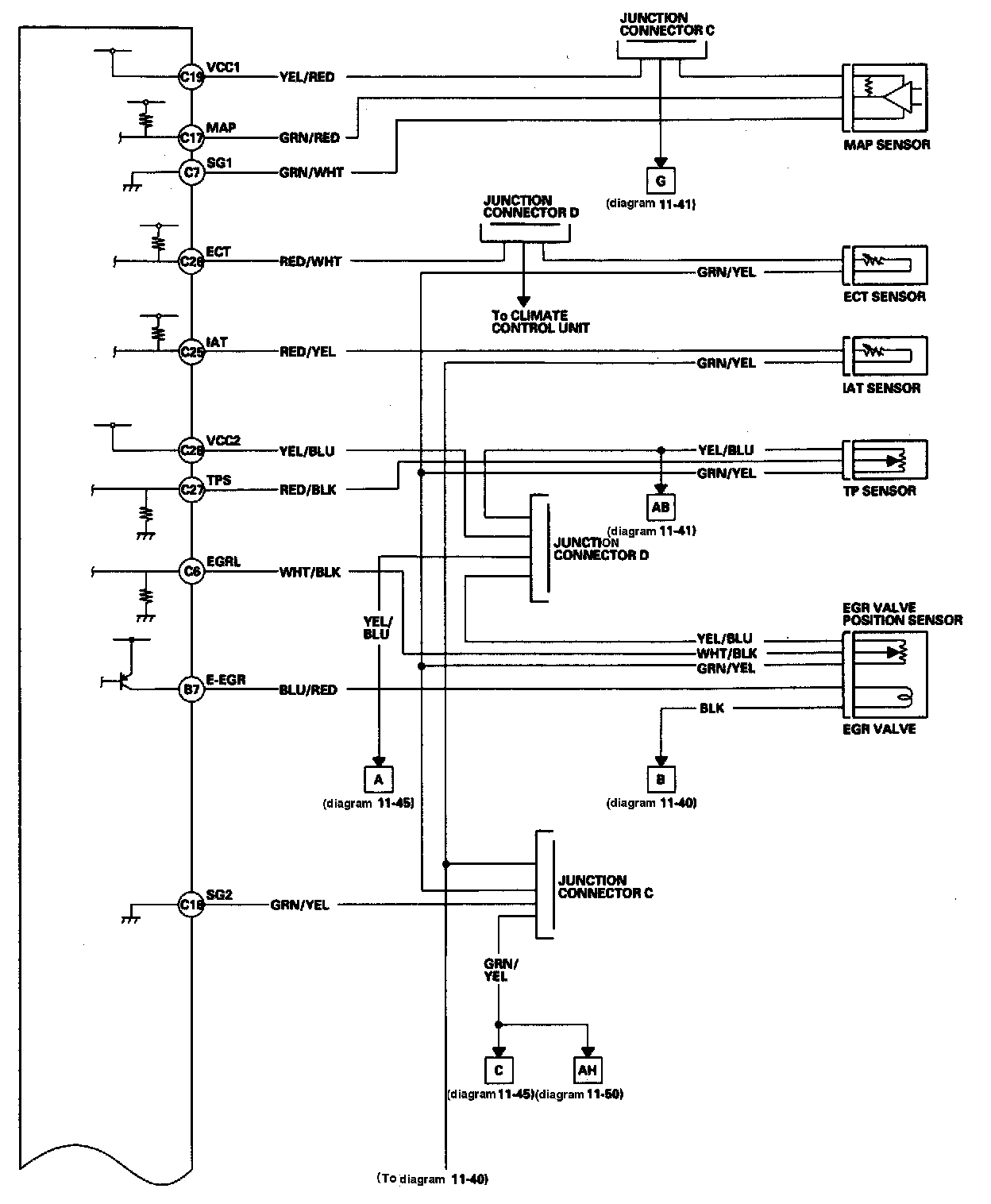

ECM/PCM Circuit Diagram 11-40:

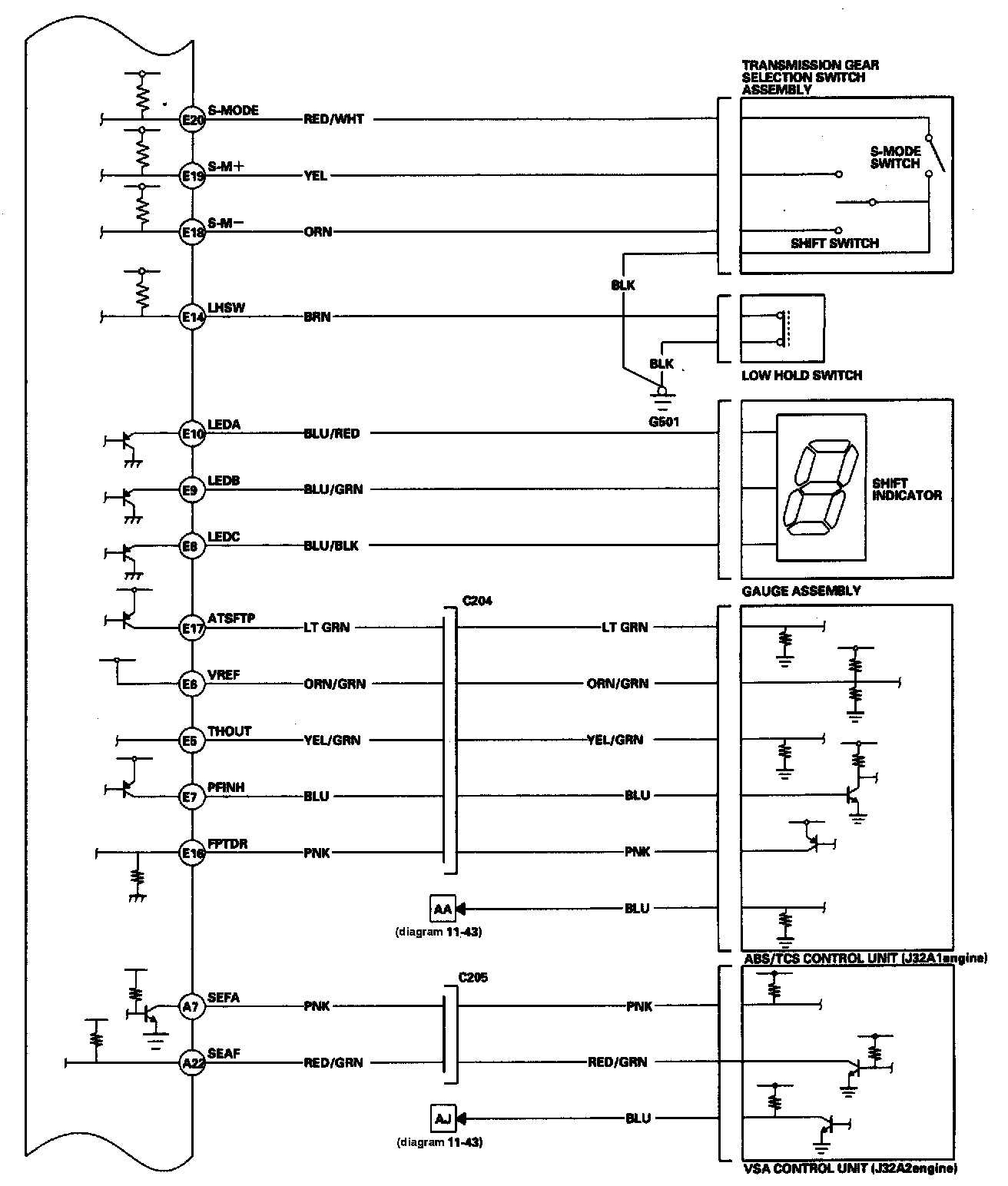

ECM/PCM Circuit Diagram 11-41:

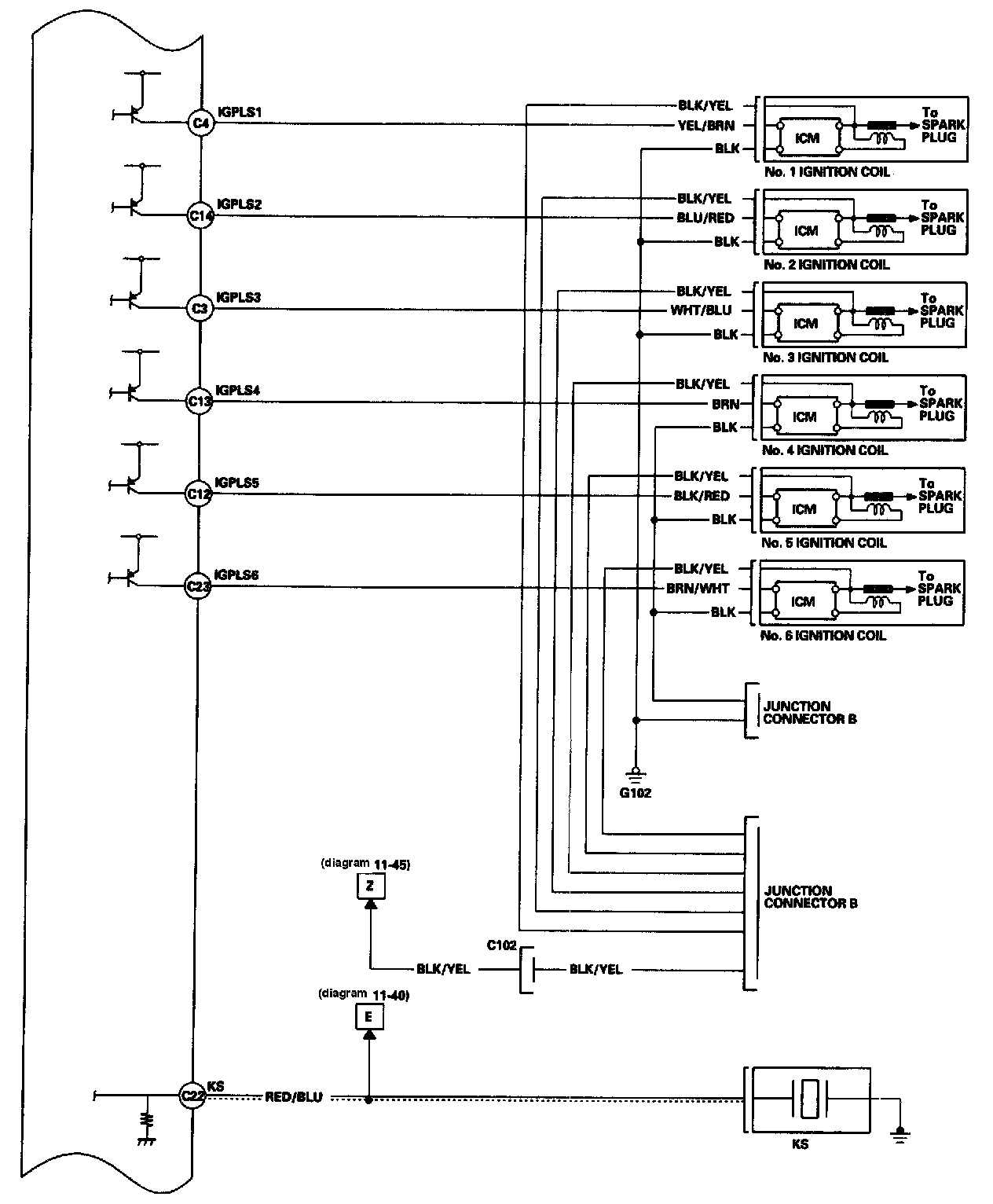

ECM/PCM Circuit Diagram 11-42:

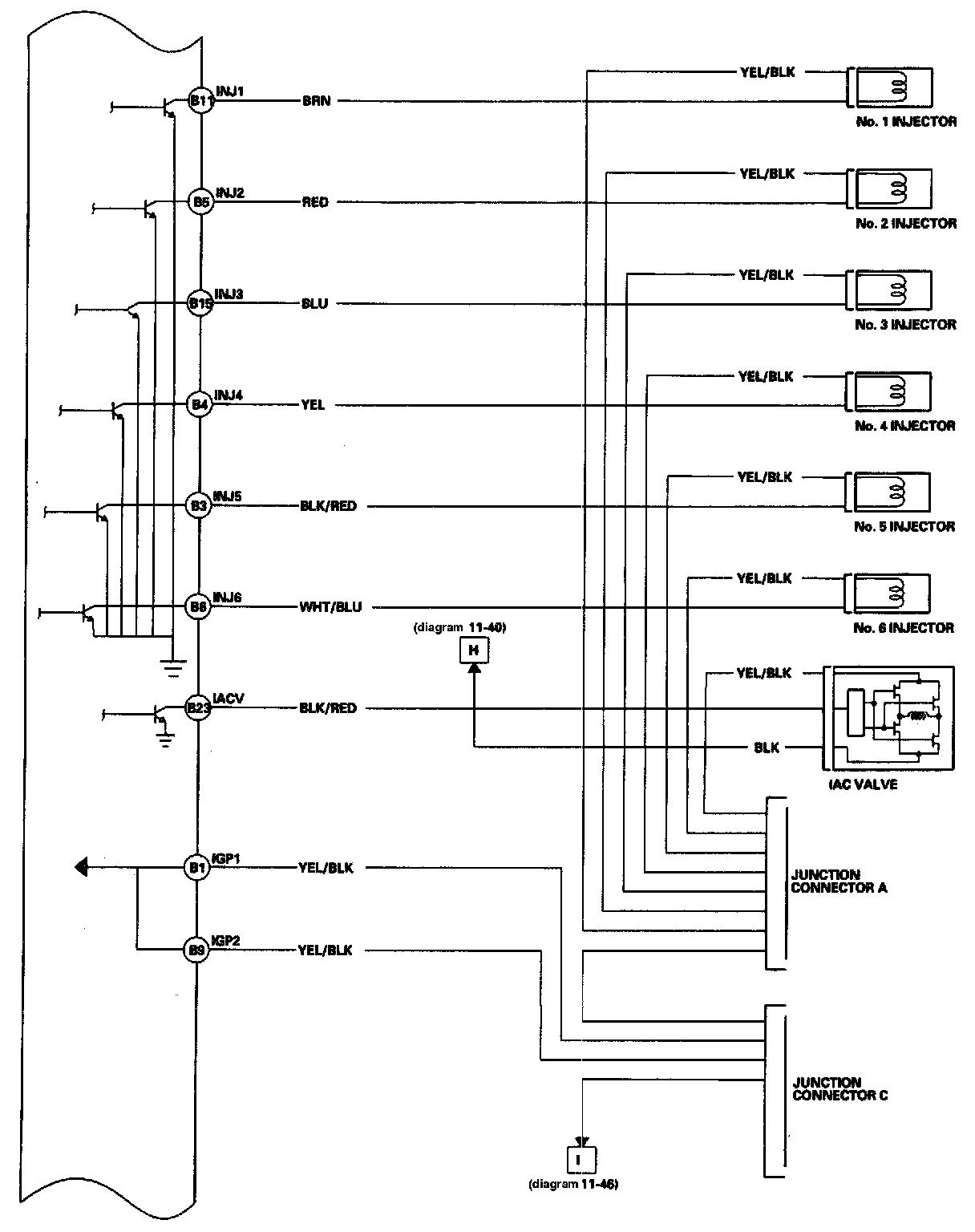

ECM/PCM Circuit Diagram 11-43:

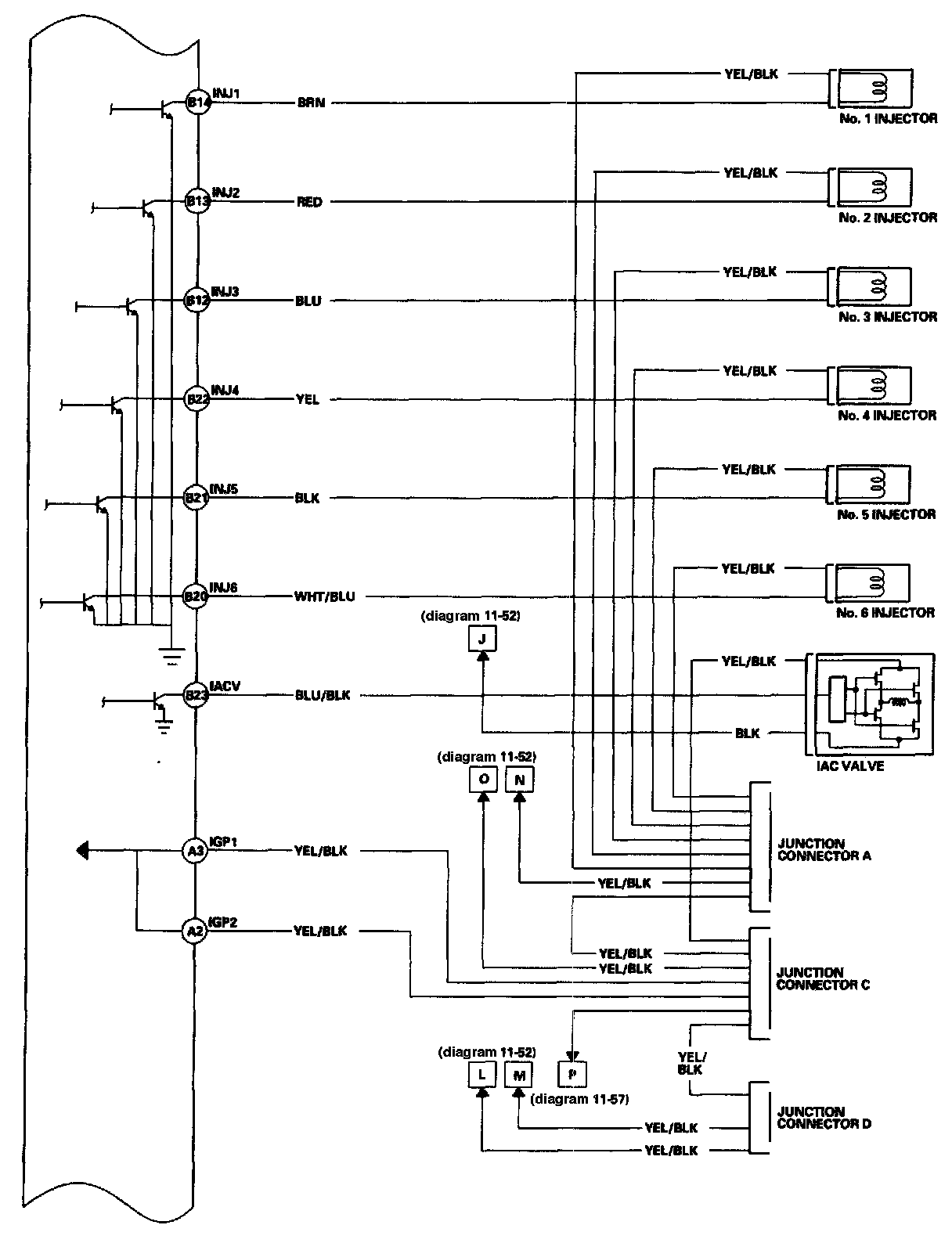

ECM/PCM Circuit Diagram 11-44:

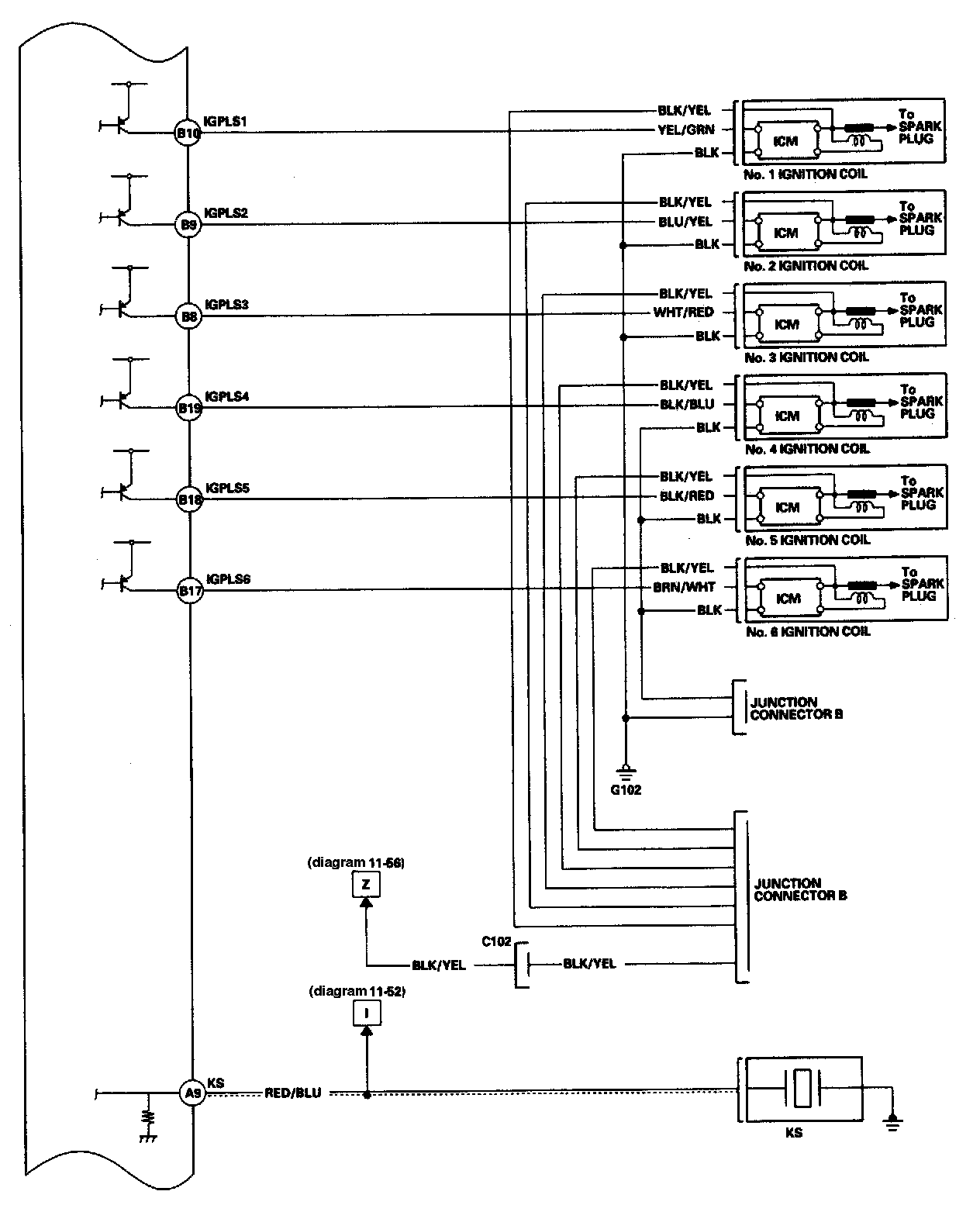

ECM/PCM Circuit Diagram 11-45:

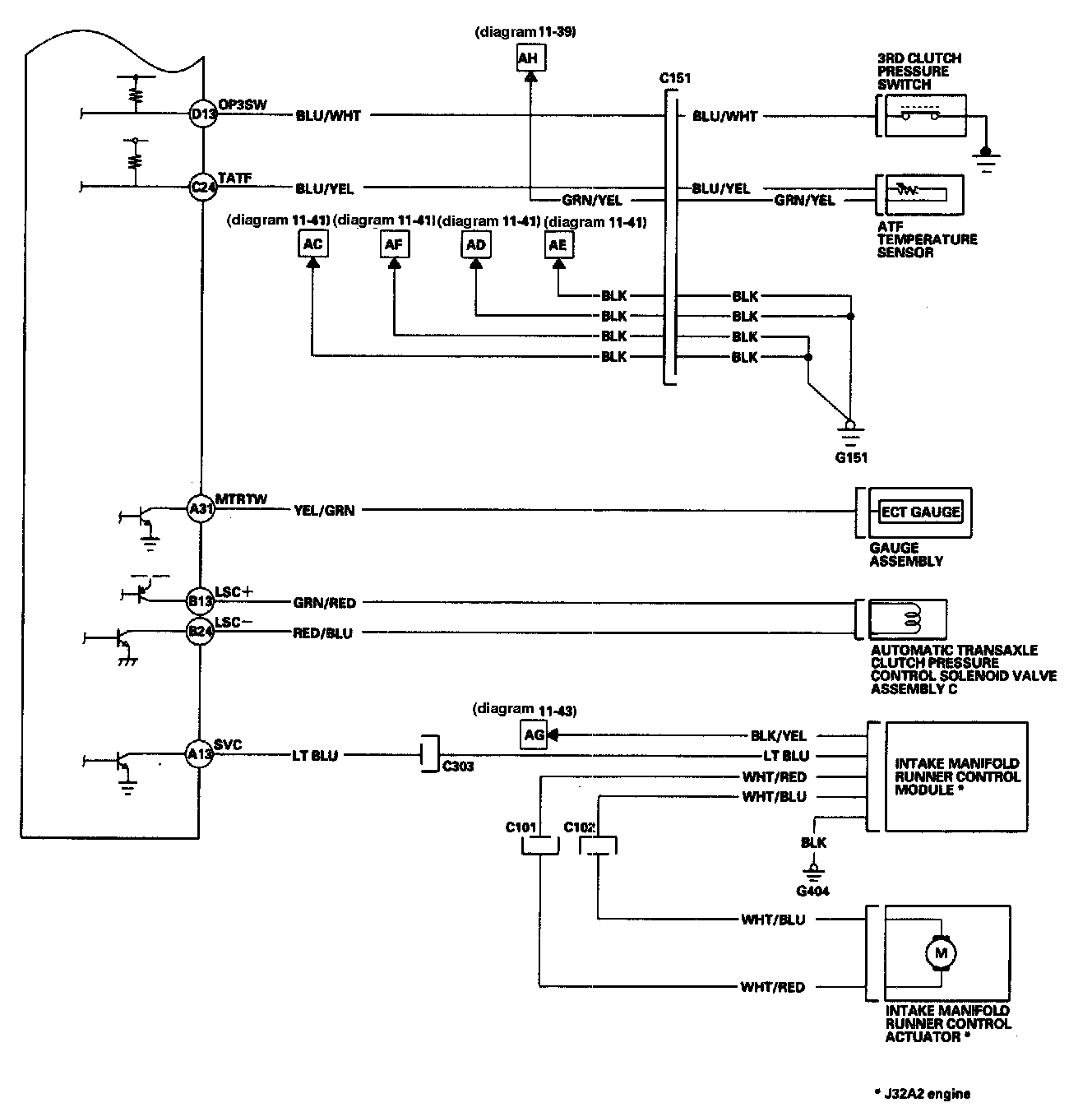

ECM/PCM Circuit Diagram 11-46:

ECM/PCM Circuit Diagram 11-47:

ECM/PCM Circuit Diagram 11-48:

ECM/PCM Circuit Diagram 11-49:

ECM/PCM Circuit Diagram 11-50:

ECM/PCM Circuit Diagram 11-51:

ECM/PCM Circuit Diagram 11-52:

ECM/PCM Circuit Diagram 11-53:

ECM/PCM Circuit Diagram 11-54:

ECM/PCM Circuit Diagram 11-55:

ECM/PCM Circuit Diagram 11-56:

ECM/PCM Circuit Diagram 11-57:

ECM/PCM Circuit Diagram 11-58:

ECM/PCM Circuit Diagram 11-59:

ECM/PCM Circuit Diagram 11-60:
