Traction Control Relay

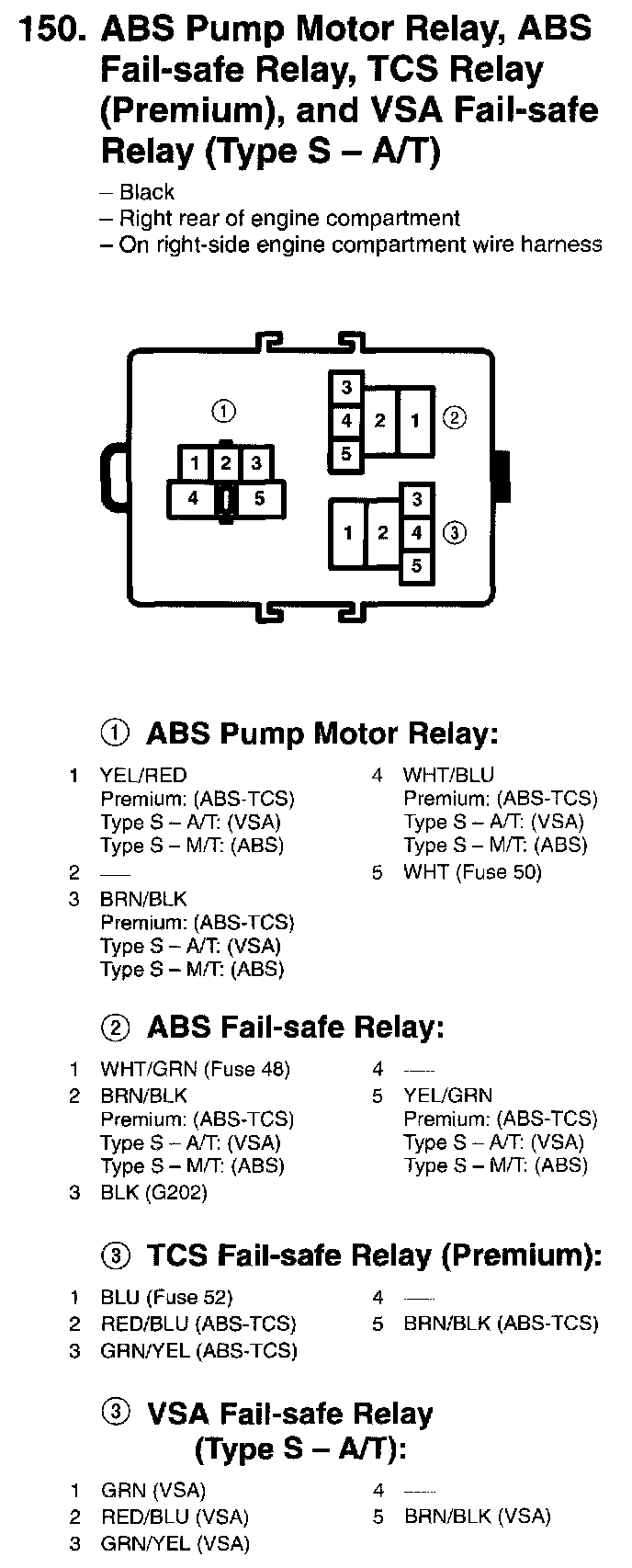

ABS Pump Motor Relay, ABS Failsafe Relay, TCS Relay (Premium), And VSA Failsafe Relay (Type S - A/T):



High Beam Cut Relay(Canada) And VSA-TCS Control Valve Actuator Relay (Type S - A/T):
