Brush Holder Test: Inspection

  1. Using an ohmmeter, check continuity between positive brush (A) and negative brush (B). If there is continuity, replace the brush holder assembly. See Fig 1.
  2. Measure brush length. If it is shorter than the service limit, replace the brush holder assembly. See Fig 2.

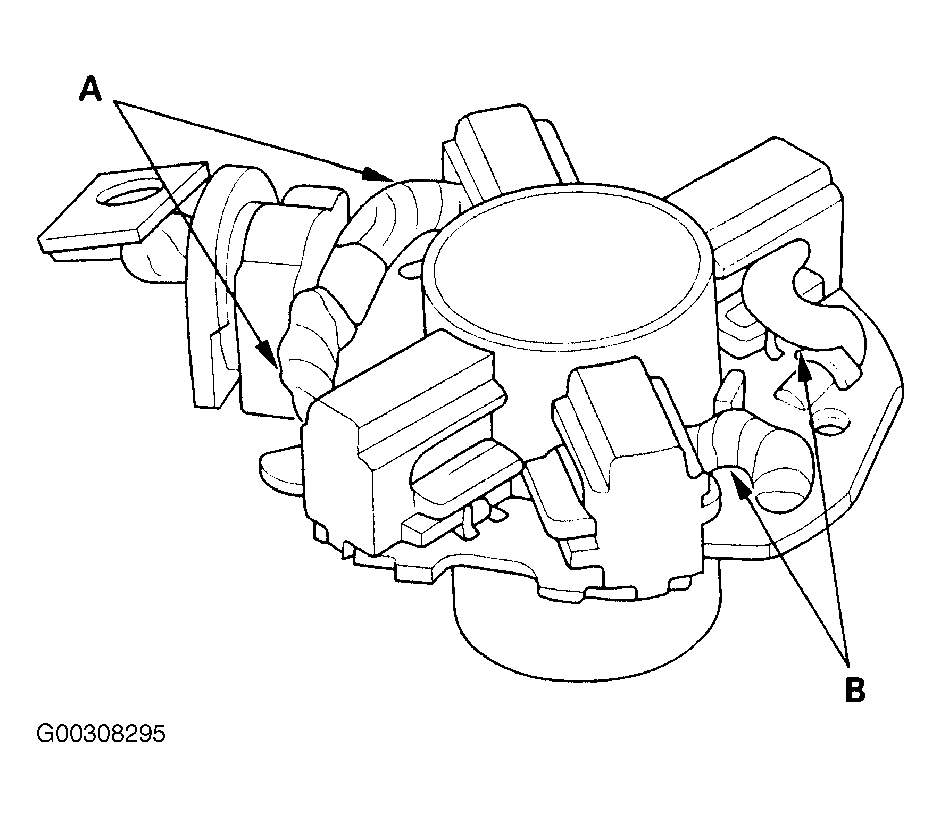

Fig 1: Identifying Brush Holders
G00308295Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: Inspecting Starter Brushes
G00308296Courtesy of AMERICAN HONDA MOTOR CO., INC.
