Circuit Diagram

WARNING: This page is about a different car, the 2003 Acura 3.2TL. However, it is still accessible from the selected car via links, so may be relevant.

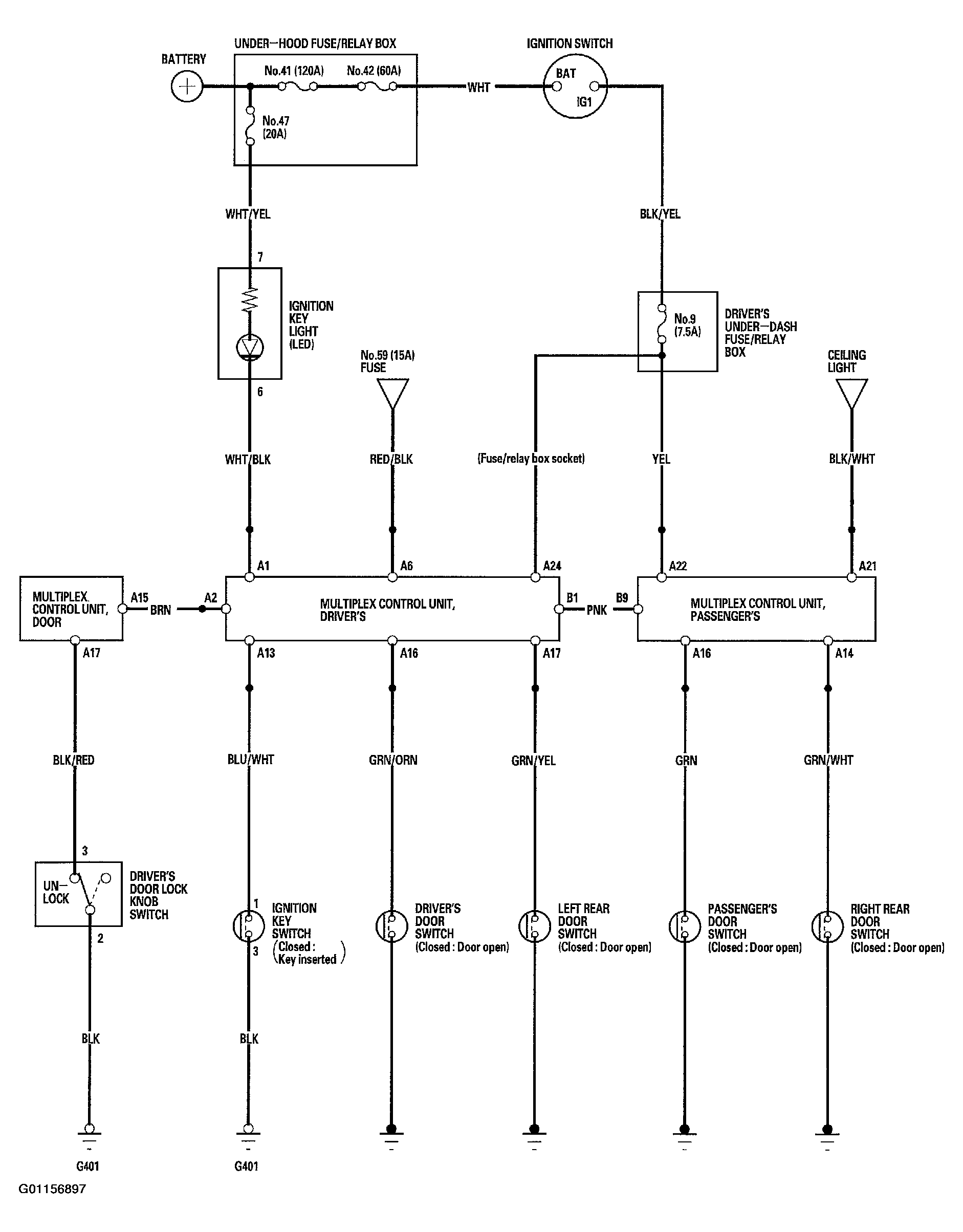

Fig 1: Entry Light Control System Wiring Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.
