Passenger's Power Seat Switch Test

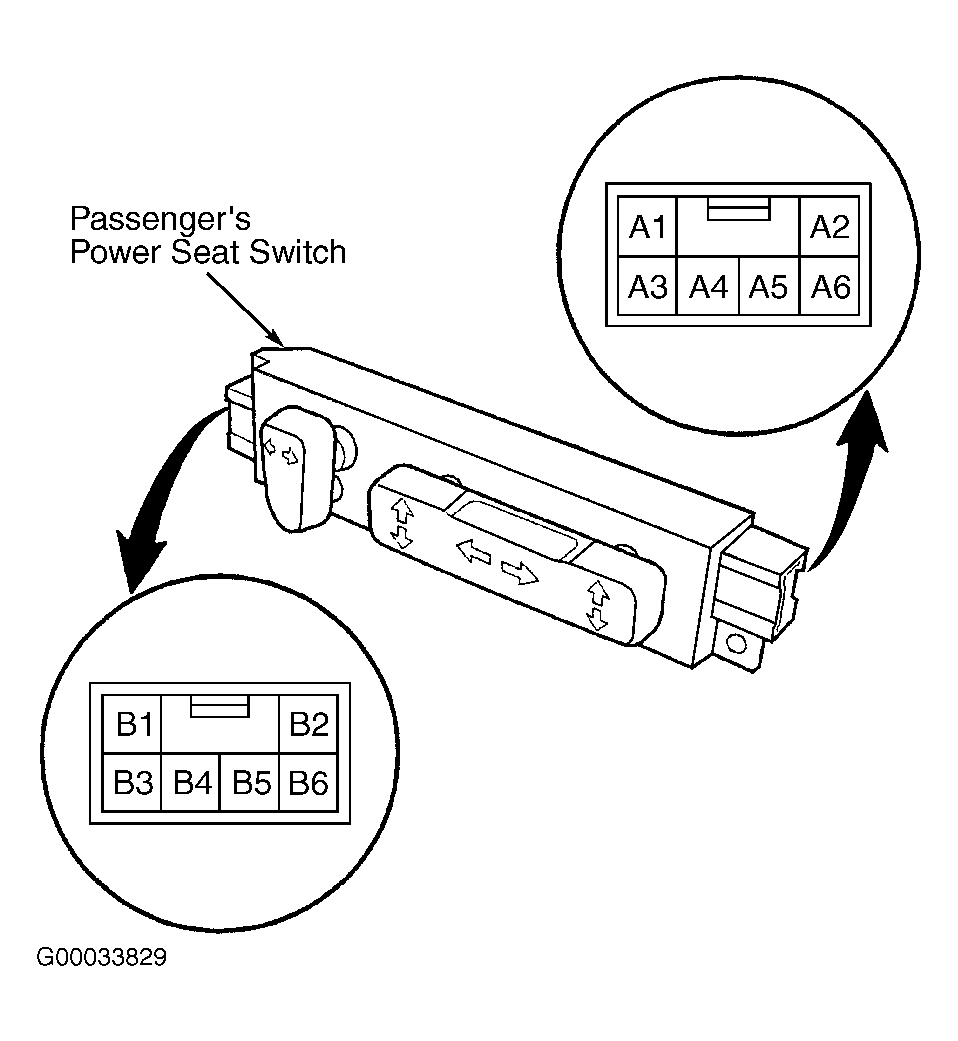

Remove passenger's power seat adjustment switch knob and recline cover. Remove passenger's power seat switch. Disconnect passenger's power seat switch 6-pin connectors. Using an ohmmeter, ensure switch continuity is as specified. See PASSENGER'S POWER SEAT SWITCH CONTINUITY table. See Fig 1 . If switch fails test, replace faulty switch.
PASSENGER'S POWER SEAT SWITCH CONTINUITY
| Position | Continuity Between Terminals | |
|---|---|---|
| Slide Switch | ||
| Forward | A2 & B4; A4 & B3 | |
| Backward | A2 & B3; A4 & B4 | |
| Recline Switch | ||
| Forward | B1 & B6; B2 & B5 | |
| Backward | B1 & B5; B2 & B6 | |
