Main Valve Body

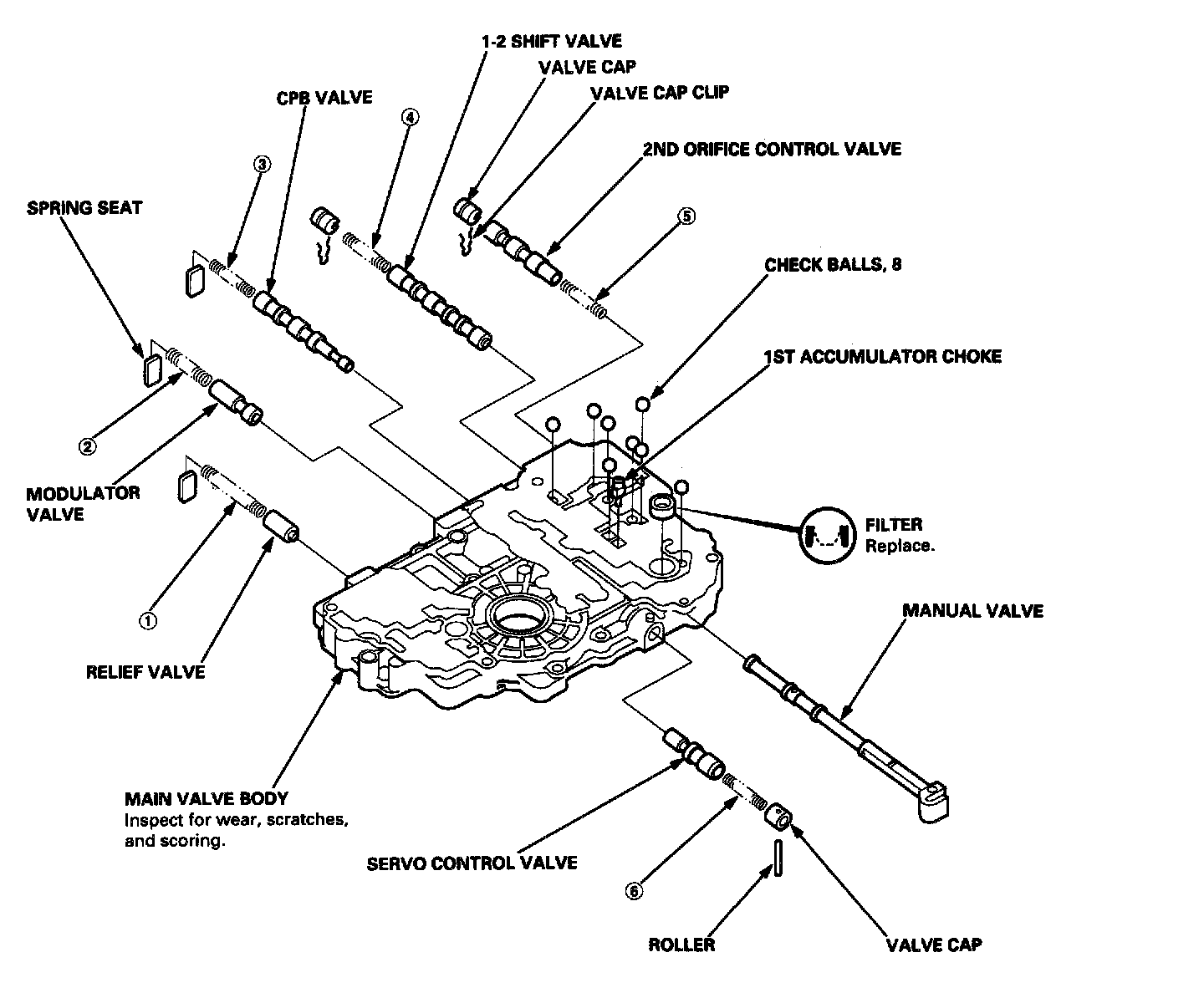

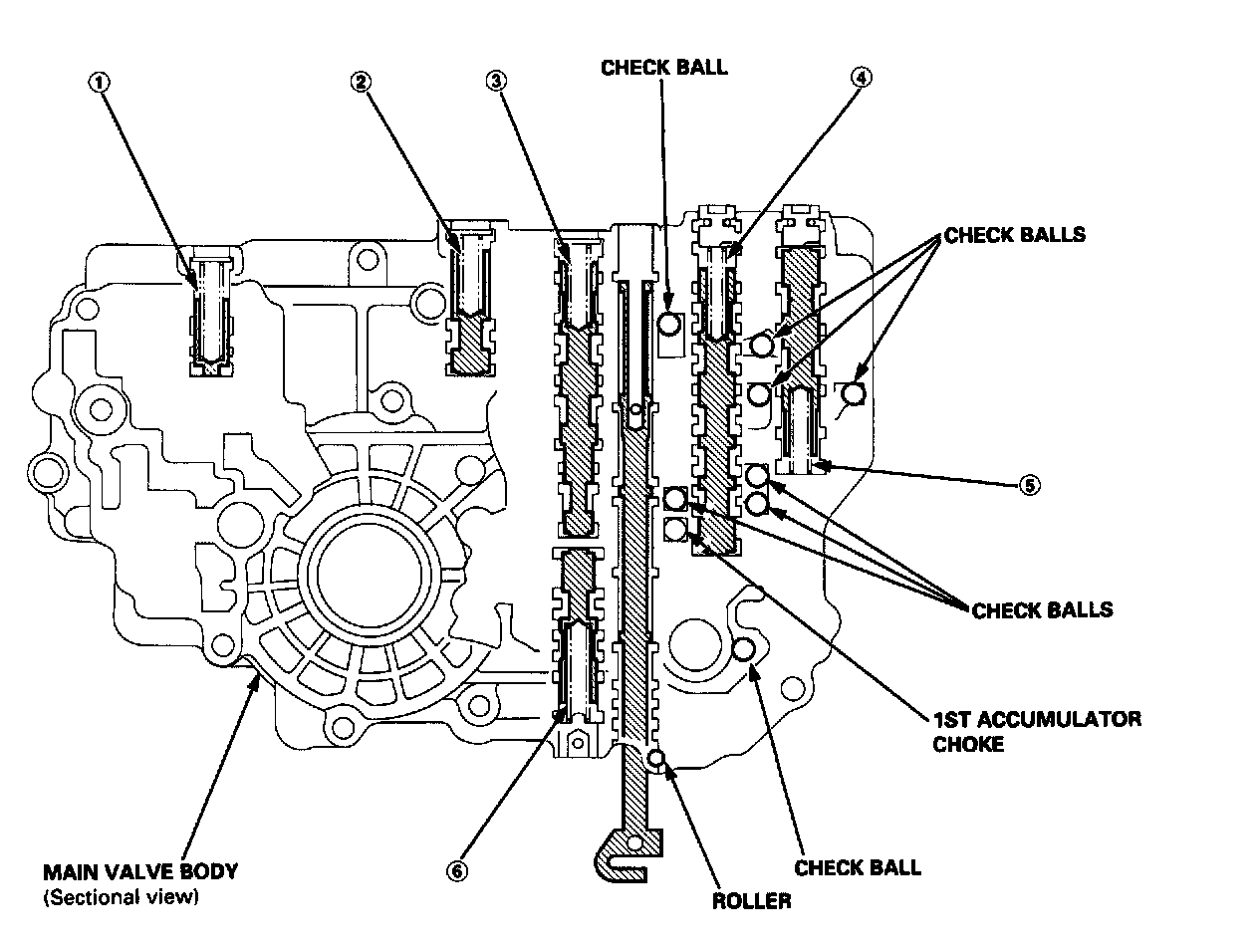

MAIN VALVE BODY OVERHAUL W/ RELATED COMPONENTS





Part 1 of 2





Part 2 of 2

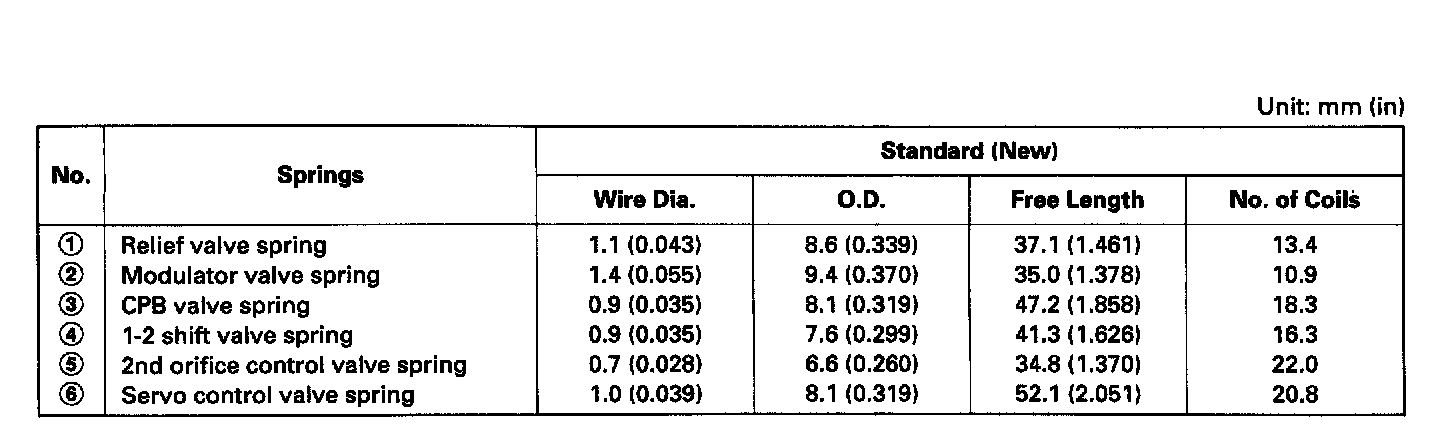

SPRING SPECIFICATIONS
