Cruise Control: Testing and Inspection

CRUISE CONTROL SYSTEM / TROUBLESHOOTING







NOTE:

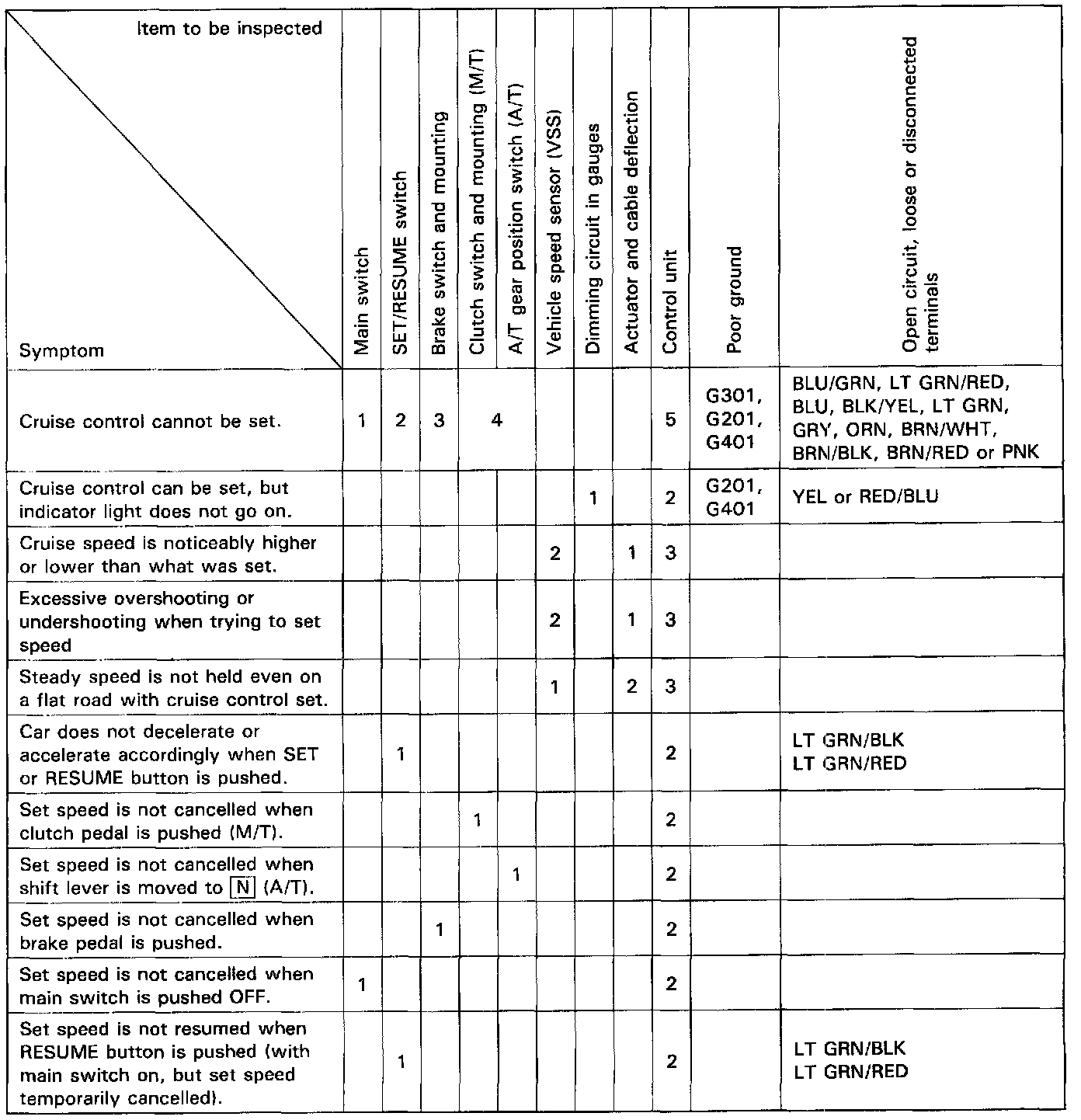

The numbers in the table show the troubleshooting sequence.
Before troubleshooting,
- check the No. 25 (7.5 A) and No. 14 (7.5 A) fuses in the under-dash fuse/relay box, and the No. 41 (100 A), No. 42 (40 A), and No. 52 (20 A) fuses in the under-hood fuse/relay box.
- check that the horn sounds.
- check the tachometer to see if it works properly.
