Power and Ground Distribution: Locations

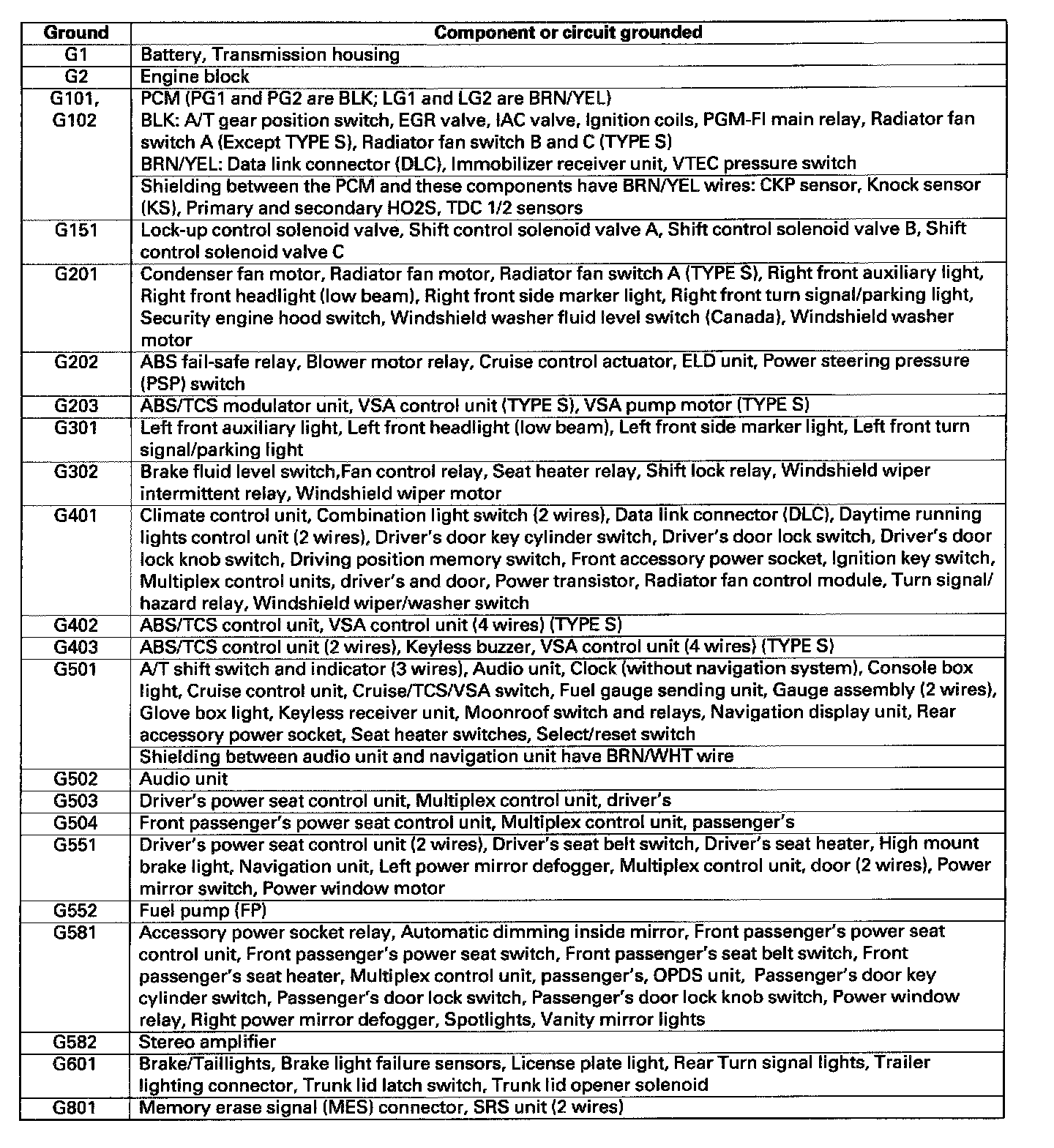

Ground To Components Index:

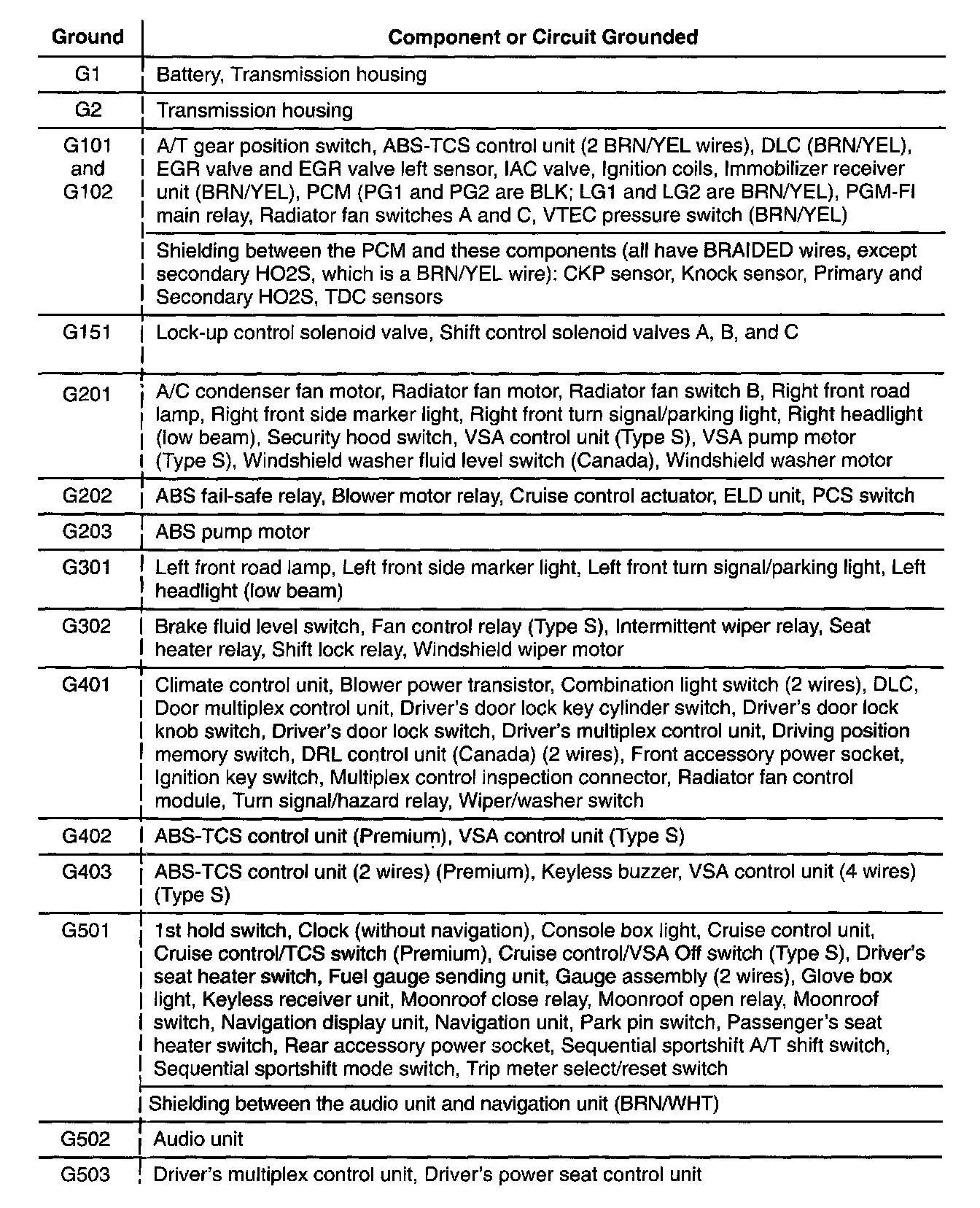

Ground (G1 - G503) Image 6-6:

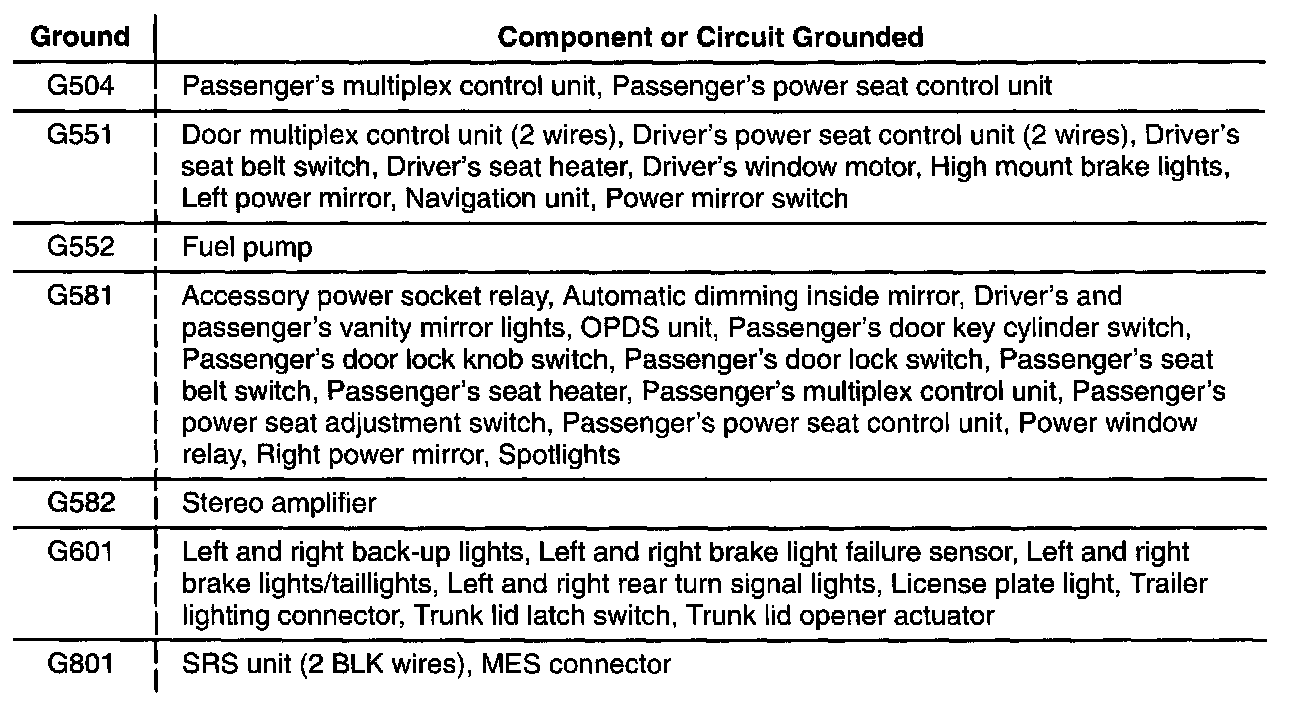

Ground (G504 - G801) Image 6-7:
