Engine Assembly





Connecting Rod End Play





Crankshaft End Play





Main Bearing-to-Journal Oil Clearance





Main Bearing Size Codes





Connecting Rod Bearing-to-Journal Oil Clearance





Connecting Rod Bearing Size Codes





Journal Out-of-Round

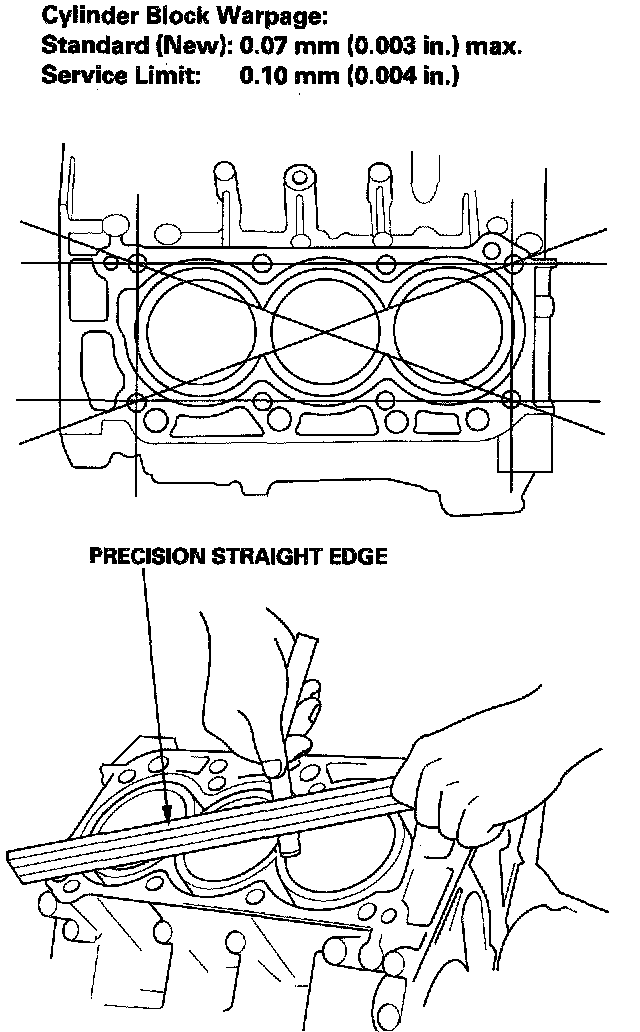

Cylinder Block Warpage

Piston Ring End-Gap:
Top Ring
Standard (New): 0.20 - 0.35 mm (0.008 - 0.014 inch)
Service Limit: 0.60 mm (0.024 inch)
Second Ring
Standard (New): 0.40 - 0.55 mm (0.016 - 0.022 inch)
Service Limit: 0.70 mm (0.028 inch)
Oil Ring
Standard (New): 0.20 - 0.70 mm 10.008 - 0.028 inch)
Service Limit: 0.80 mm (0.031 inch)





Main Bearing Cap Torque





Main Bearing Cap Torque Sequence

Crankshaft Pulley
Torque: 245 Nm (25.0 kgf/cm, 181 ft. lbs.)
