Fan Control Module Relay

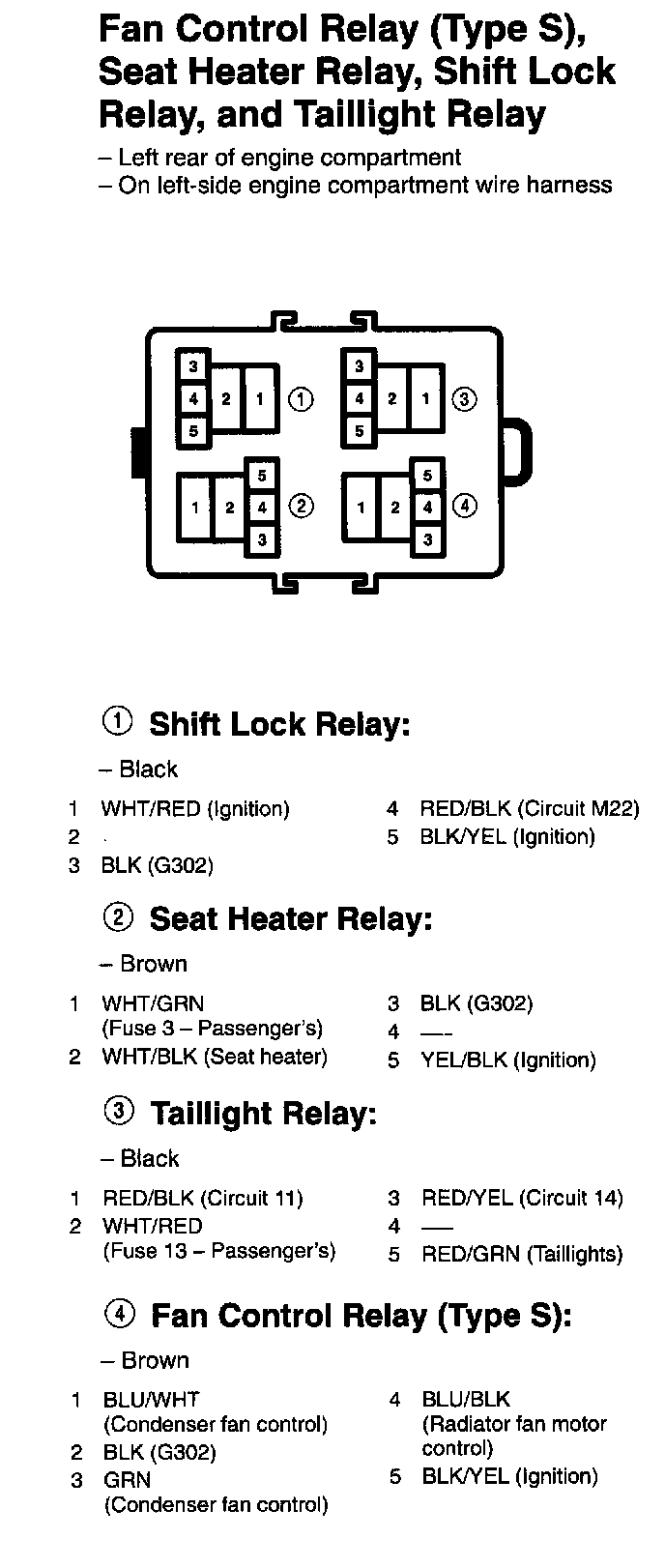

Fan Control Relay (Type S), Seat Heater Relay, Shift Lock Relay, and Taillight Relay:
