General Module

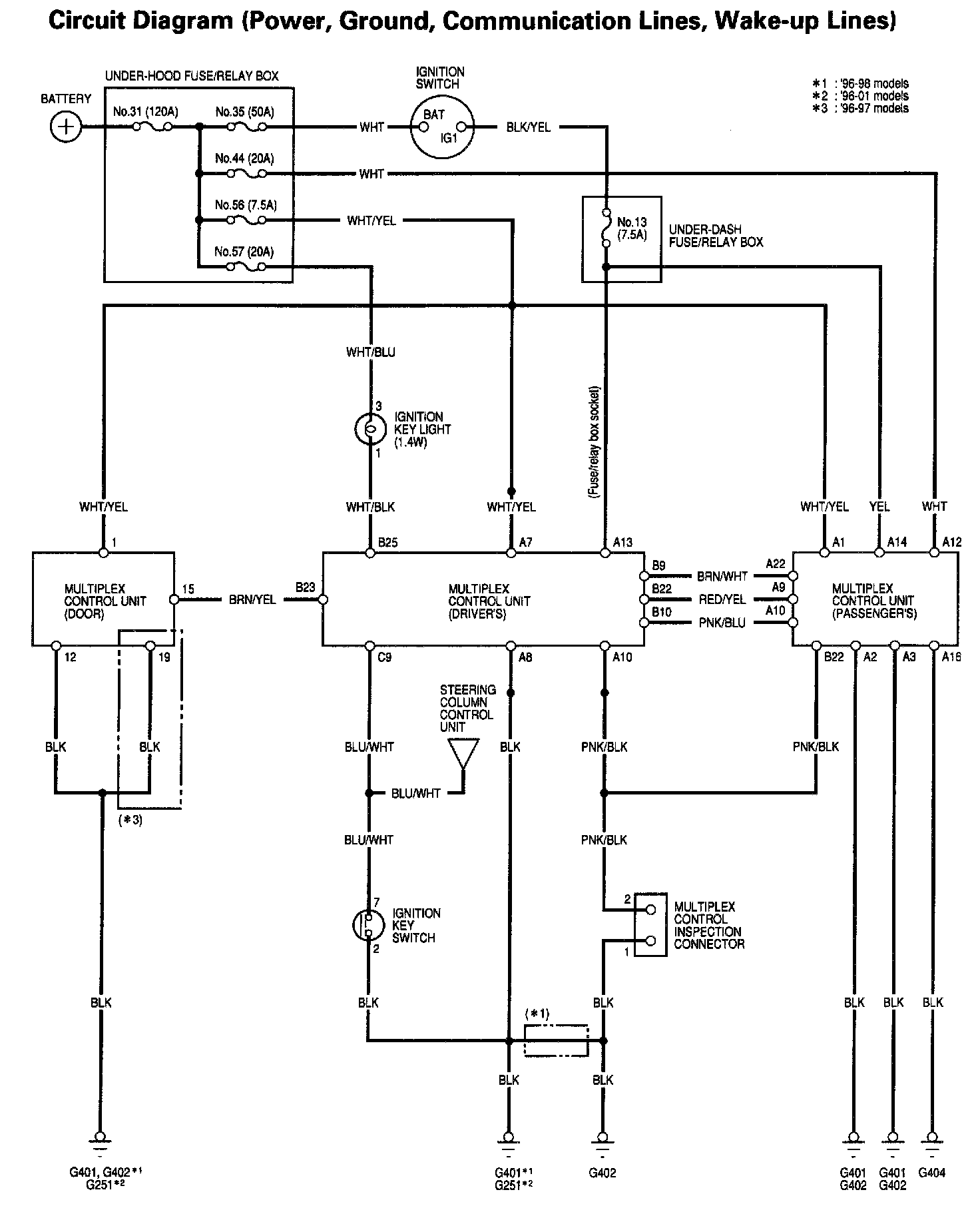

Multiplex Control System (Power Ground, Communication Lines, Wake-up Lines) - Circuit Diagram:
