Troubleshooting Flowchart

Troubleshooting Flowchart

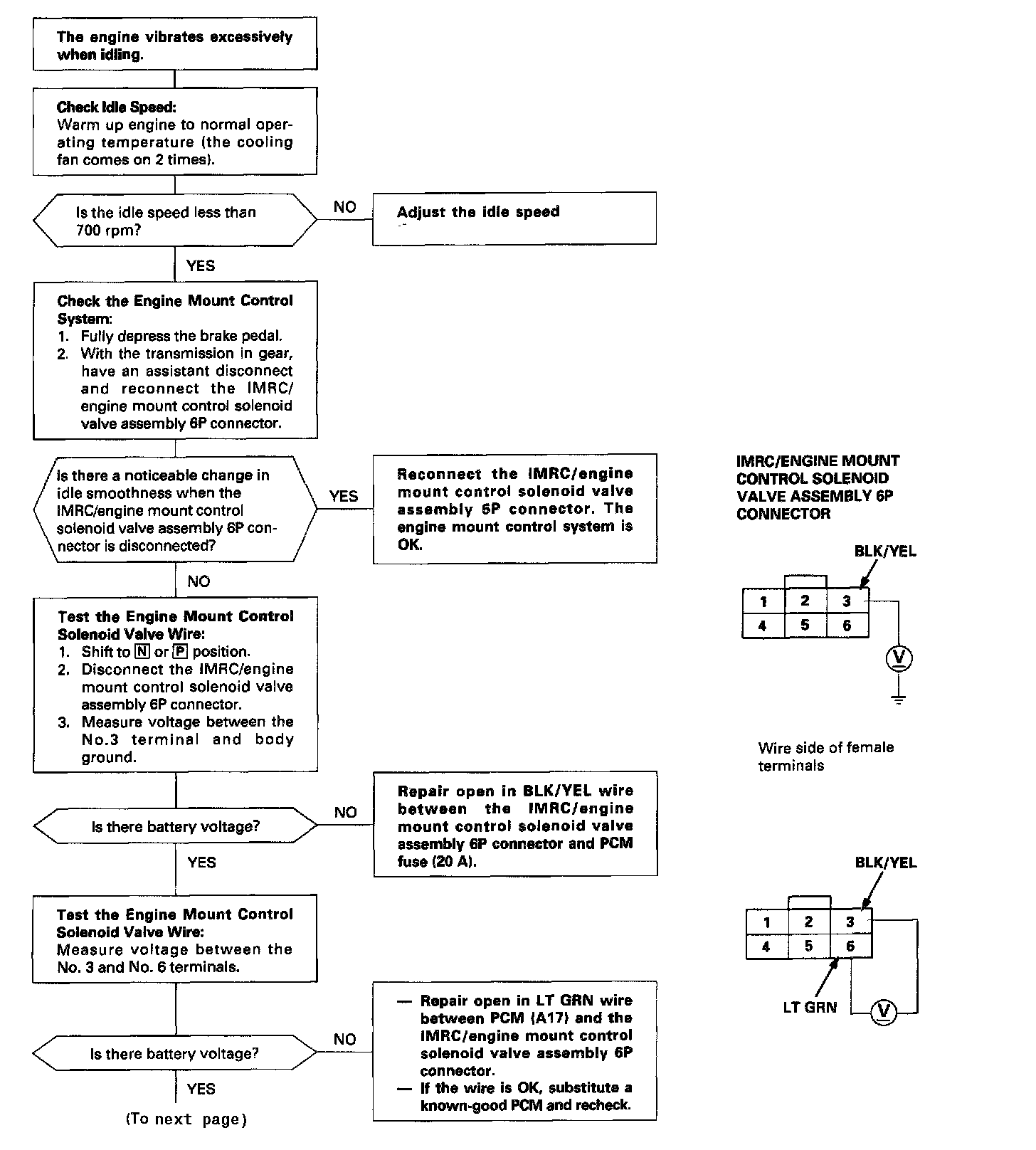

Part 1 of 2

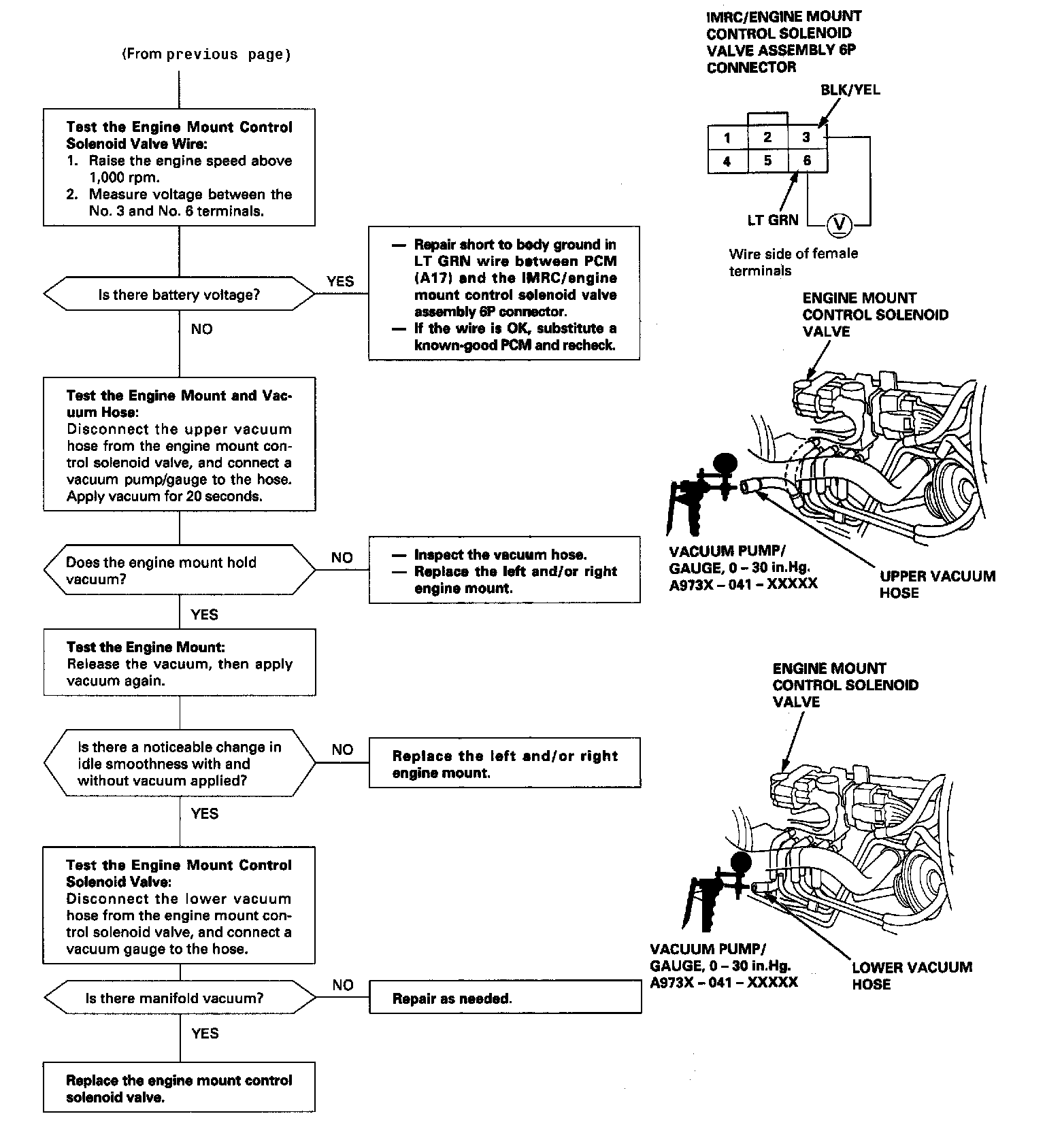

Part 2 of 2

NOTE:
- Check the vacuum hoses and lines for damage and proper connections.
- Refer to the Troubleshooting Procedures.
