Removal and Installation

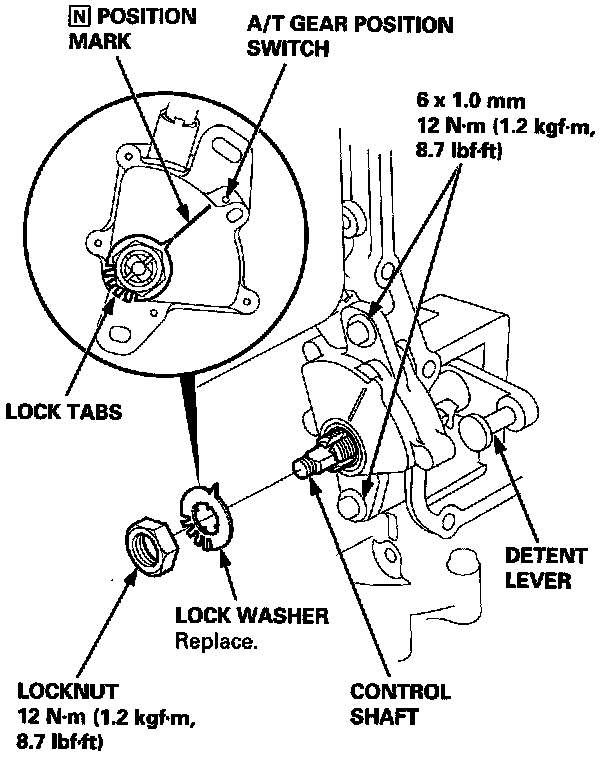

REMOVAL
1. Shift the detent lever to the [P] position.
2. Pry the locktabs on the lock washer, then remove the locknut and lock washer.
3. Remove the bolts securing the A/T gear position switch, then remove the A/T gear position switch.




INSTALLATION
1. Set the A/T gear position switch to the [N] position as shown.

NOTE: The A/T gear position switch clicks in the [N] position.




2. Shift the detent lever to the [P] position.




3. Install the A/T gear position switch on the control shaft, then install the bolts loosely.




4. Install a new lock washer on the A/T gear position switch by aligning its projected tip with the [N] position mark on the A/T gear position switch as shown.
5. Tighten the locknut while holding the detent lever in the [N] position, then bend the lock tabs against the locknut.
6. Tighten the 6 mm bolts to the specified torque.
