Pinout Values and Diagnostic Parameters

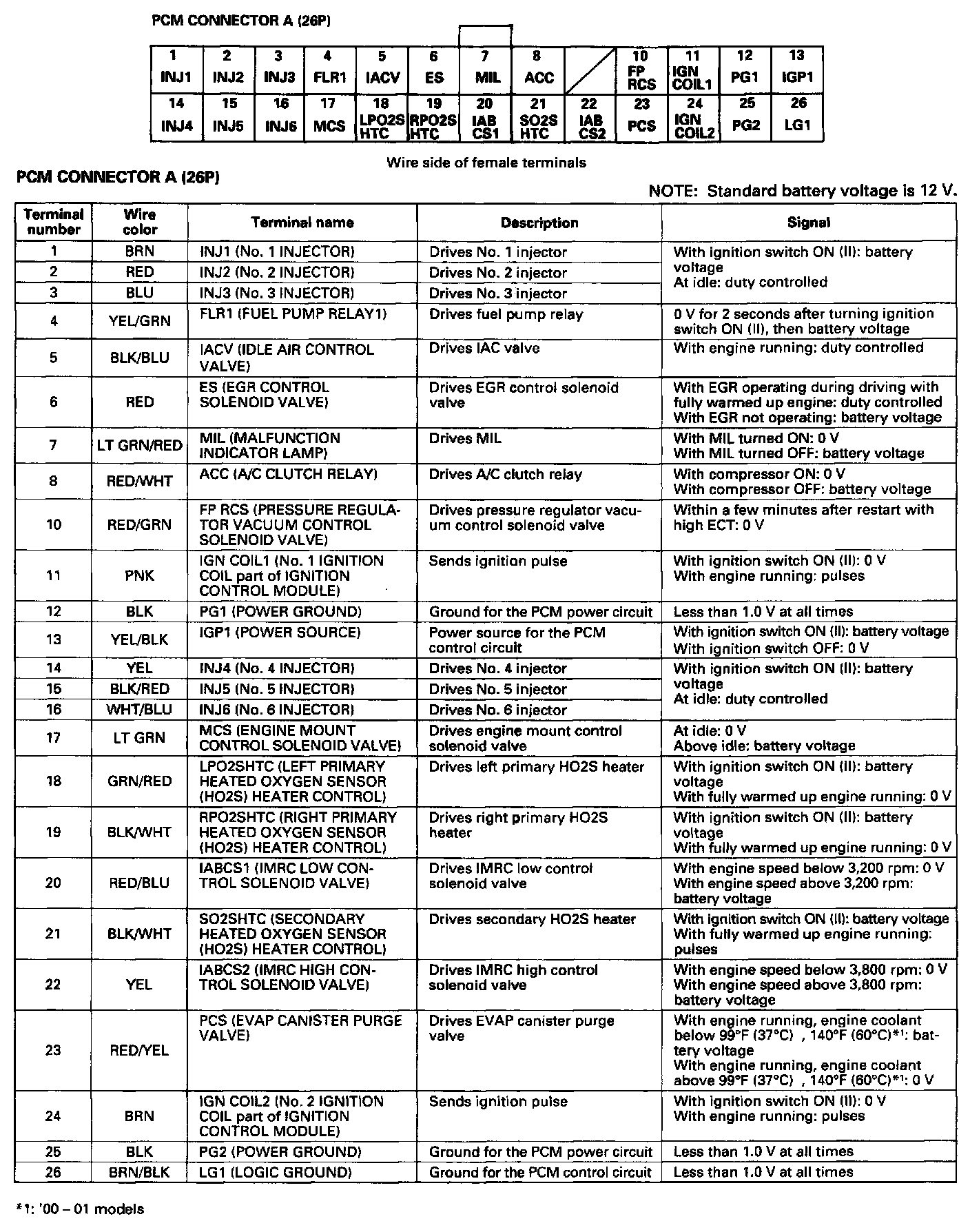

PCM Connector A (26P):

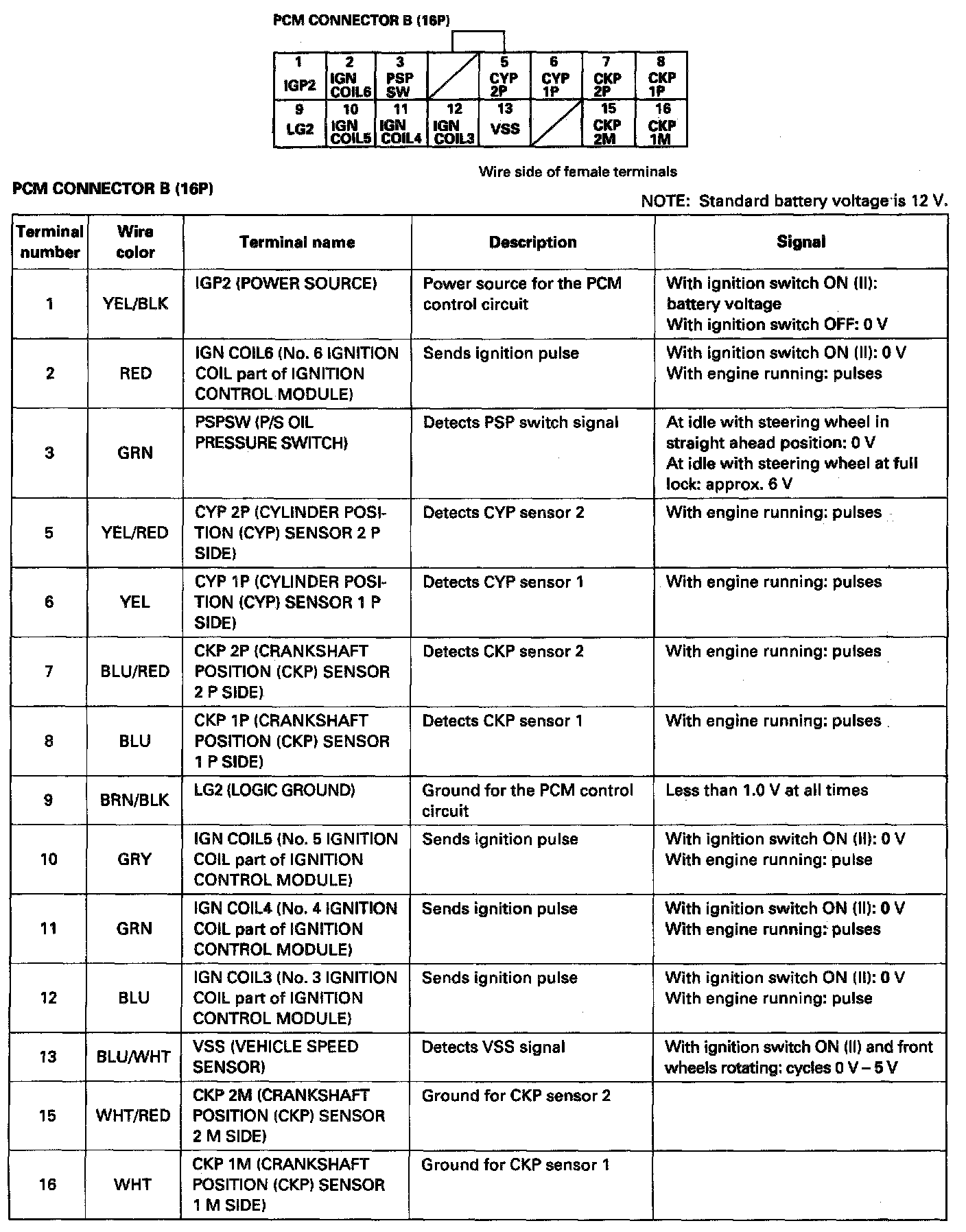

PCM Connector B (16P):

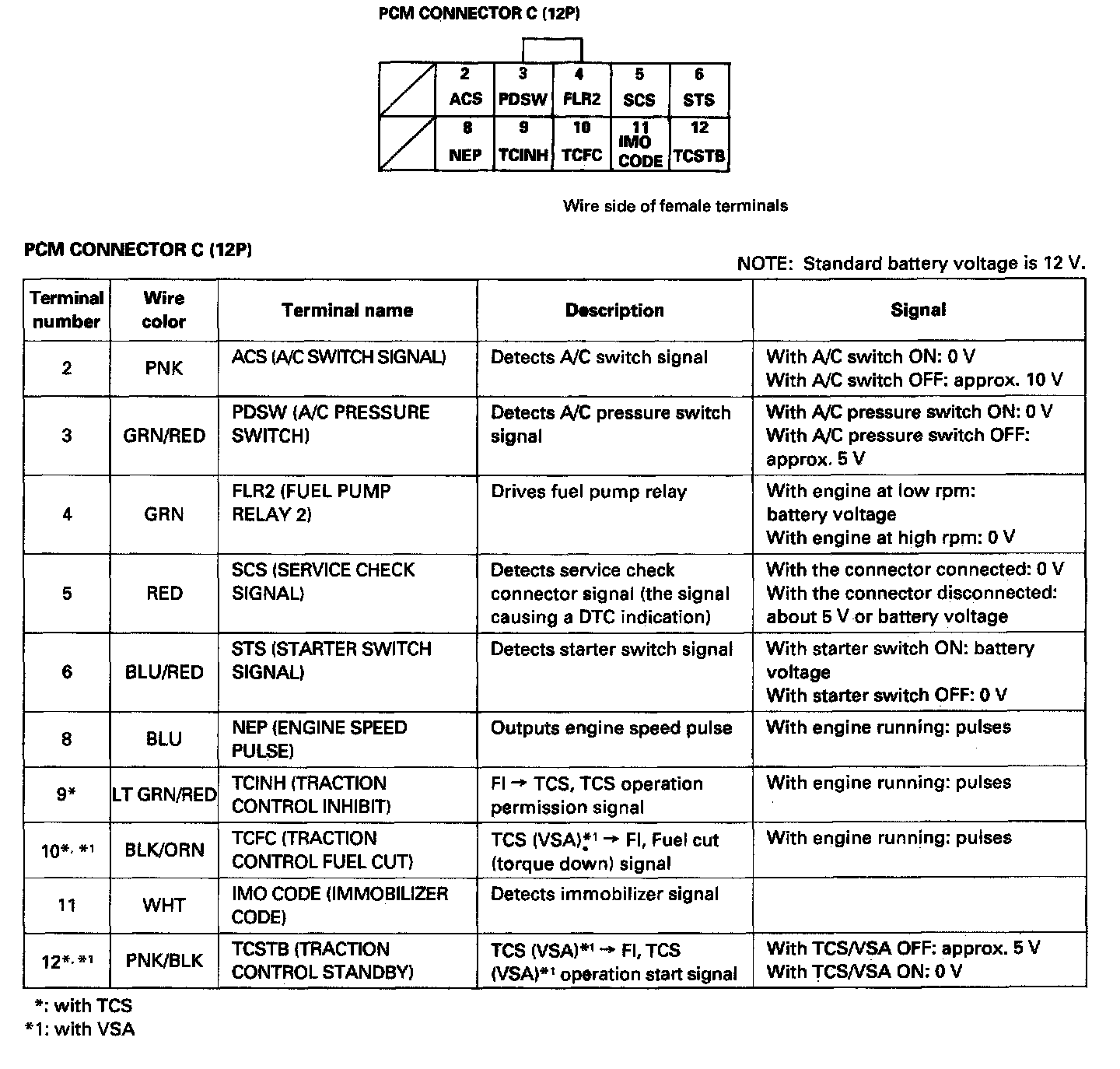

PCM Connector C (12P):

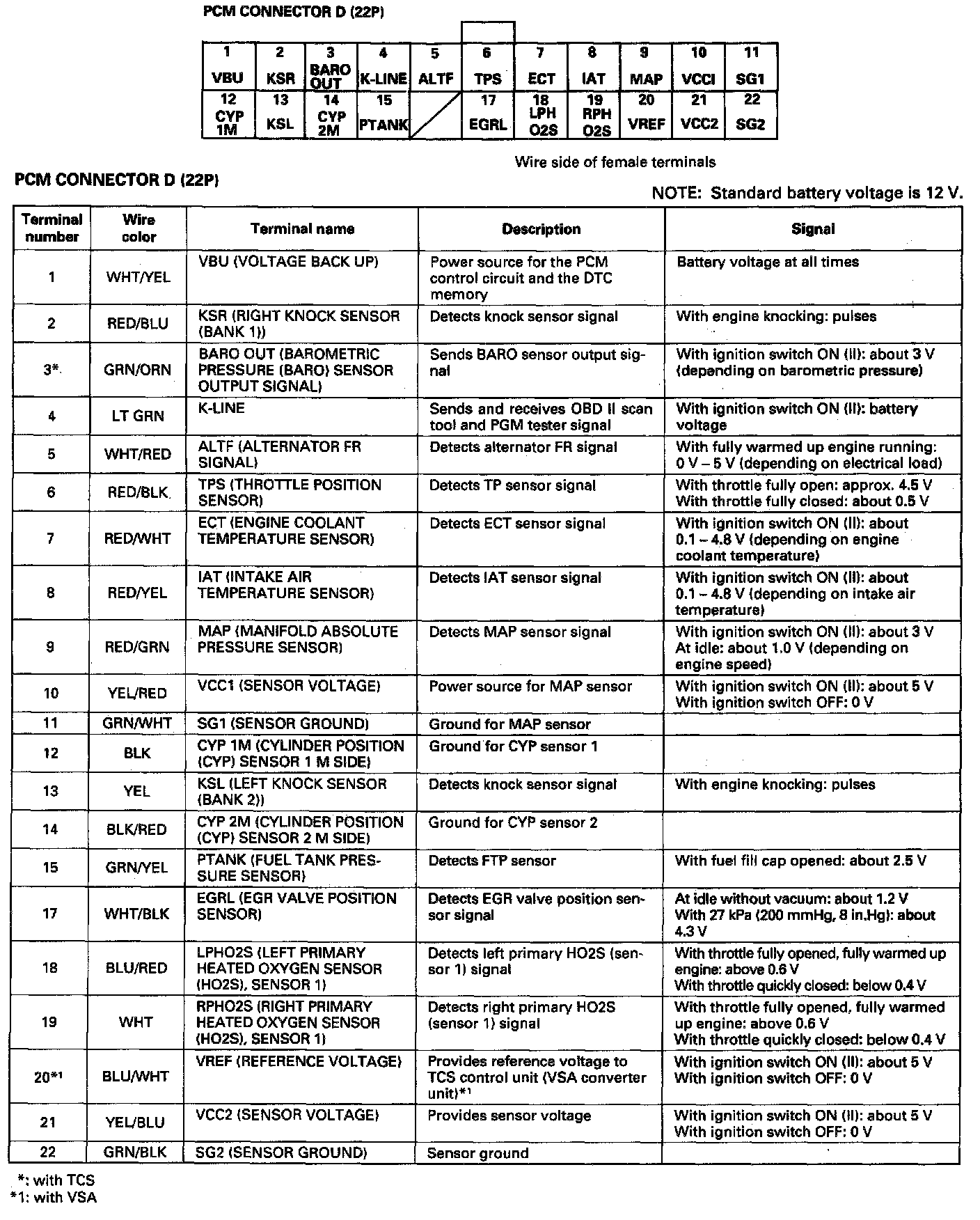

PCM Connector D (22P):

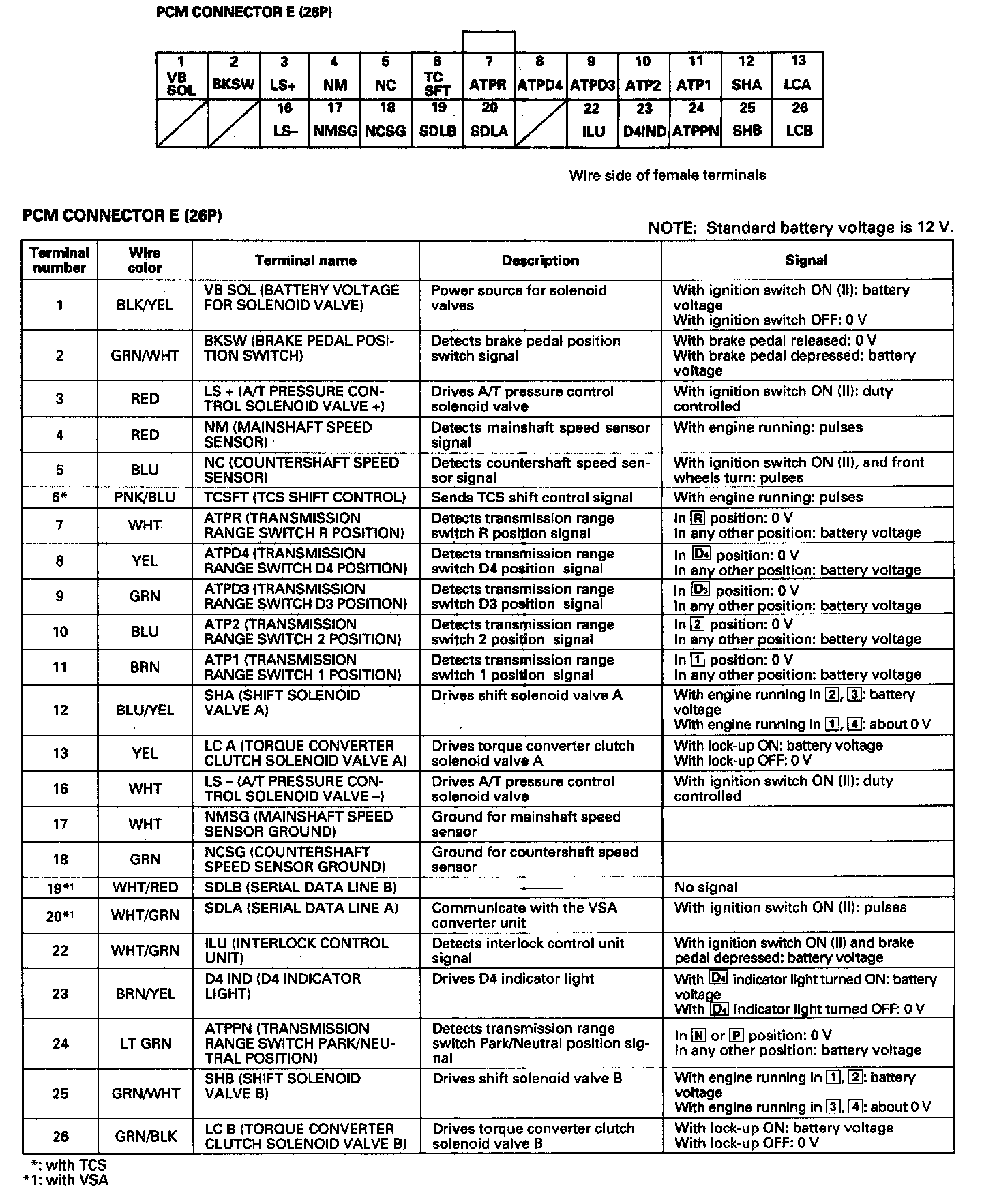

PCM Connector E (26P):

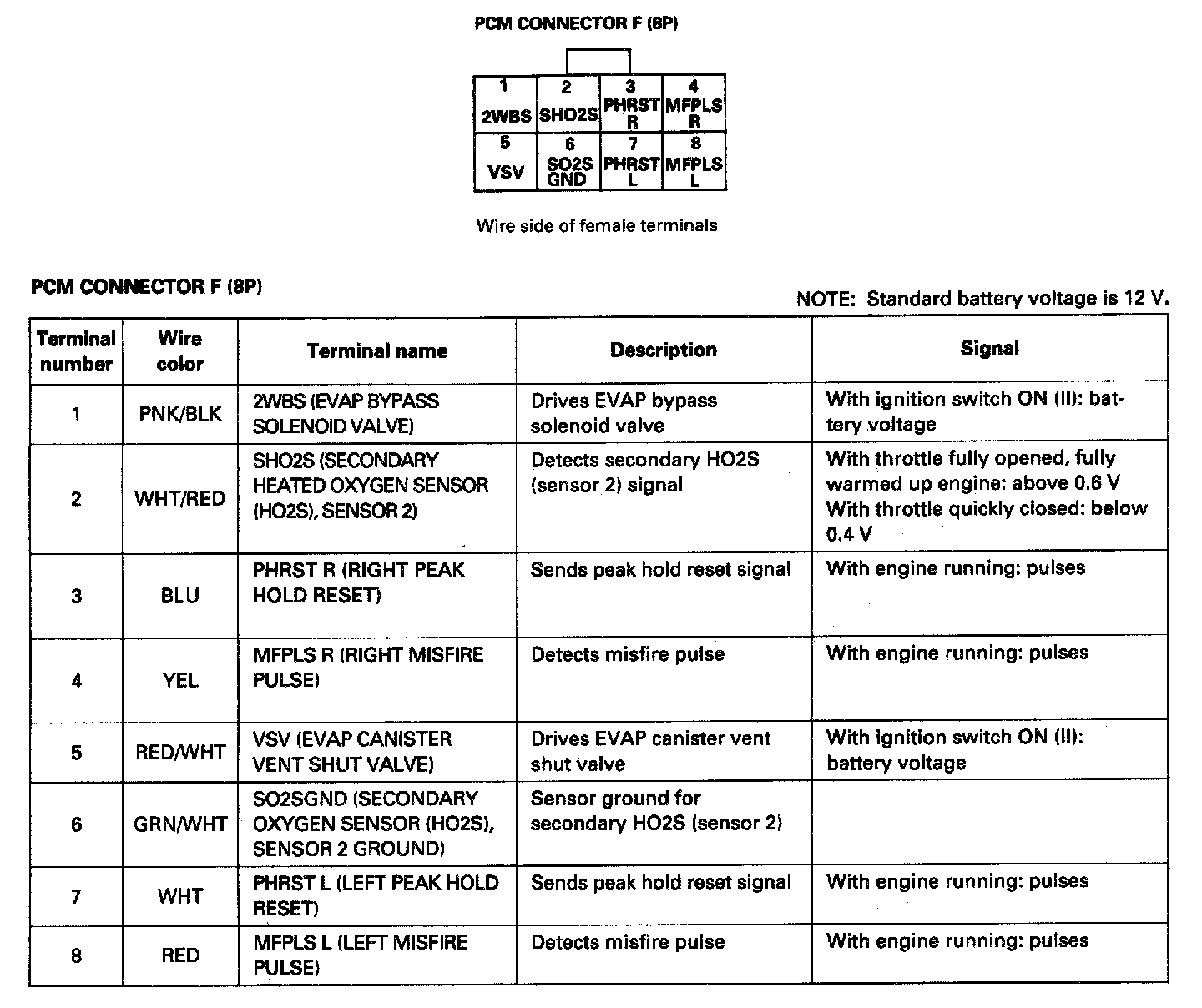

PCM Connector F (8P):
