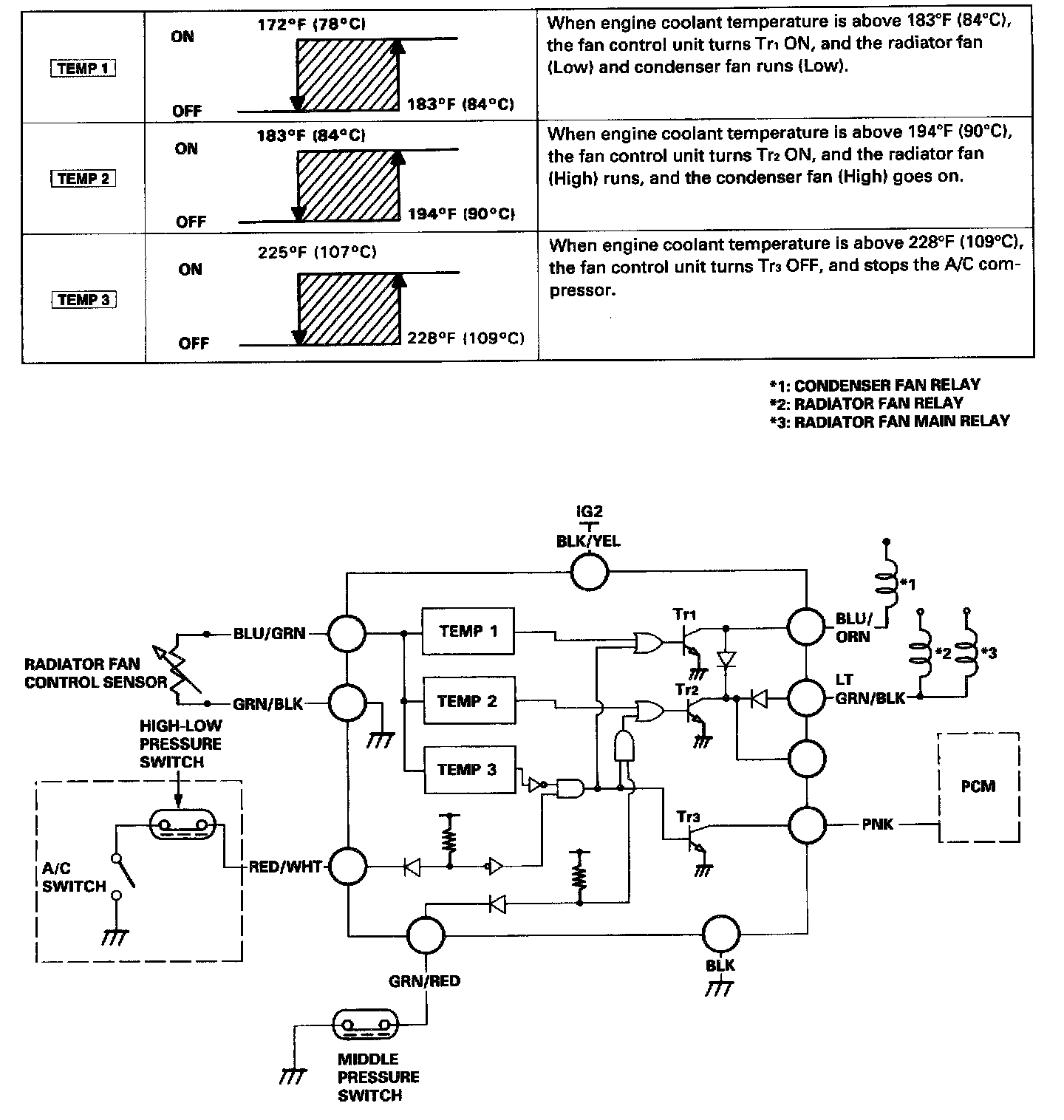

Control Module HVAC: Description and Operation

The fan control unit makes calculations based on signals from the radiator fan control sensor. It then controls the operation of the radiator fan, condenser fan and A/C system.
