Clutch

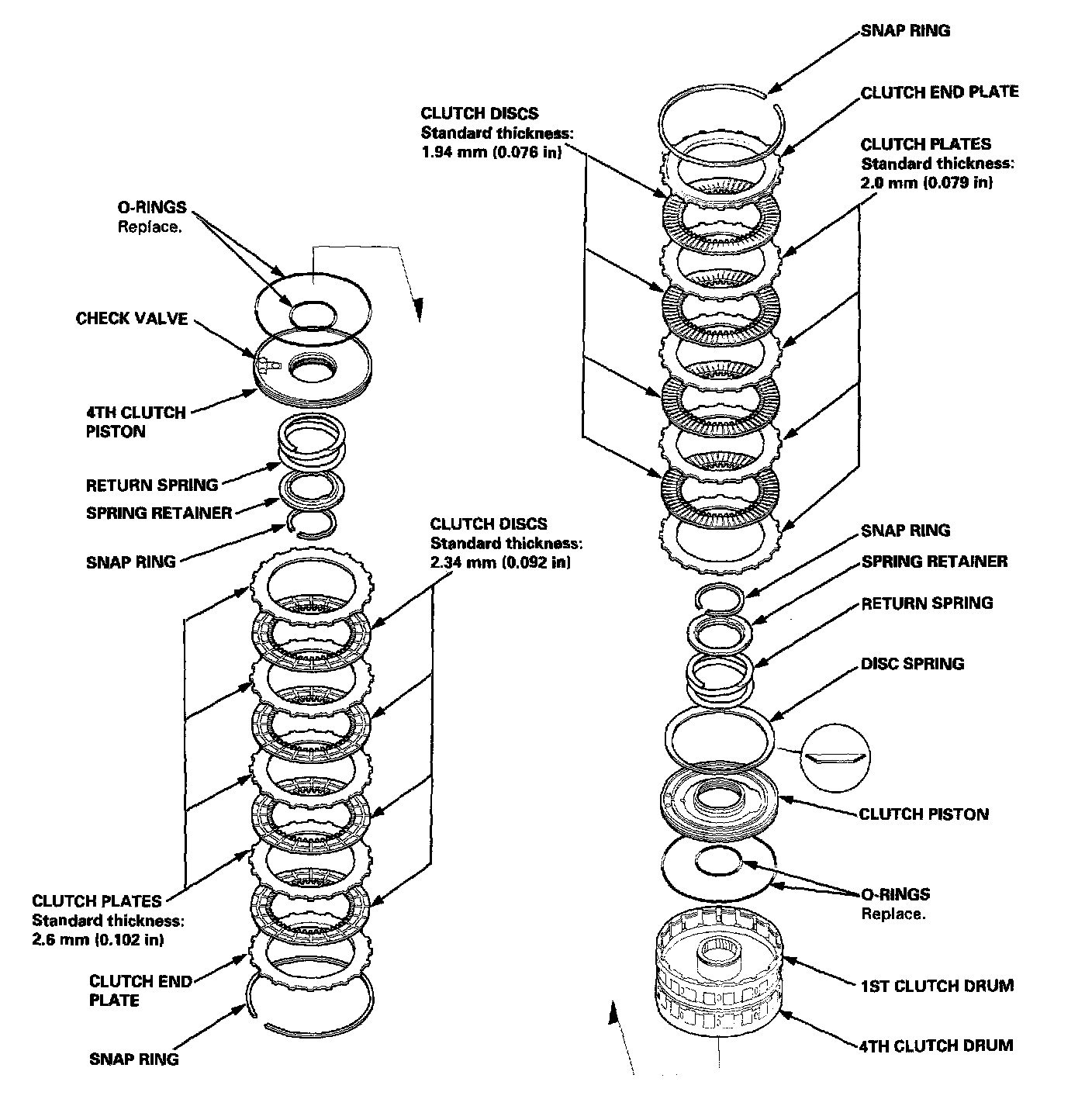

1ST/4TH CLUTCH ASSEMBLY

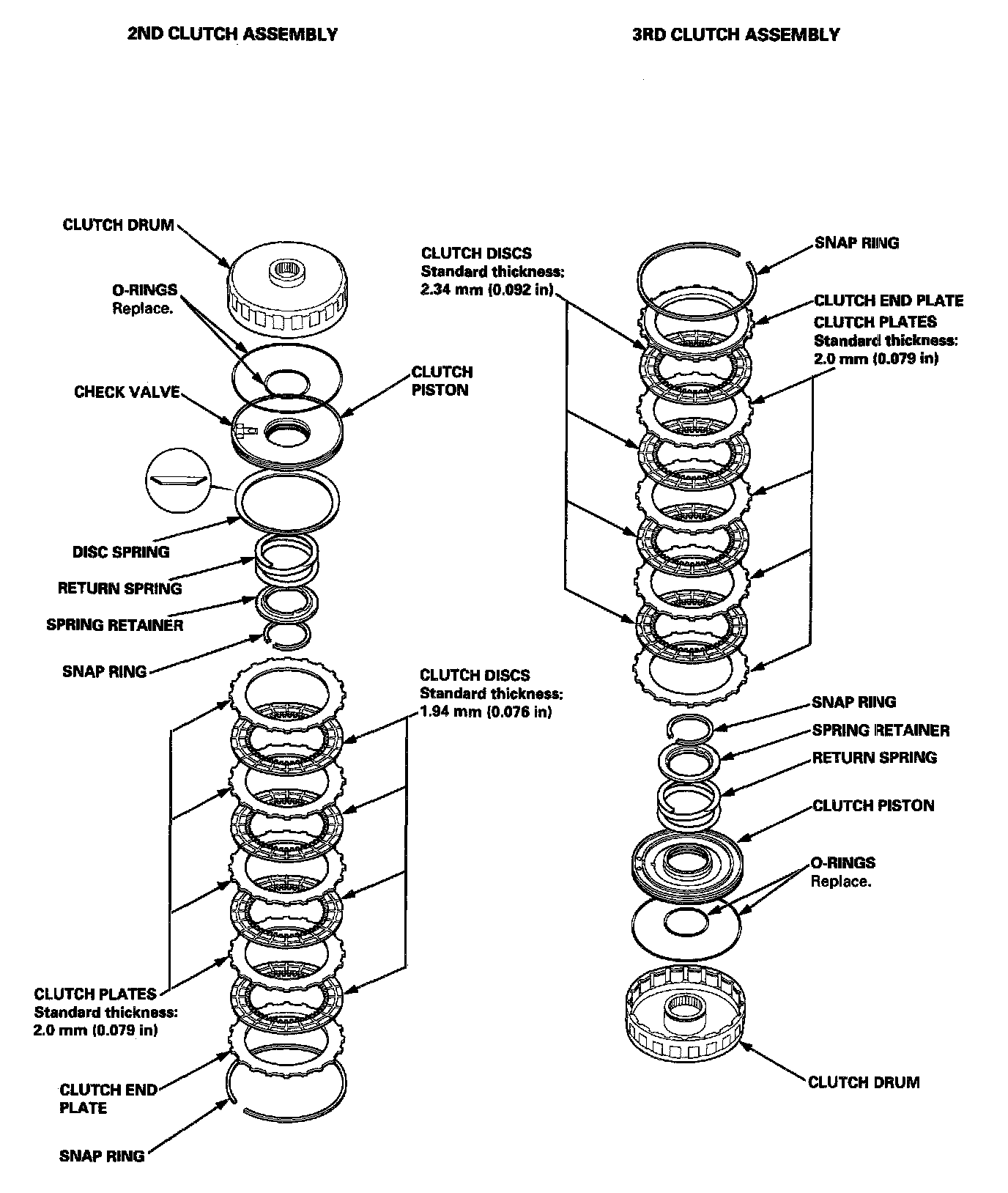

2ND CLUTCH ASSEMBLY / 3RD CLUTCH ASSEMBLY

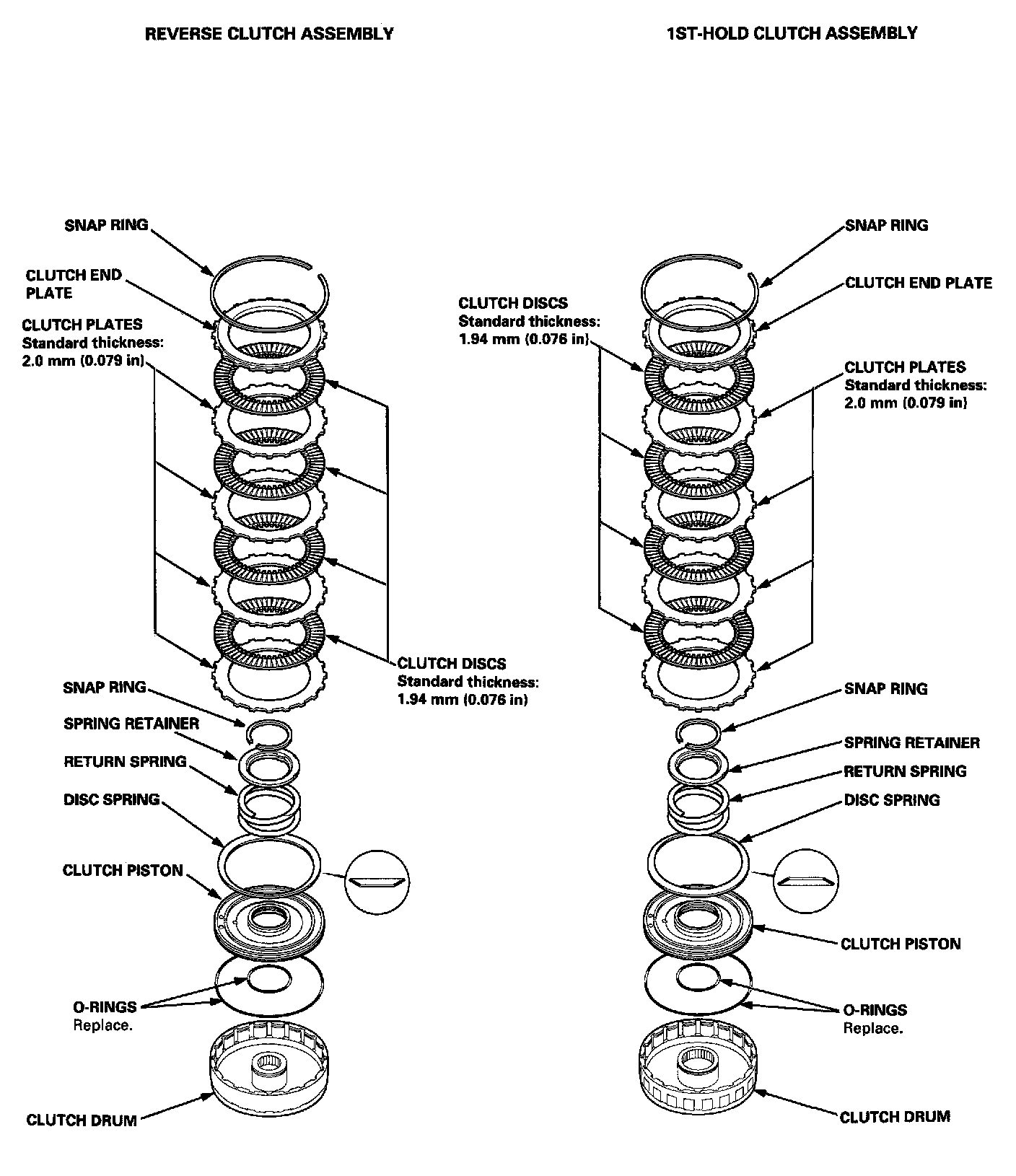

REVERSE CLUTCH ASSEMBLY / 1ST-HOLD CLUTCH ASSEMBLY
