Navigation Module

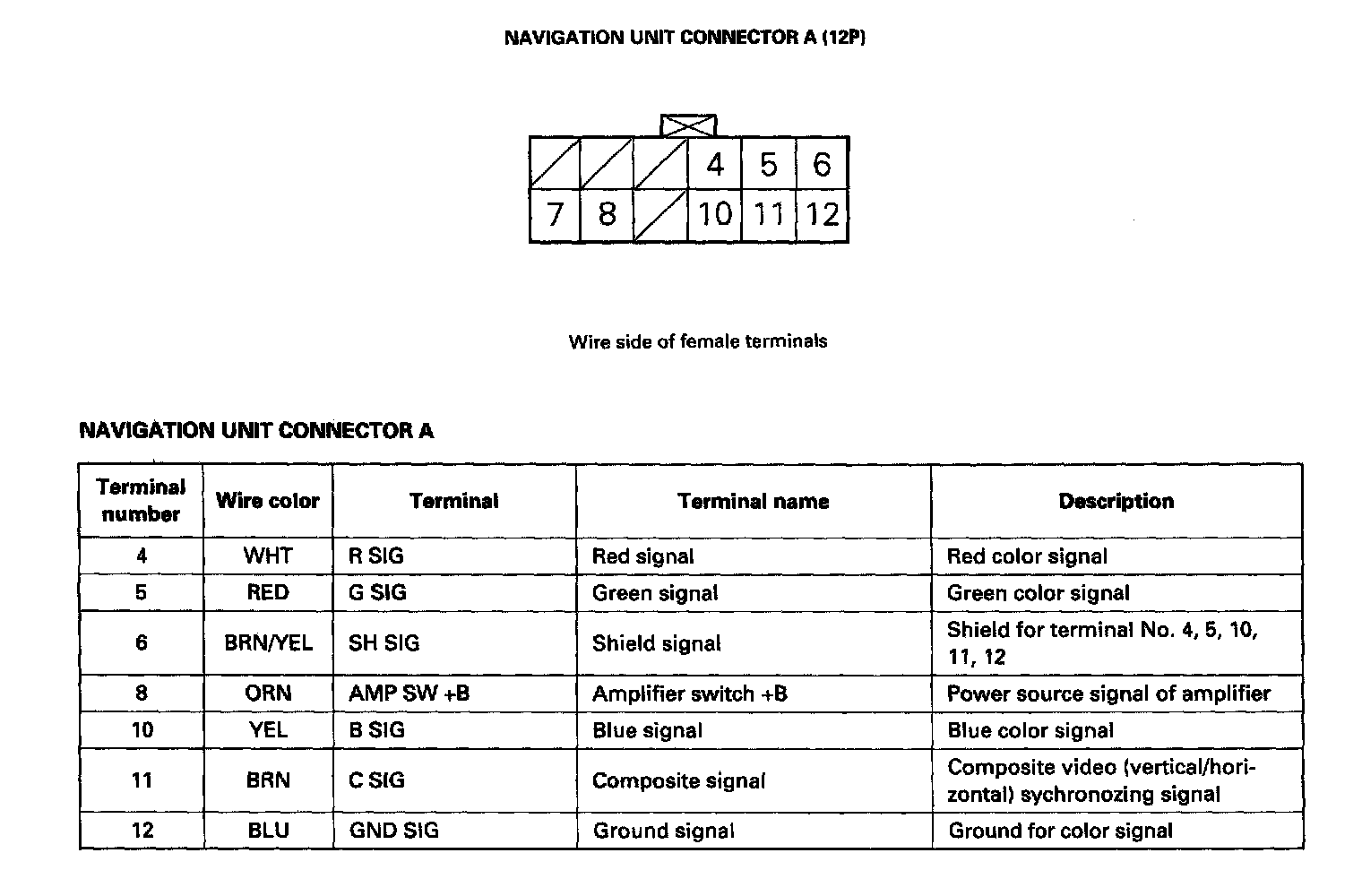

Navigation Unit Connector A (12P):

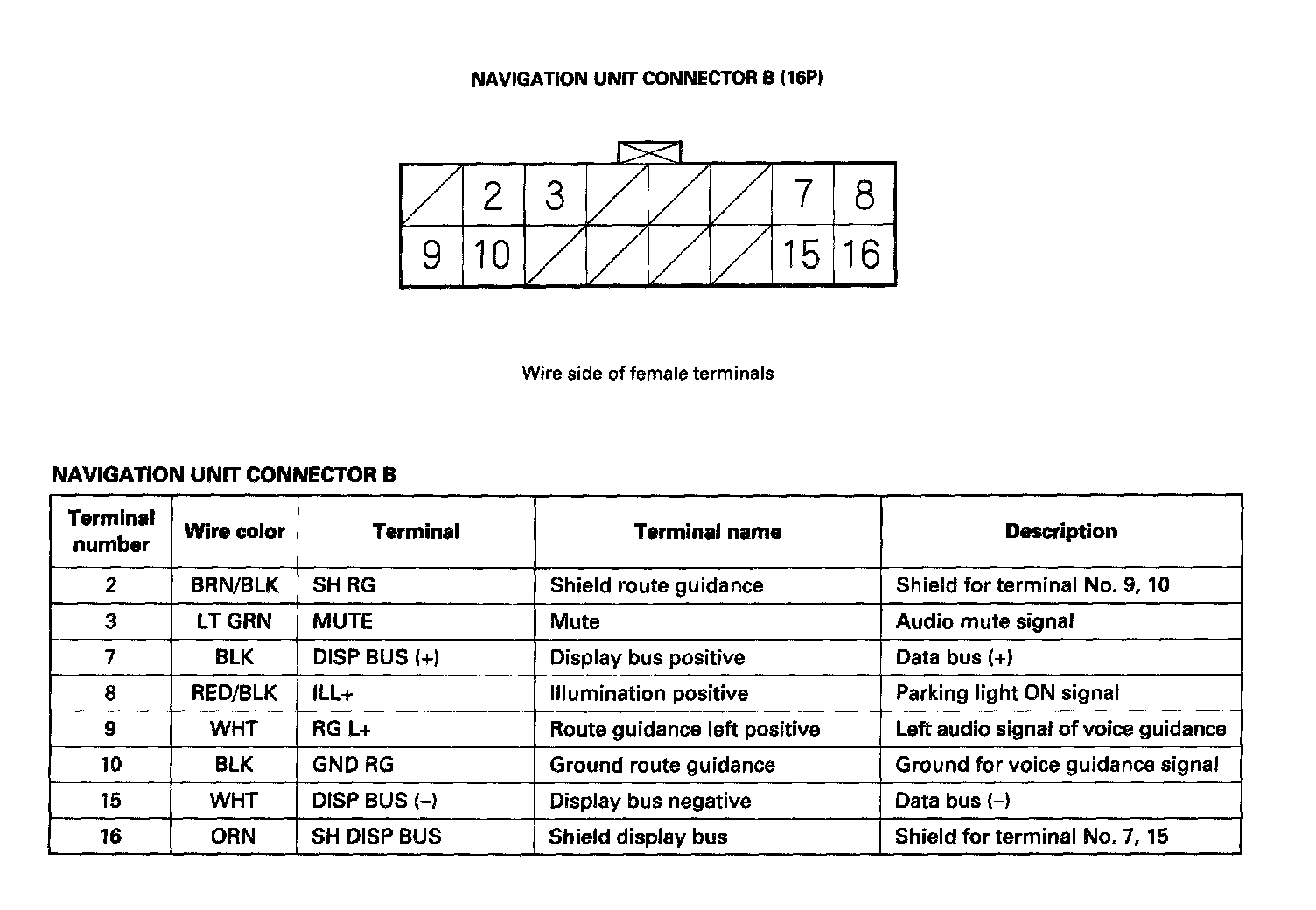

Navigation Unit Connector B (16P):

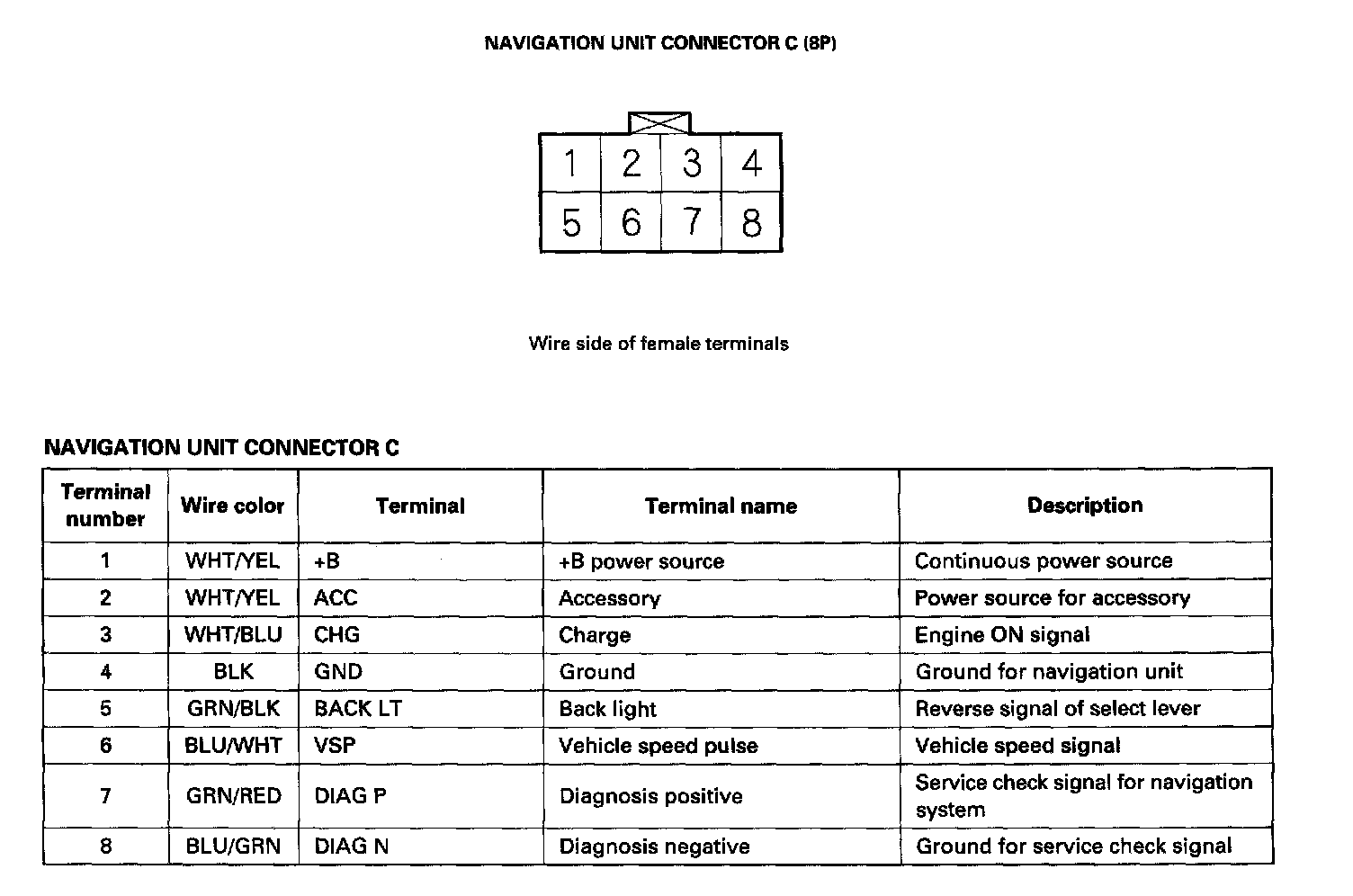

Navigation Unit Connector C (18P):

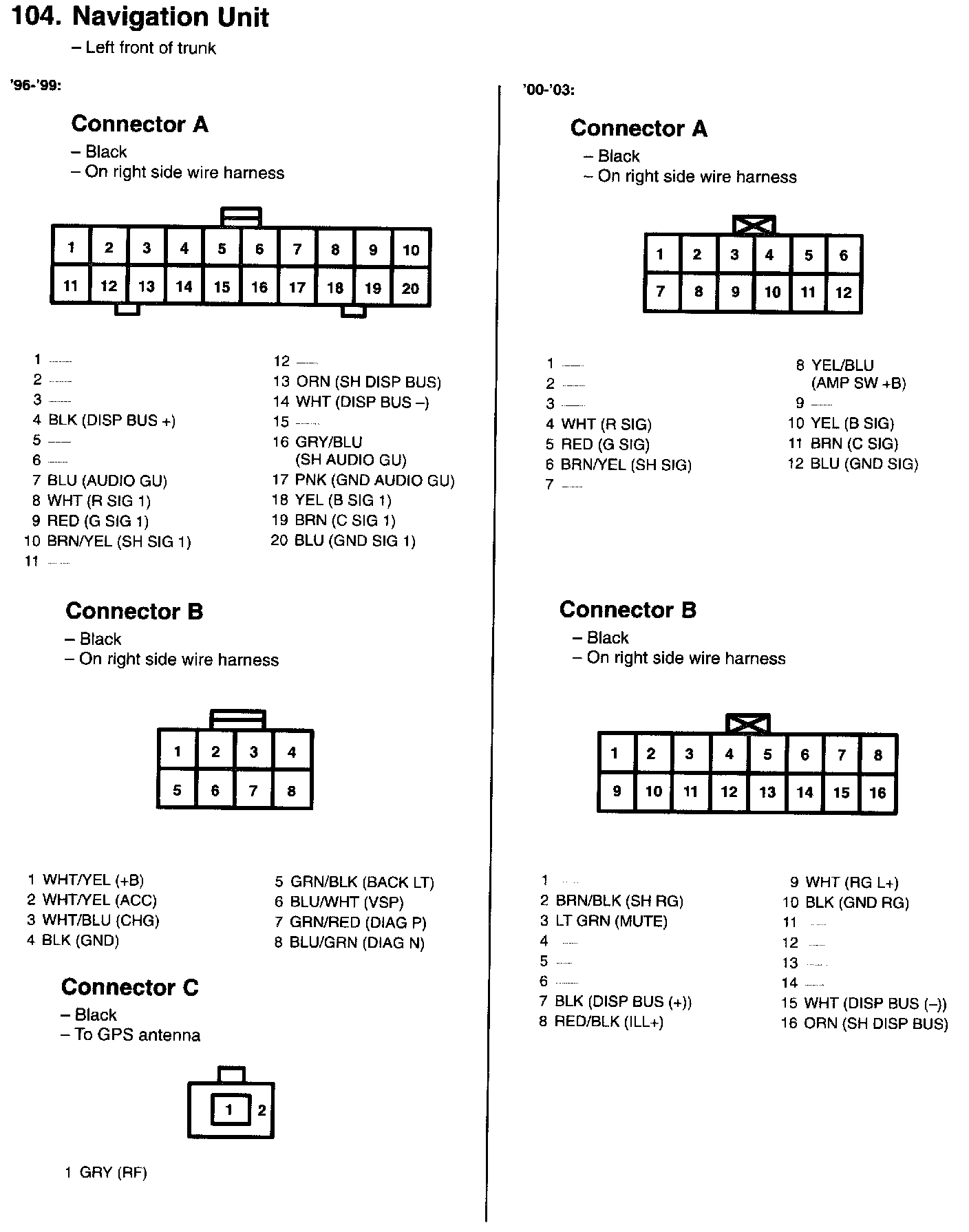

Navigation Unit Part 1:

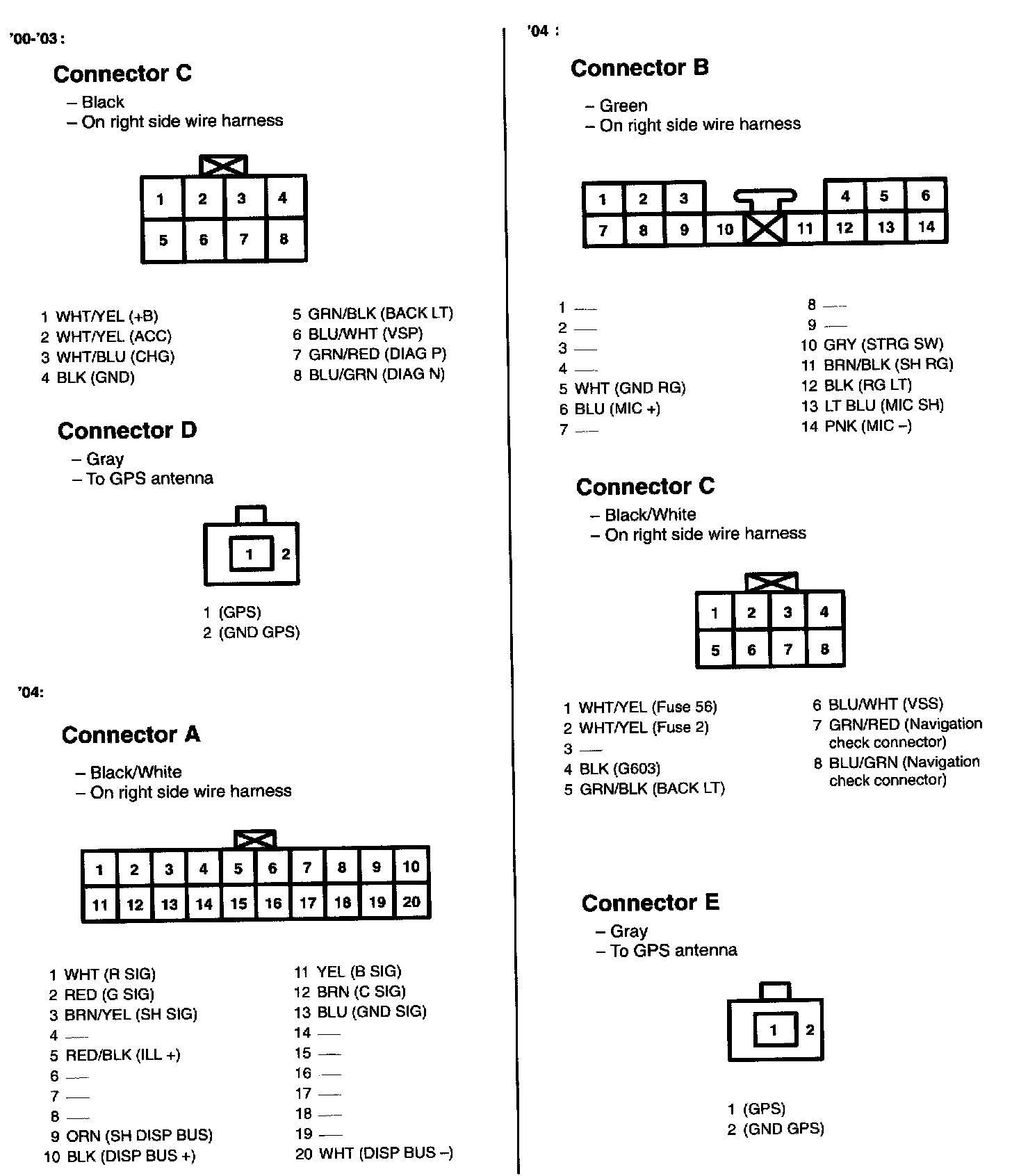

Navigation Unit Part 2:
