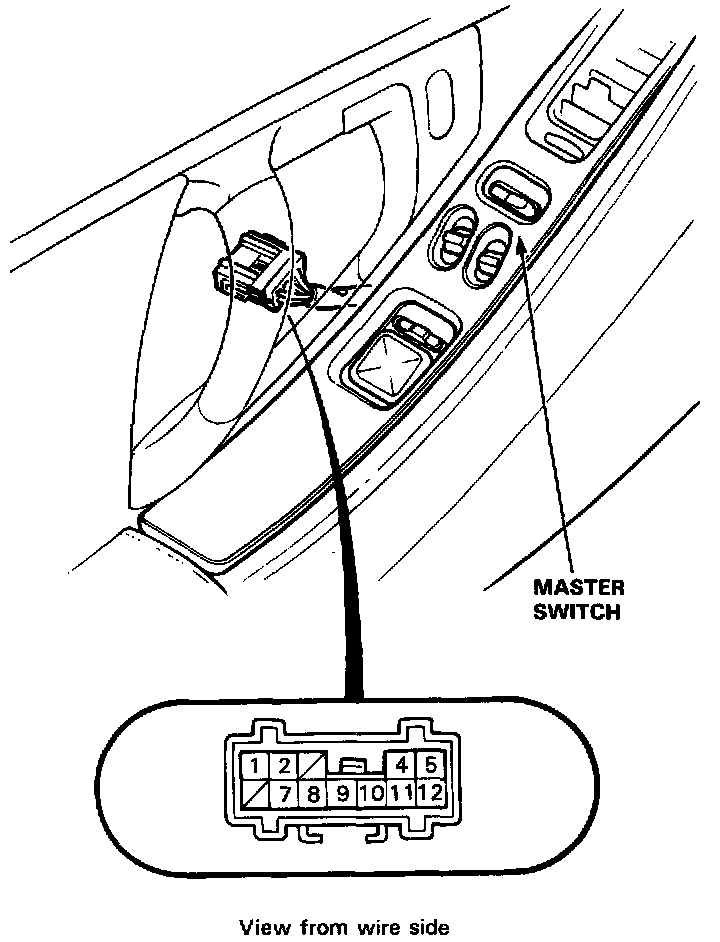

Master Switch Test

1. Remove the door panel.
2. Disconnect the 12P connector.

Master Switch Test:

3. Check for continuity between the terminals in each switch position according to the tables.

Driver's Switch:

Driver's Switch

Passenger's Switch:

Passenger's Switch

Switch Light:

Switch Light
