Camber Adjustment

Loosen the locknut on the front lower control arm adjusting point and adjust the camber by turning the adjusting cam. See Fig 1 . Measure the caster on both sides, and adjust the caster to specifications. See CASTER ADJUSTMENT  .

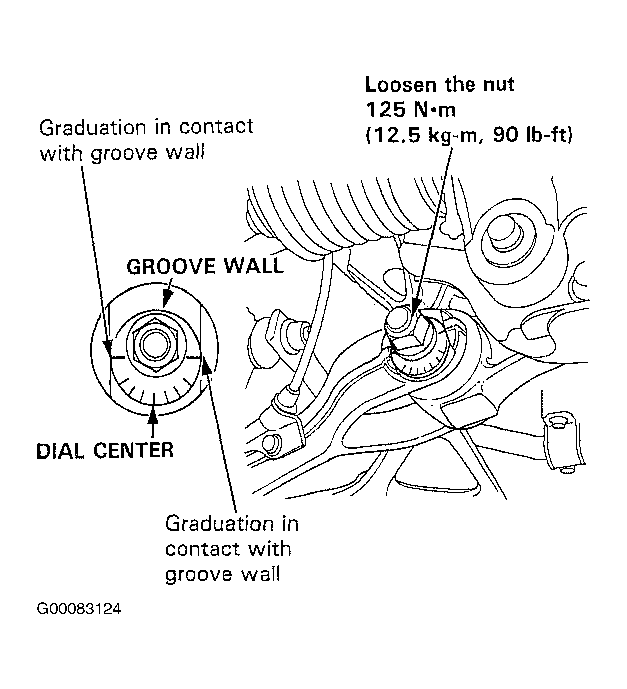

Fig 1: Identifying Camber Adjustment Locknut Location
G00083124Courtesy of AMERICAN HONDA MOTOR CO., INC.
