Riding Height

Before checking for the height, bounce the vehicle up and down several times before measuring.

Check the height with the vehicle empty, parked on a level surface, with properly inflated tires (tread wear indicators must not be showing). See Fig 1 or Fig 2 . If the height is out of specification, load or unload the vehicle as necessary.

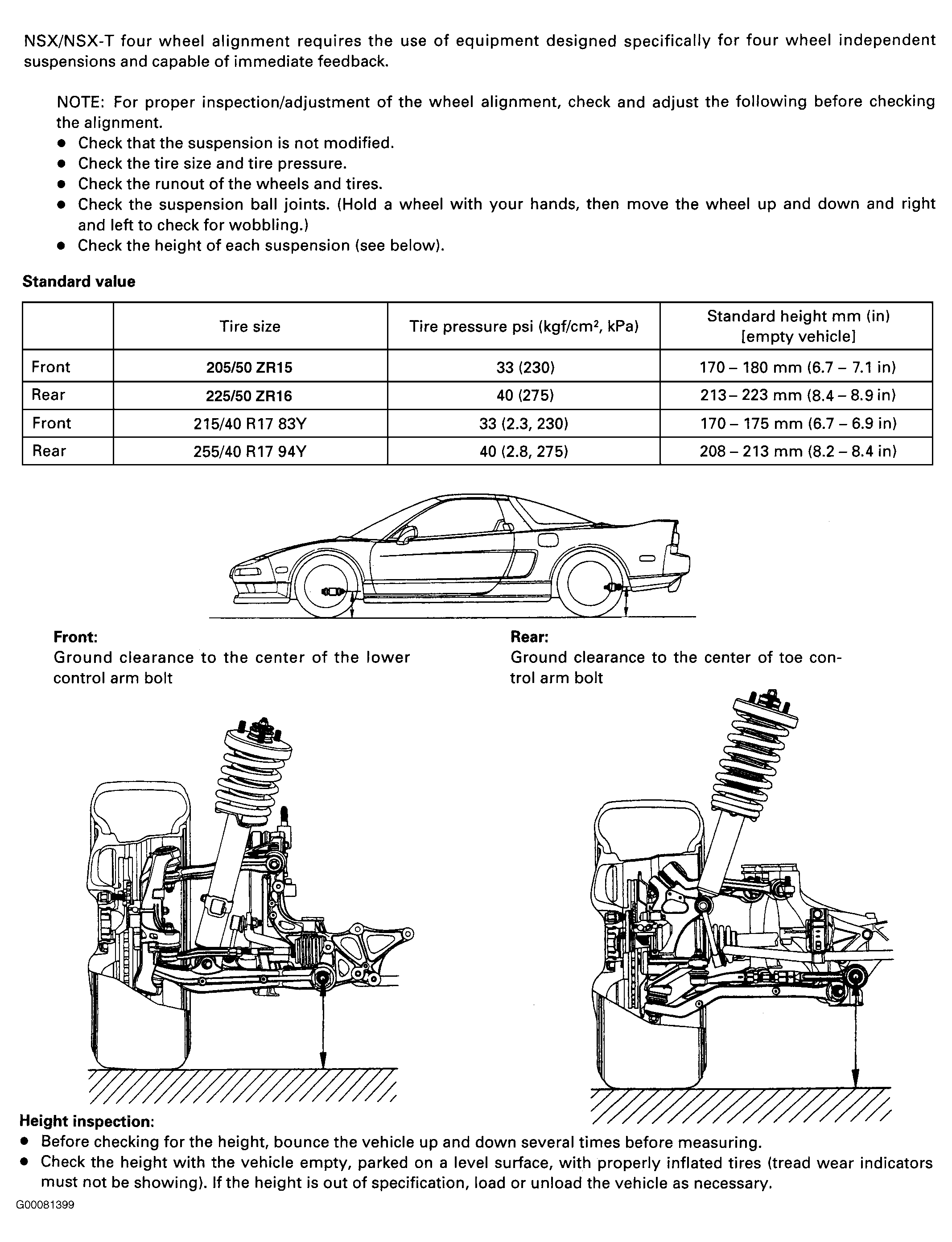

Fig 1: Identifying Ride Height Specifications (1997-02)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

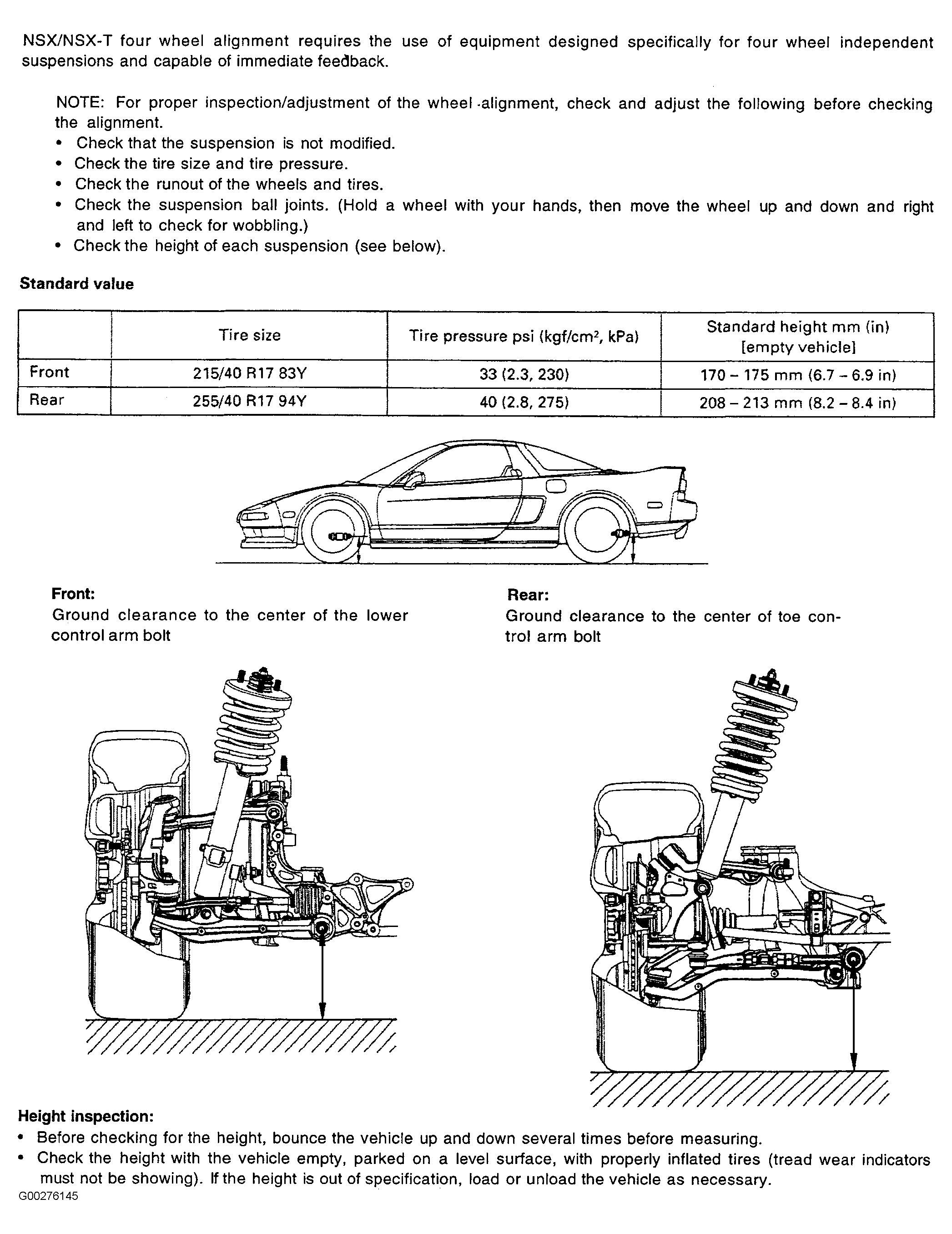

Fig 2: Identifying Ride Height Specifications (2003-04)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
