DTC P0505: Idle Control System

If the scan tool indicates DTC P0505, an idle control system malfunction may exist. To diagnose, see Fig 1 .

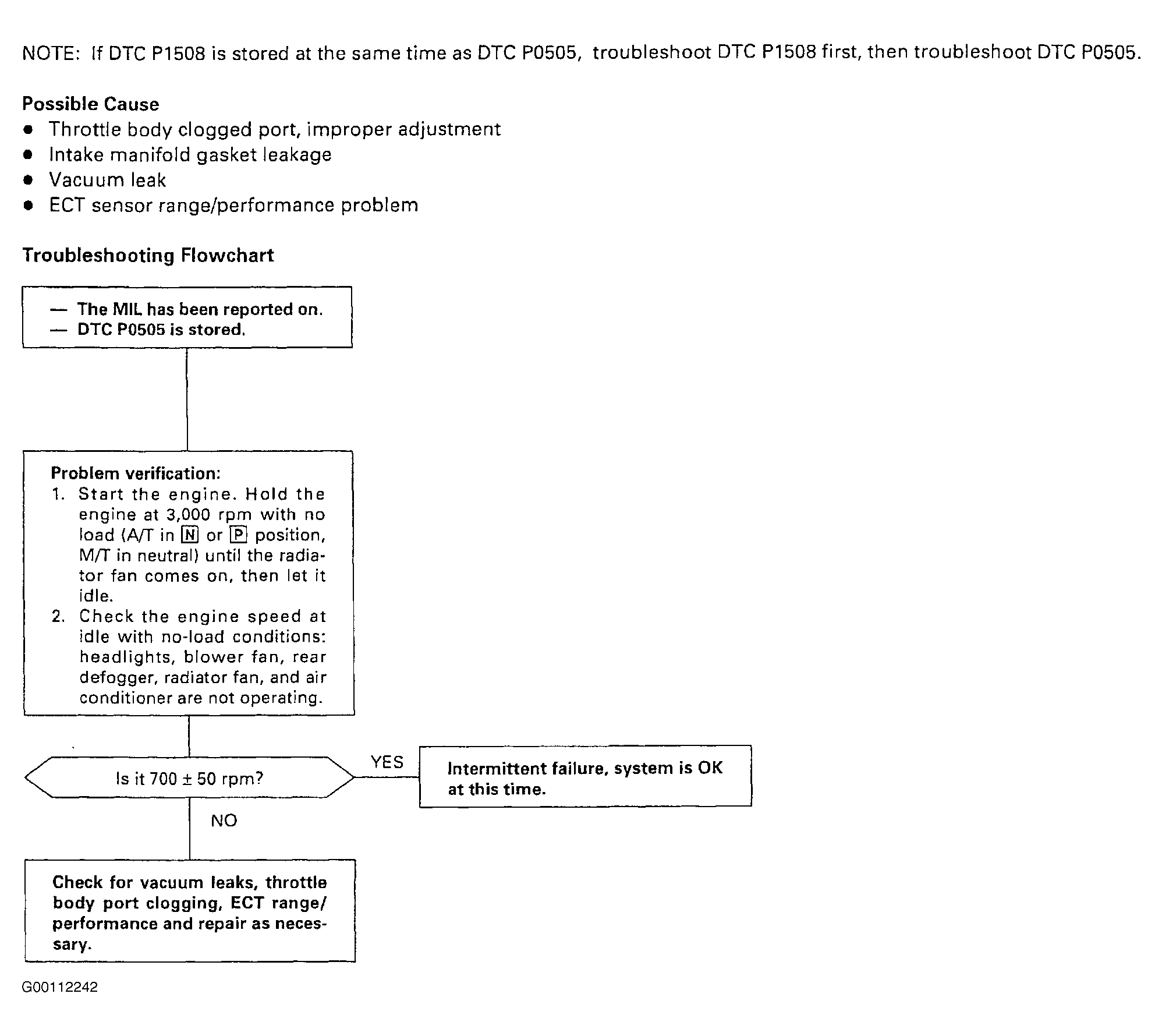

Fig 1: Idle Control System Diagnostic Flow Chart
G00112242Courtesy of AMERICAN HONDA MOTOR CO., INC.
