Removal & Installation

CAUTION: Be sure not to damage the vacuum hose when removing ignition control module.
  1. Disconnect the 8-pin and 6-pin connectors from the Ignition Control Module (ICM). See Fig 1.
  2. Remove the two mounting bolts from the ICM.
  3. Slide the ICM out the front side.
  4. To install, reverse removal procedures.

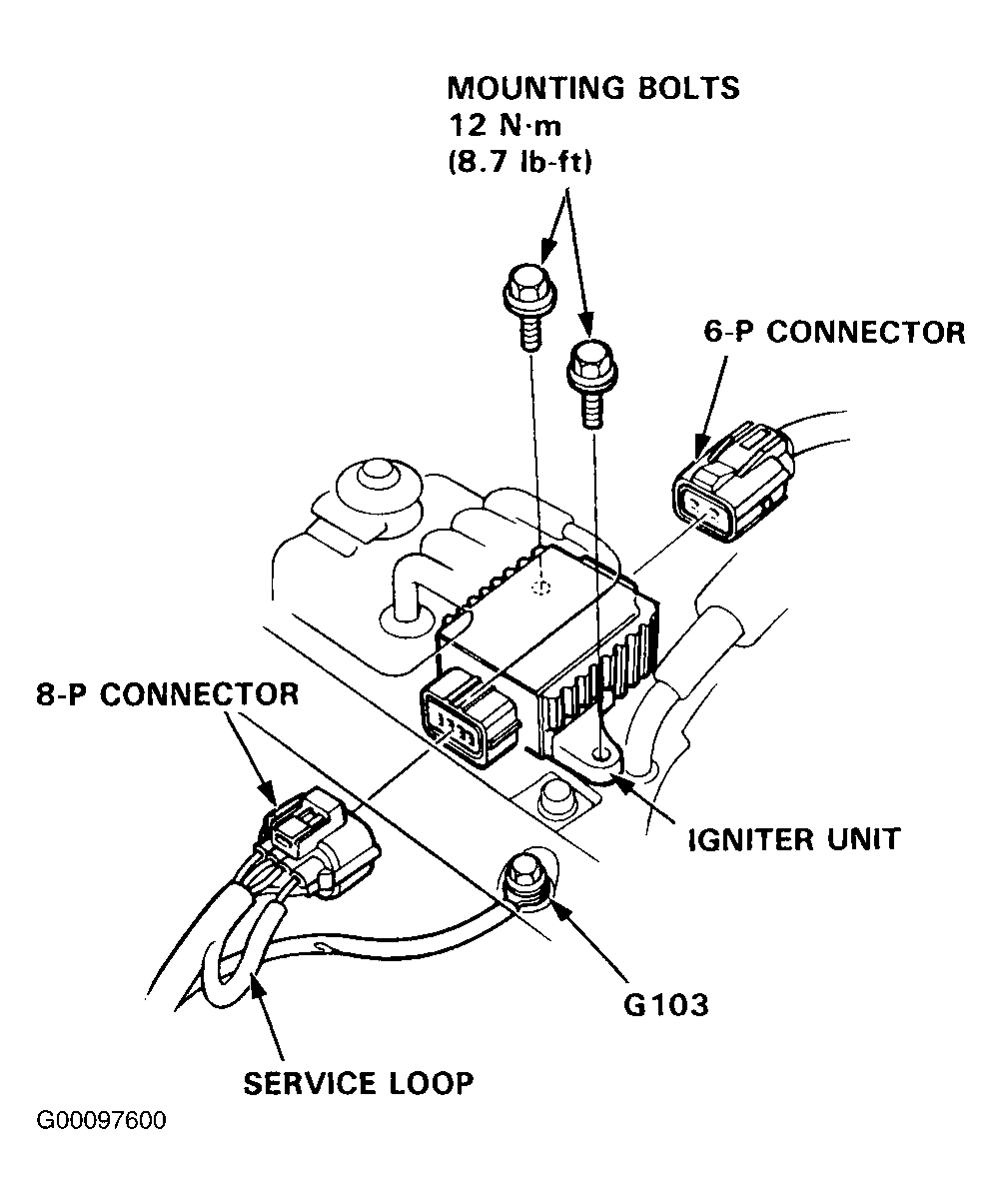

Fig 1: Removing Ignition Control Module
G00097600Courtesy of AMERICAN HONDA MOTOR CO., INC.
