Component Locations

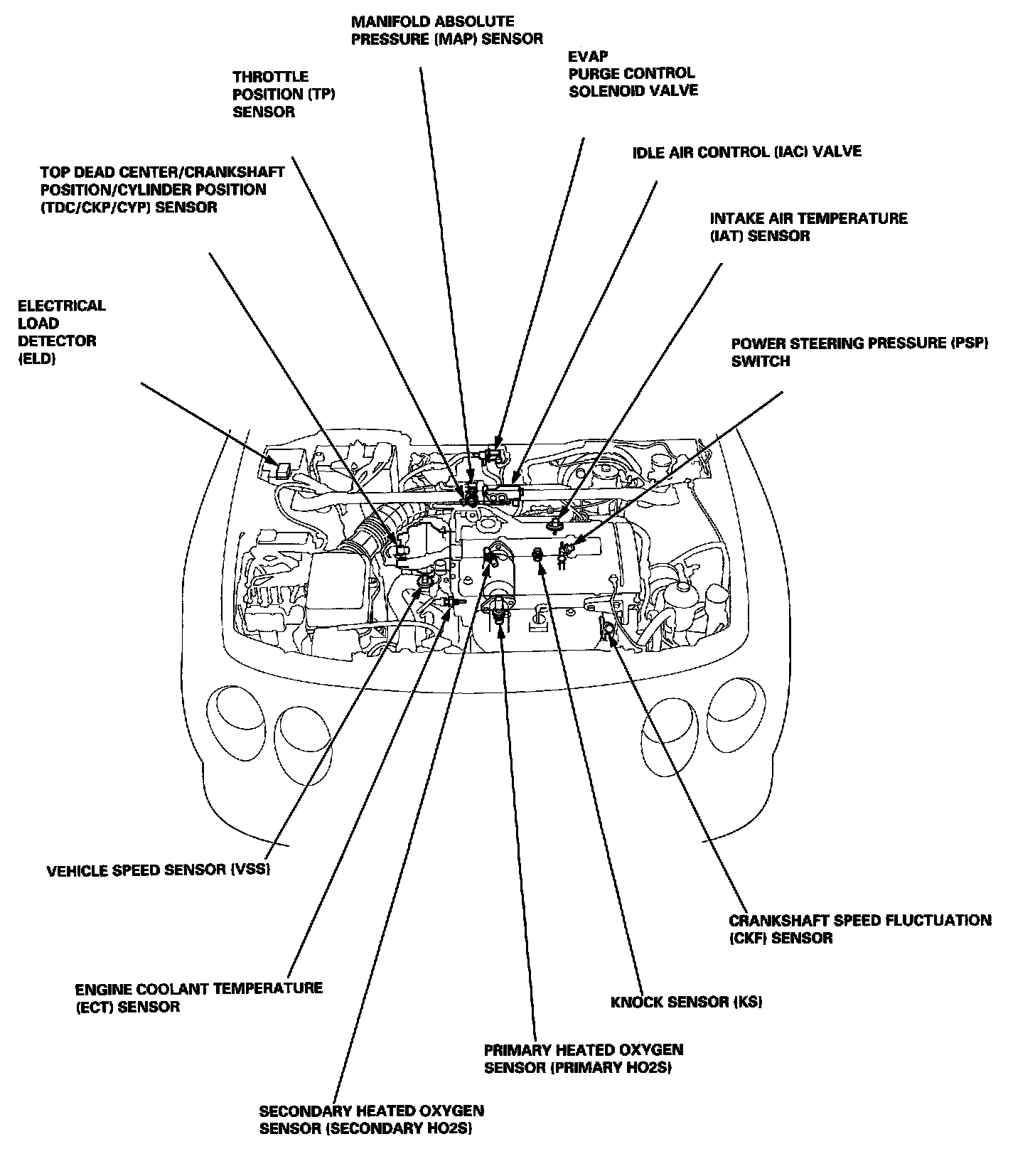

B18C1 1.8L DOHC VTEC:

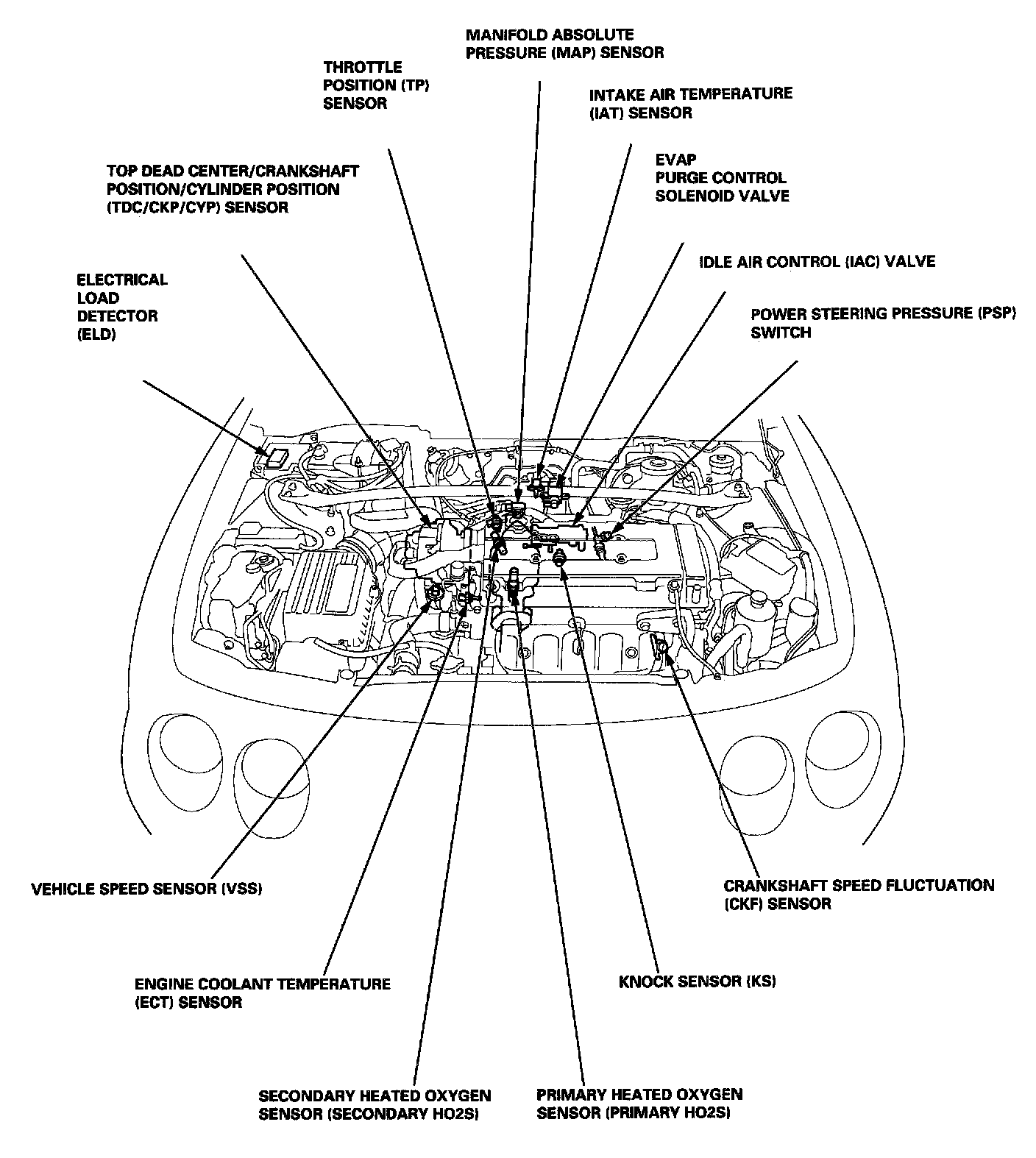

B18C5 1.8L DOHC VTEC:

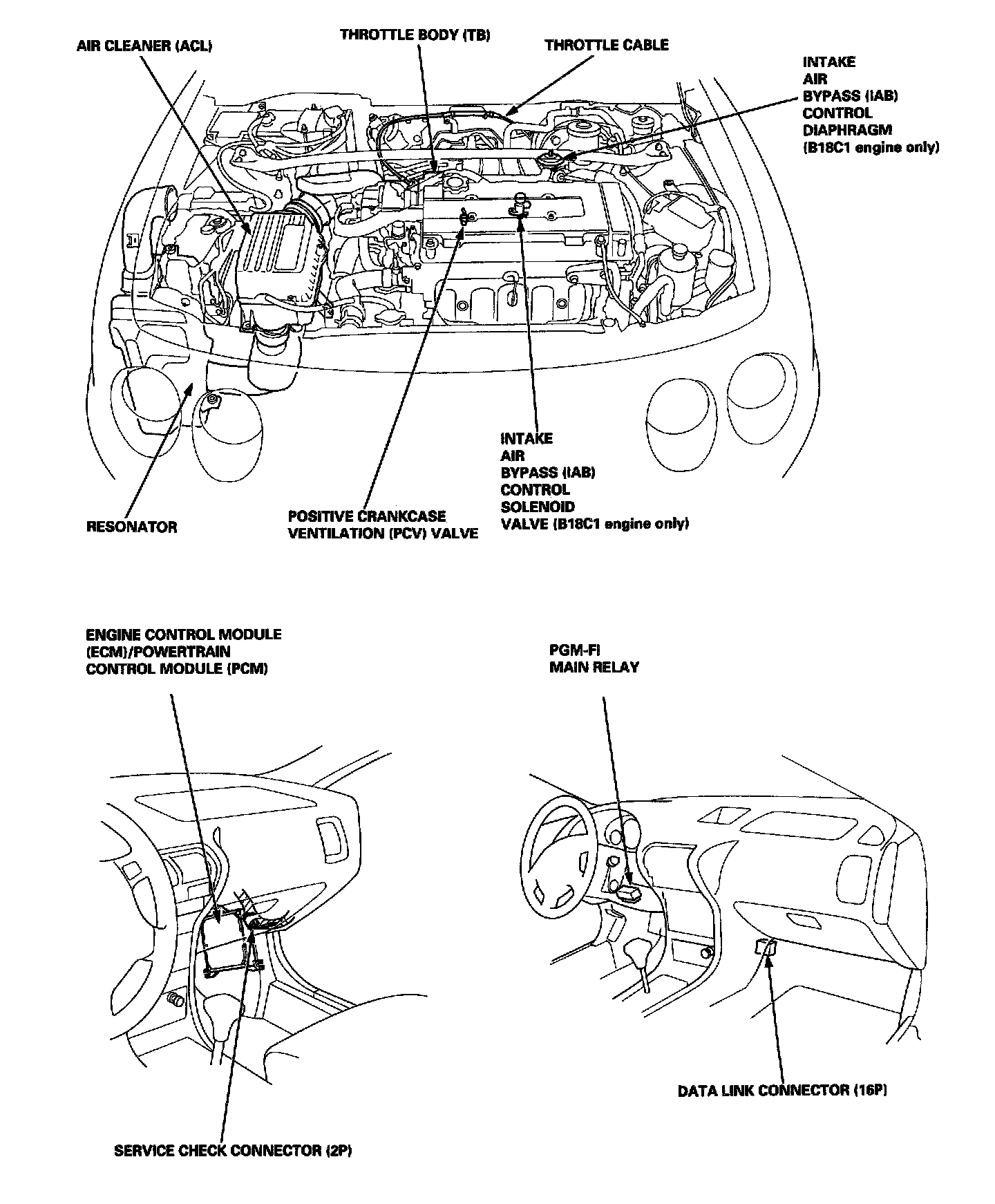

All Engines, Engine/Passenger Compartment View:

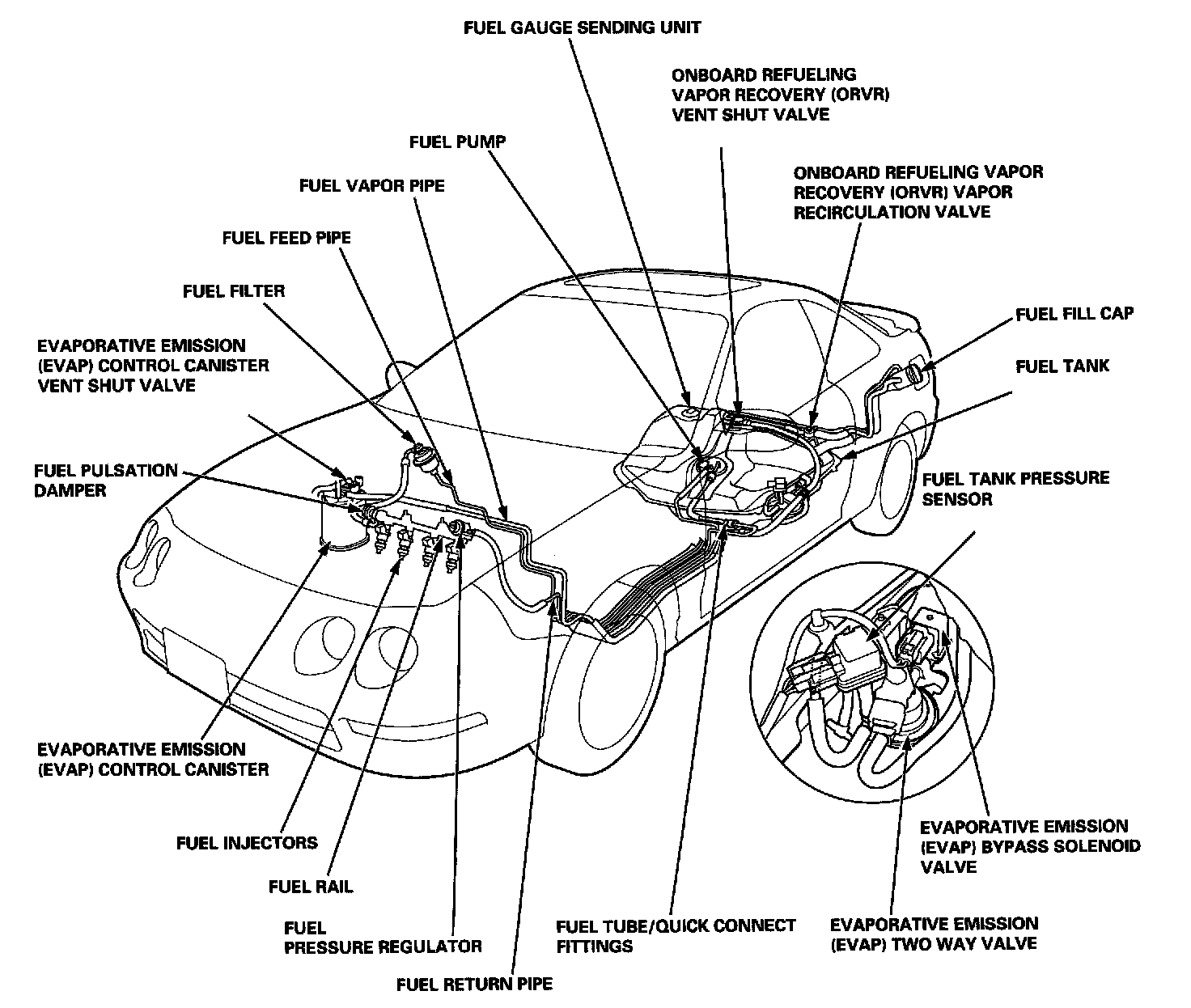

All Engines, Vehicle View:
