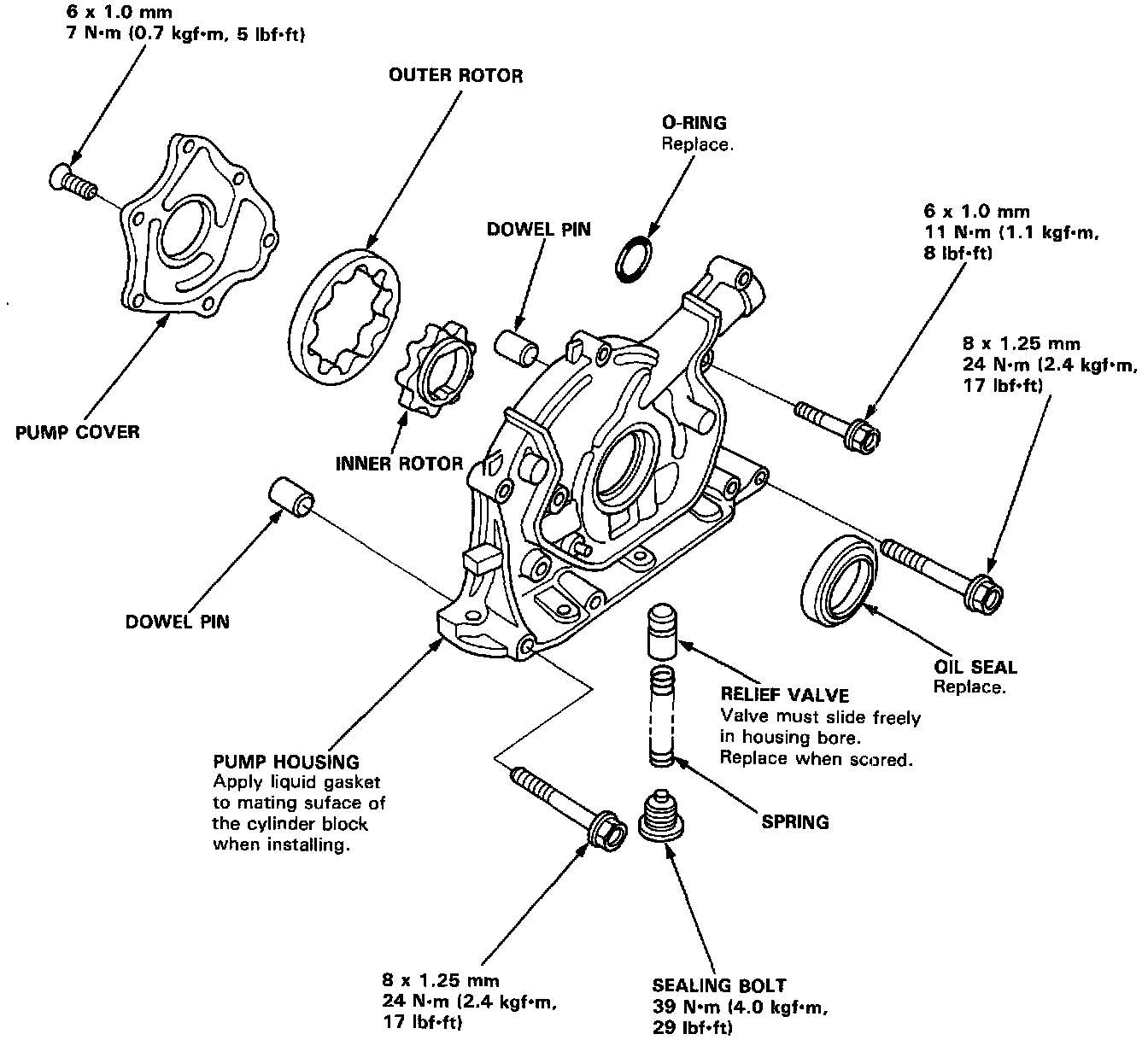

Oil Pump, Engine






NOTE:
- Use new O-rings when reassembling.
- Apply oil to O-rings before installation.
- Use liquid gasket, Part No. 08718 - 0001 or 08718 - 0003.
- After reassembly, check that the rotors move without binding.
