Subframe: Service and Repair

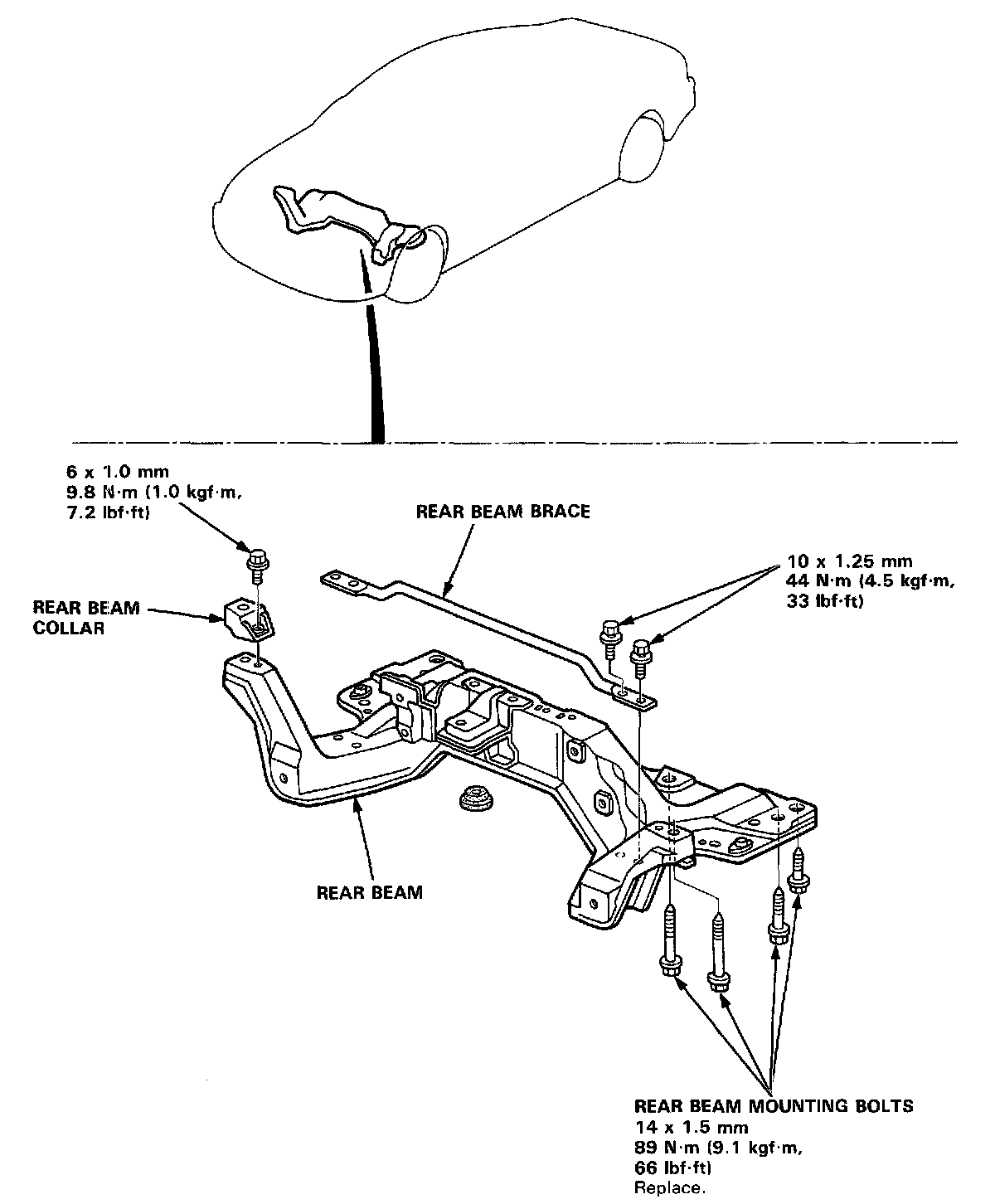

Sub-frame

Sub-frame Torque Sequence:






CAUTION: After loosening the rear beam mounting bolts, be sure to replace them with new ones.
