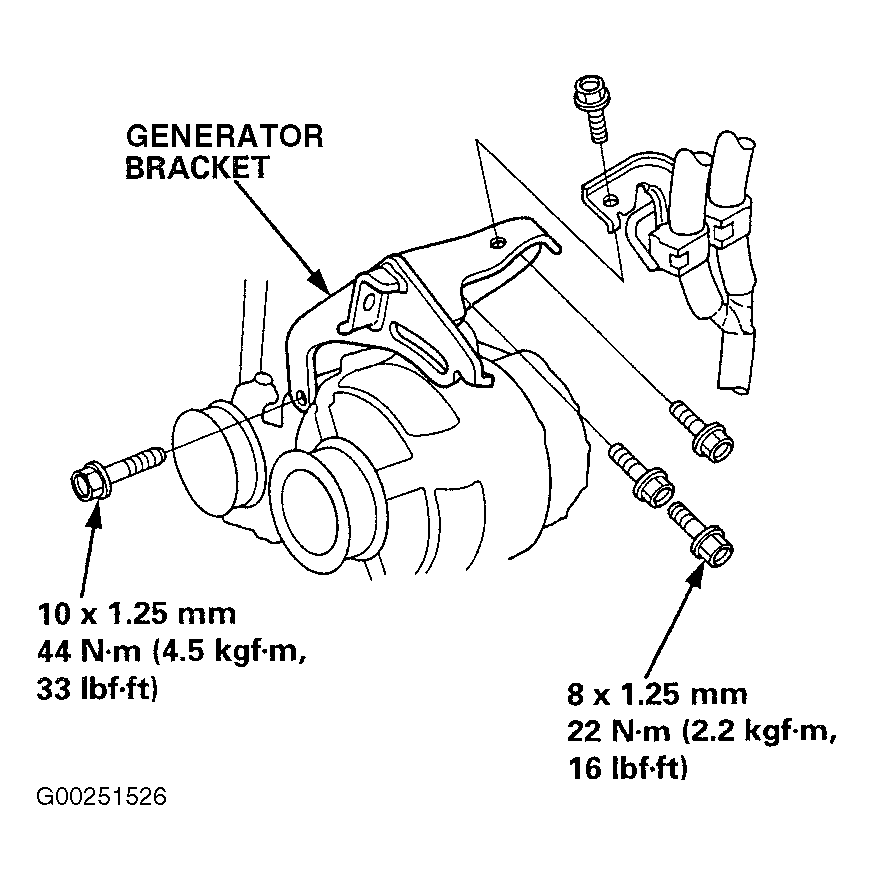

Generator Torque Specifications
GENERATOR TORQUE SPECIFICATIONS
| Application |
Ft. Lbs. (N.m) |
| Bracket Bolt |
32 (44) |
| Lock Bolt |
16 (22) |
| Mounting Bolt |
32 (44) |
| Pulley Lock Nut |
81 (110) |
| INCH Lbs. (N.m) |
| Terminal "B" Nut |
106 (12) |
Courtesy of AMERICAN HONDA MOTOR CO., INC.
