Lock-up Control Solenoid Valve A/B Assembly: Replacement

NOTE: Lock-up control solenoid valves A and B must be removed/replaced as an assembly.
  1. Remove the mounting bolts and lock-up control solenoid valve A/B assembly.

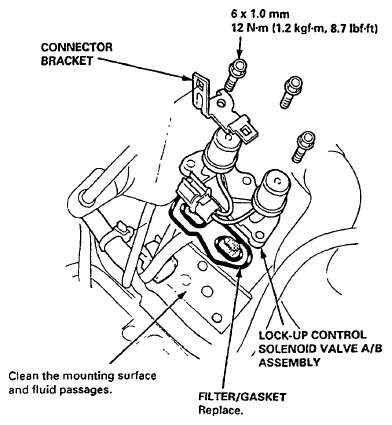

    Fig 1: Cleaning Mounting Surface And Fluid Passages Of Lock-Up Control Solenoid Valve A/B Assembly
    G06288252Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Clean the mounting surface and fluid passages of the lock-up control solenoid valve A/B assembly, and install a new lock-up control solenoid valve A/B with a new filter/gasket.
  3. Check the connector for rust, dirt or oil, and reconnect it securely.
