Key Interlock Solenoid Test

  1. Remove the driver's dashboard lower cover and knee bolster (see DASHBOARD COMPONENT REMOVAL/INSTALLATION ).
  2. Disconnect the 7P connector from the main wire harness.

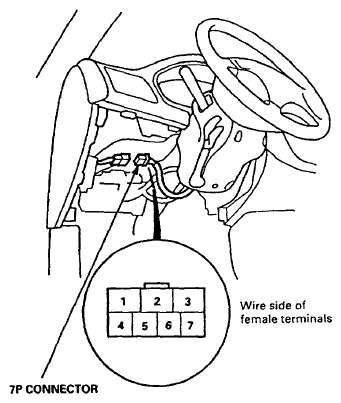

    Fig 1: Identifying Main Wire Harness 7P Connector
    G06288266Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the terminals in each key position according to the table.
    Fig 2: Key Interlock Solenoid Continuity Chart
    G06288267Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Check that the key cannot be removed with power and ground connected to the No. 7 and No. 5 terminals.
    • If the key cannot be removed, the key interlock solenoid is OK.
    • If the key can be removed, replace the steering lock assembly (the interlock solenoid is not available separately).
