Idle Air Control (IAC) Valve (A/T)
>>
1999-2000 Models
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
1999-2000 Models

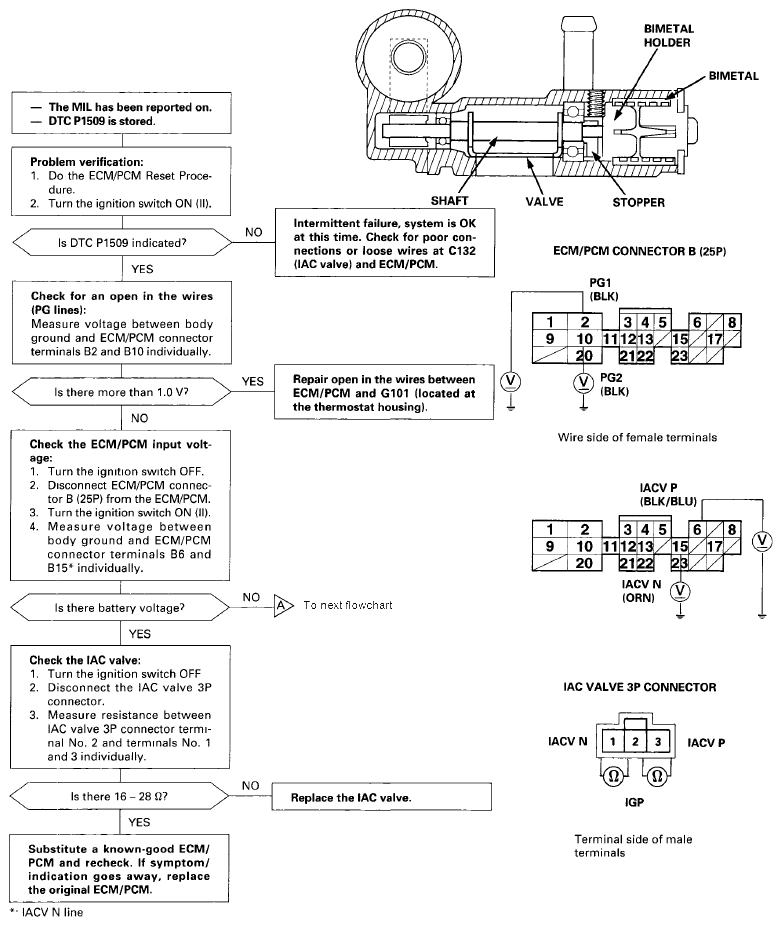

Fig 1: Idle Air Control Valve (A/T) Troubleshooting Flowchart (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

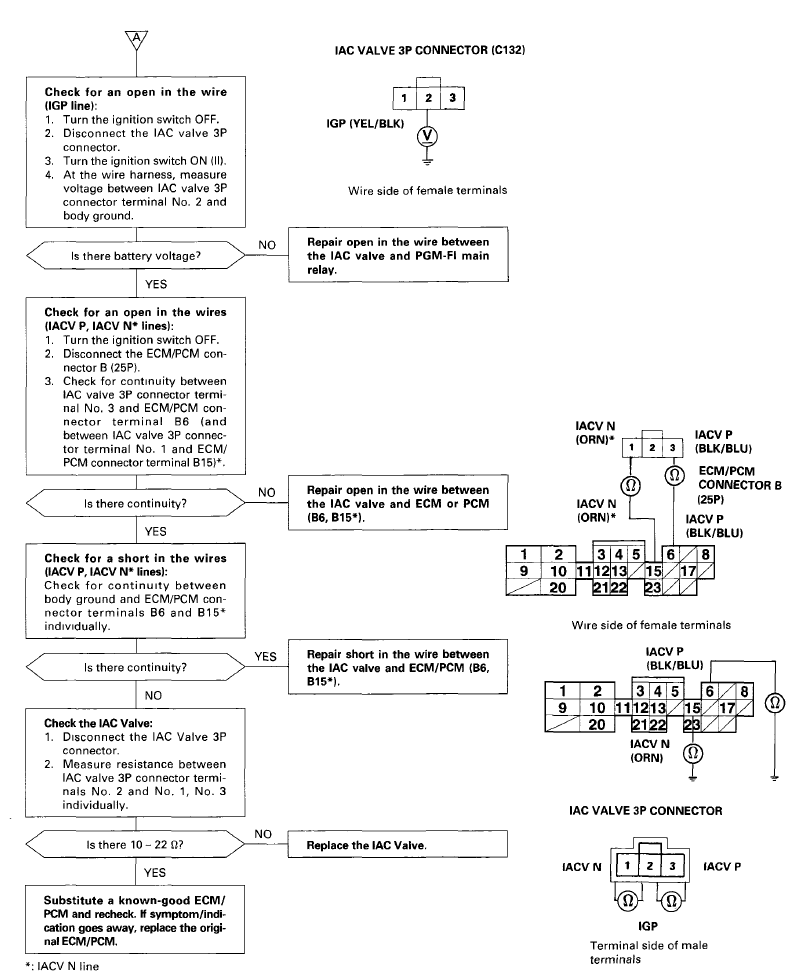

Fig 2: Idle Air Control Valve (A/T) Troubleshooting Flowchart (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
