ABS Control Unit Terminal Arrangement

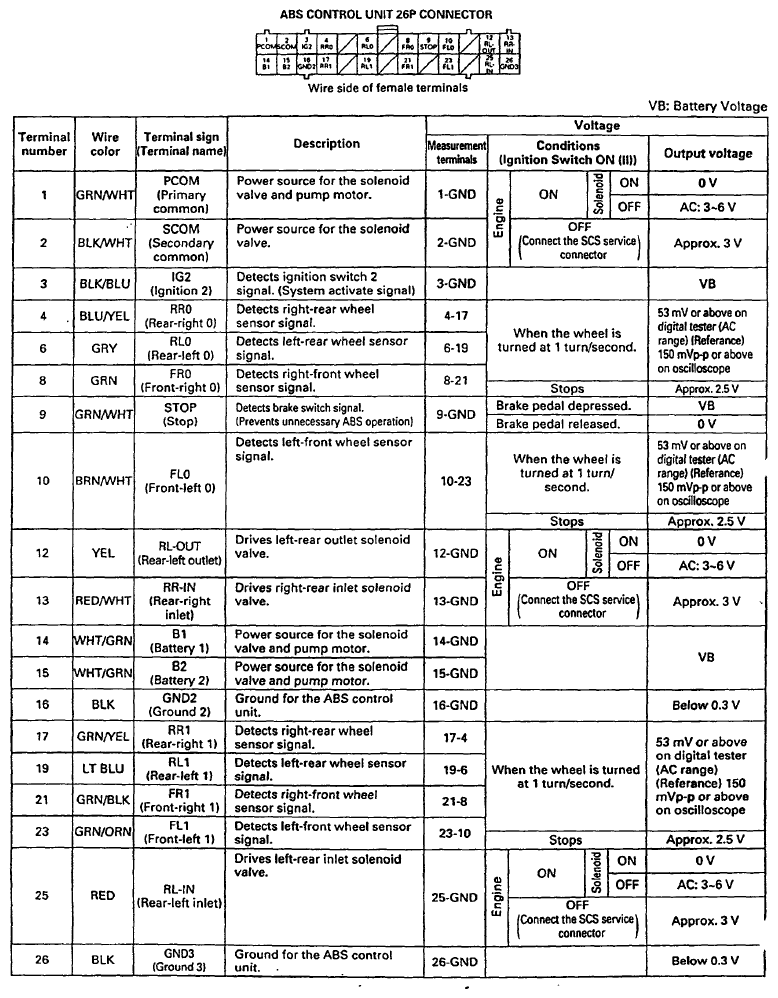

Fig 1: ABS Control Unit 26P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.

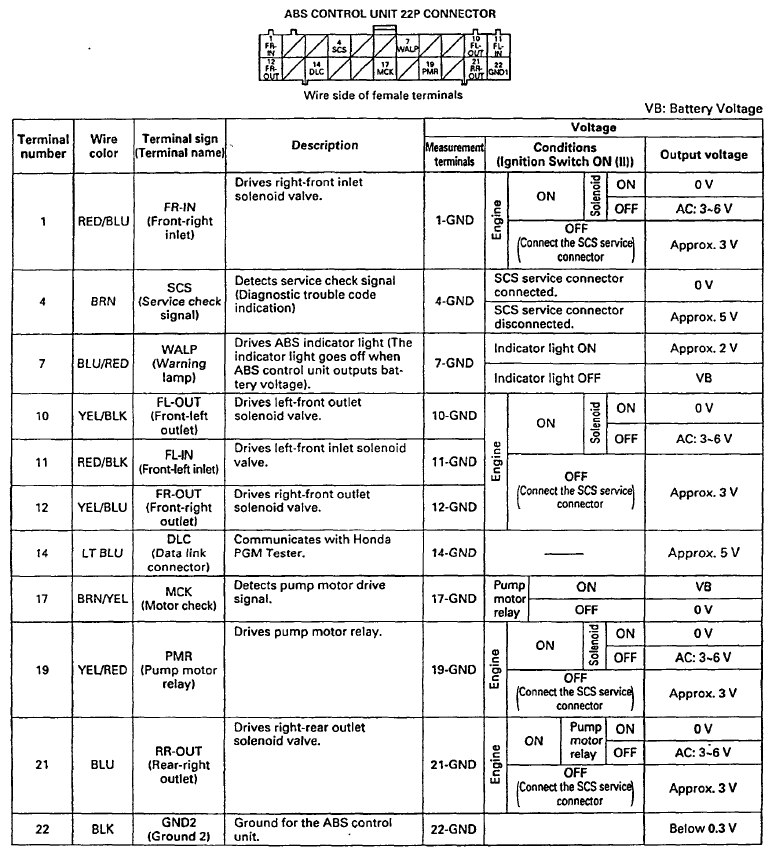

Fig 2: ABS Control Unit 22P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
