Park Pin Switch Test
- Remove the console panel. See Console Panel.

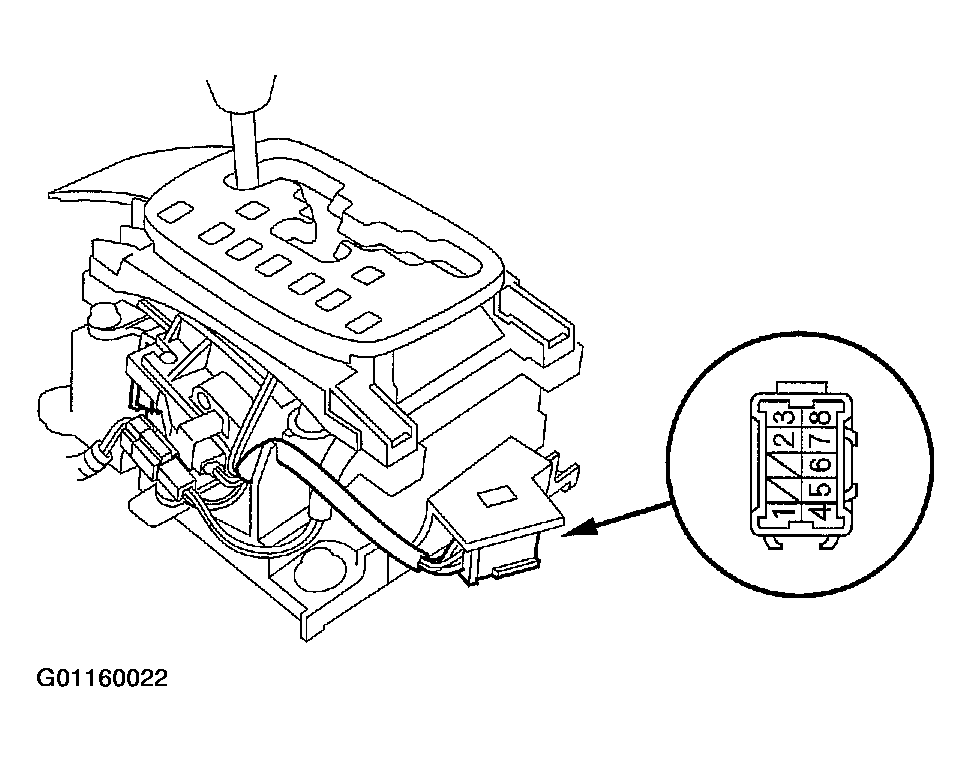

- Disconnect the mode switch/park pin connector.
- Shift the shift lever into the P
position, then check for continuity between the No. 3 and No. 8 terminals. There should be no continuity.
- Shift the shift lever out of the P
position, and check for continuity between the terminals in step 3
. There should be continuity.
- If the park pin switch is faulty, replace the detent bracket assembly.
NOTE:
The park pin switch is not available separately from the detent bracket.
