Idle Control System
>>
DTC P0505
>>
Troubleshooting Flowchart
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Troubleshooting Flowchart

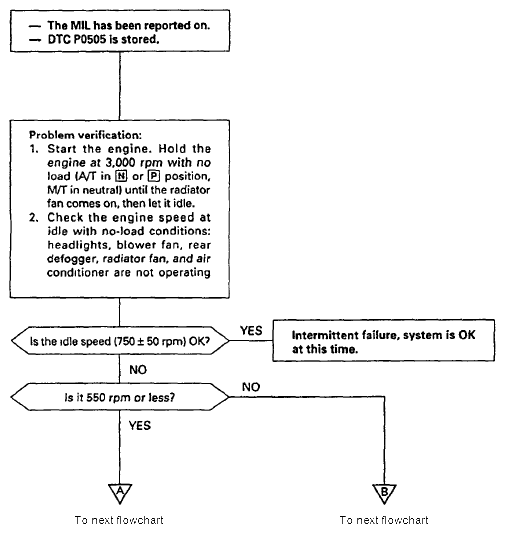

Fig 1: Idle Control System - Troubleshooting Flowchart (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

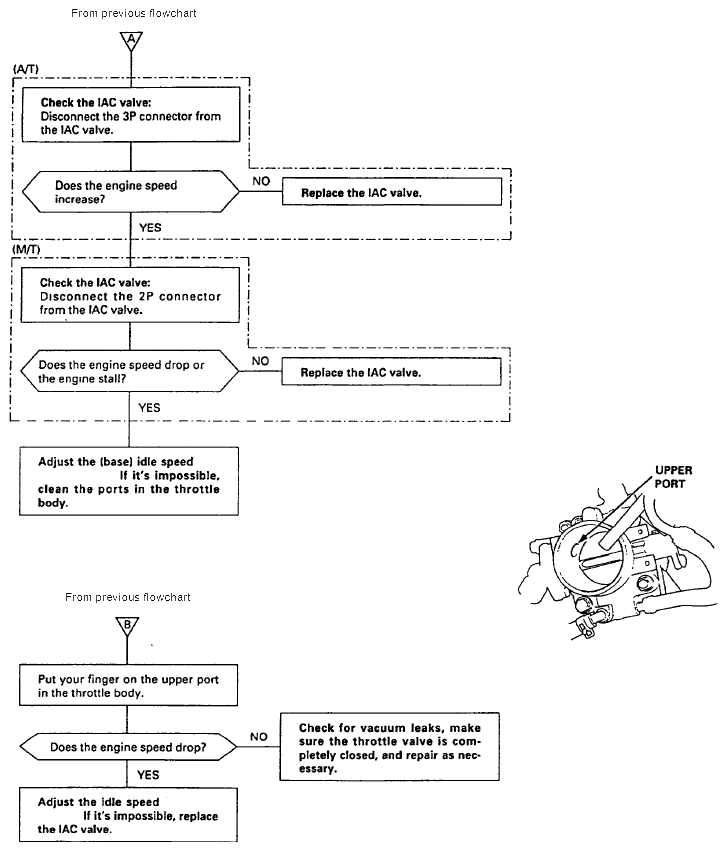

Fig 2: Idle Control System - Troubleshooting Flowchart (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
