Power Steering Pump: Reassembly

To reassemble, reverse disassembly procedure using NEW "O" rings and seals. Install rotor with punch mark facing front. Install vanes into cam with curved edges inward. Tighten bolts to specification. See TORQUE SPECIFICATIONS  .

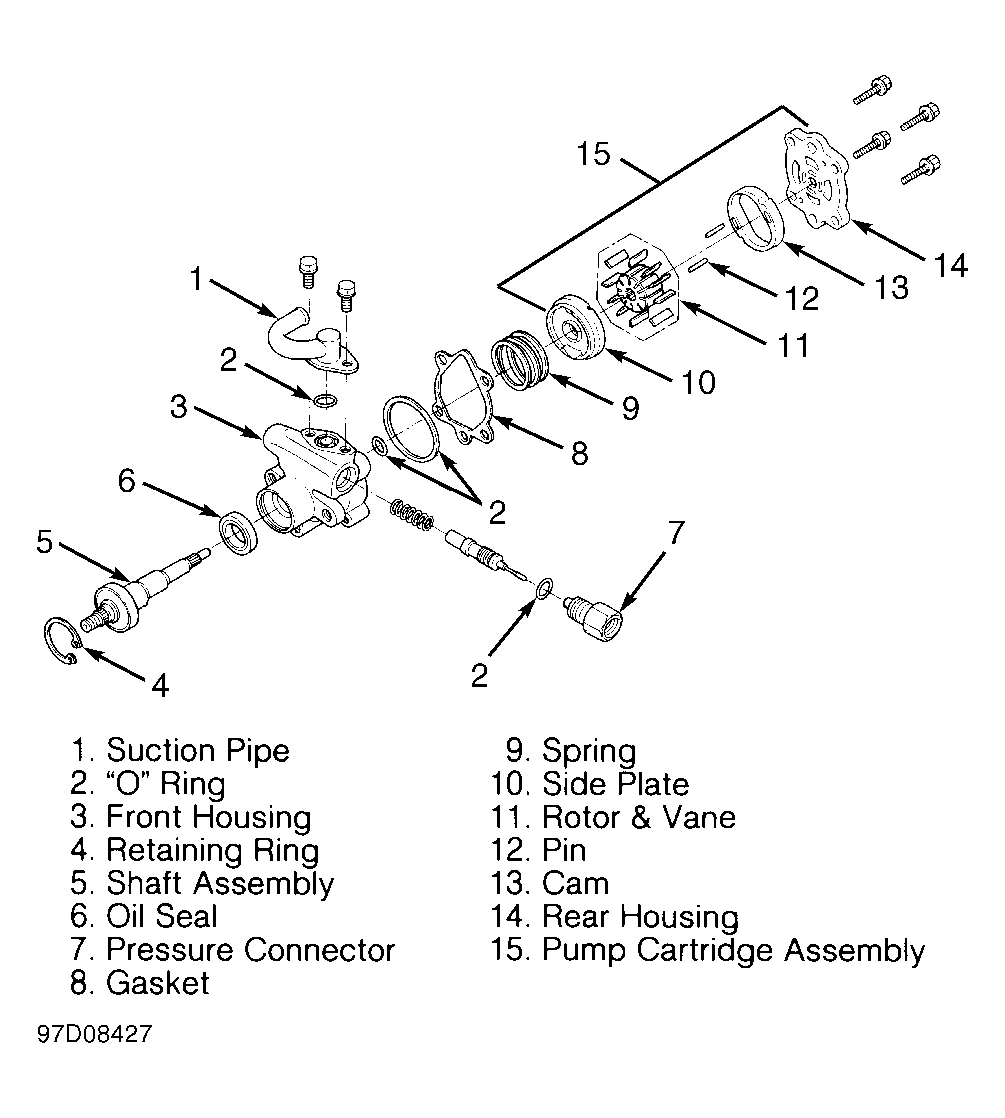

Fig 1: Exploded View Of Power Steering Pump (3.2L V6)

Courtesy of ISUZU MOTOR CO.
