Steering Angle Sensor

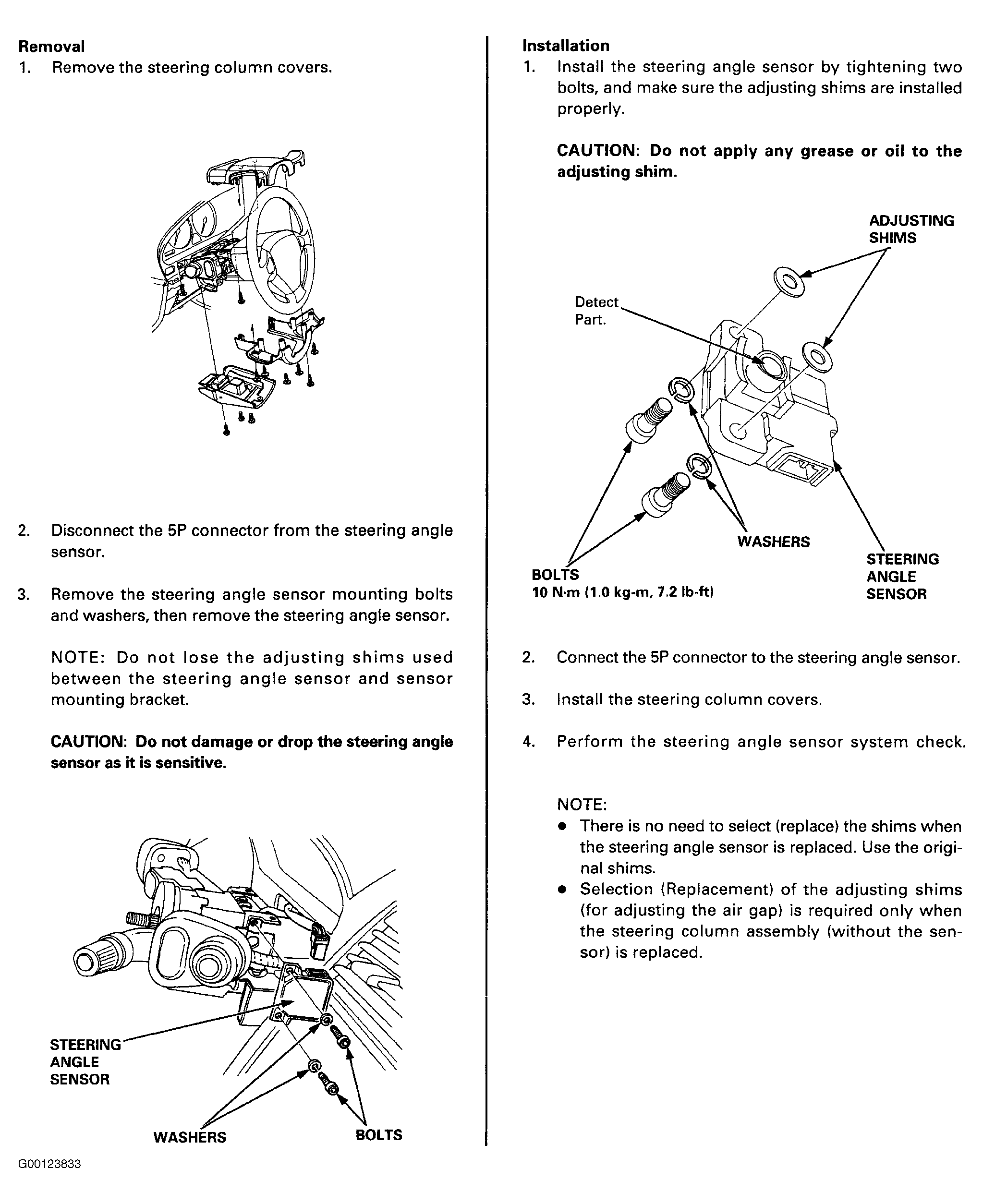

Fig 1: Steering Angle Sensor Removal & Installation
G00123833Courtesy of AMERICAN HONDA MOTOR CO., INC.

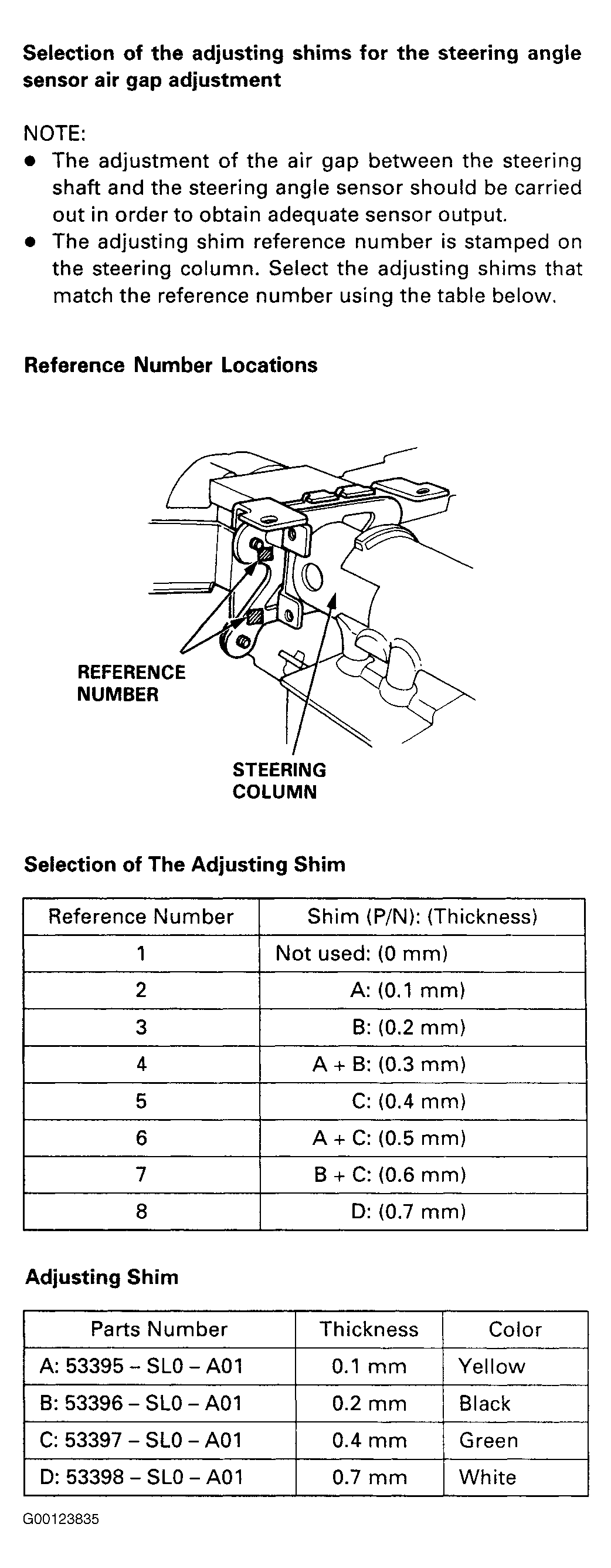

Fig 2: Adjusting Steering Angle Shims
G00123835Courtesy of AMERICAN HONDA MOTOR CO., INC.
