Hazard Warning Switch

Remove hazard warning switch. With hazard switch in OFF position, ensure there is continuity between hazard switch terminals "C" and "I" and between "G" and "H". With hazard switch in ON position, ensure there is continuity between hazard switch terminals "D" and "I", between terminals "A", "B" and "F", and between terminals "G" and "H". If continuity does not exist between terminals "G" and "H", replace hazard switch indicator bulb. If hazard switch continuity is not as specified, replace hazard switch. See Fig 1 .

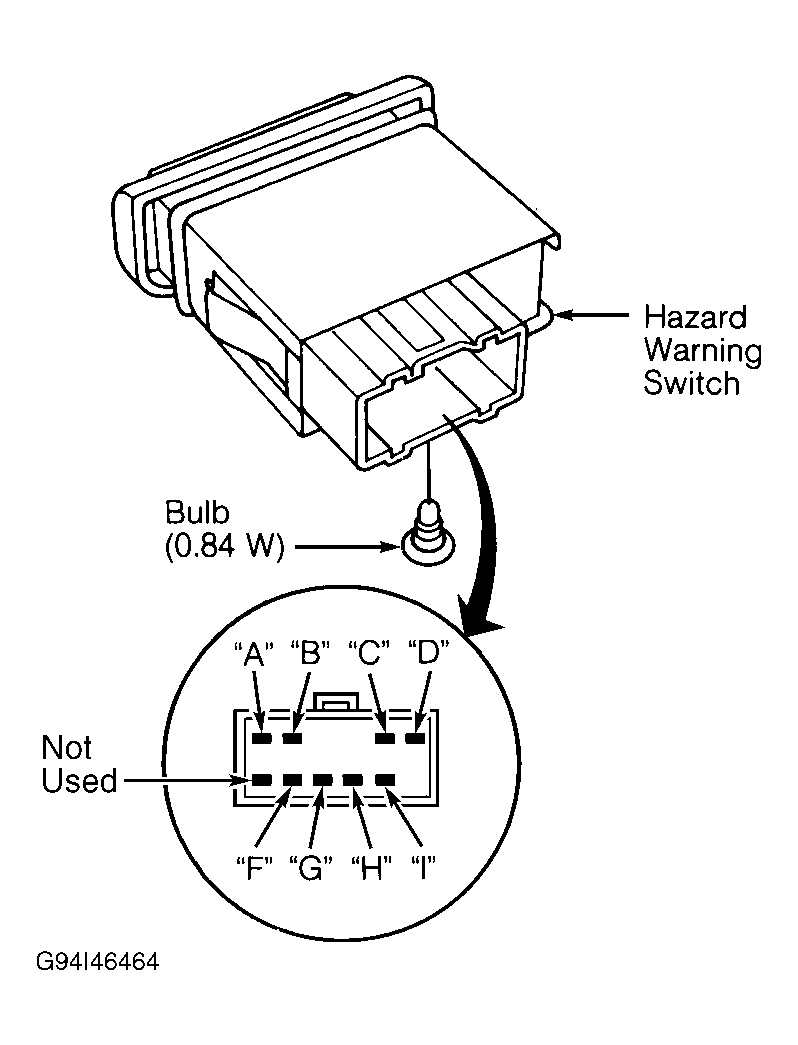

Fig 1: Testing Hazard Warning Switch
G94I46464Courtesy of AMERICAN HONDA MOTOR CO., INC.
