Door Switch Test
- Open the door.

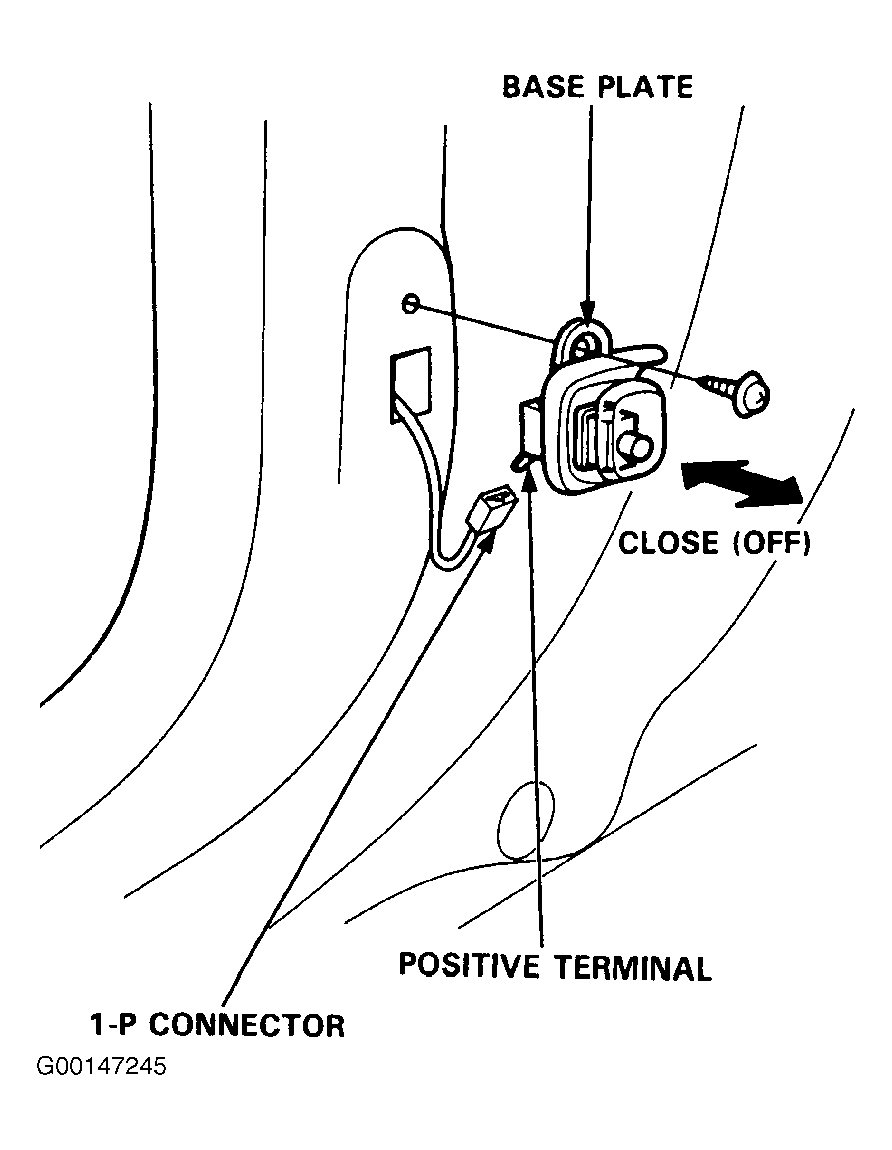

- Remove the screw, then pull out the door switch.
- Disconnect the 1-P connector from the switch. See Fig 1
.
- Check for continuity between the positive terminal and the base plate (ground) in each switch position. See Fig 2
. If continuity is not as specified, replace door switch.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
