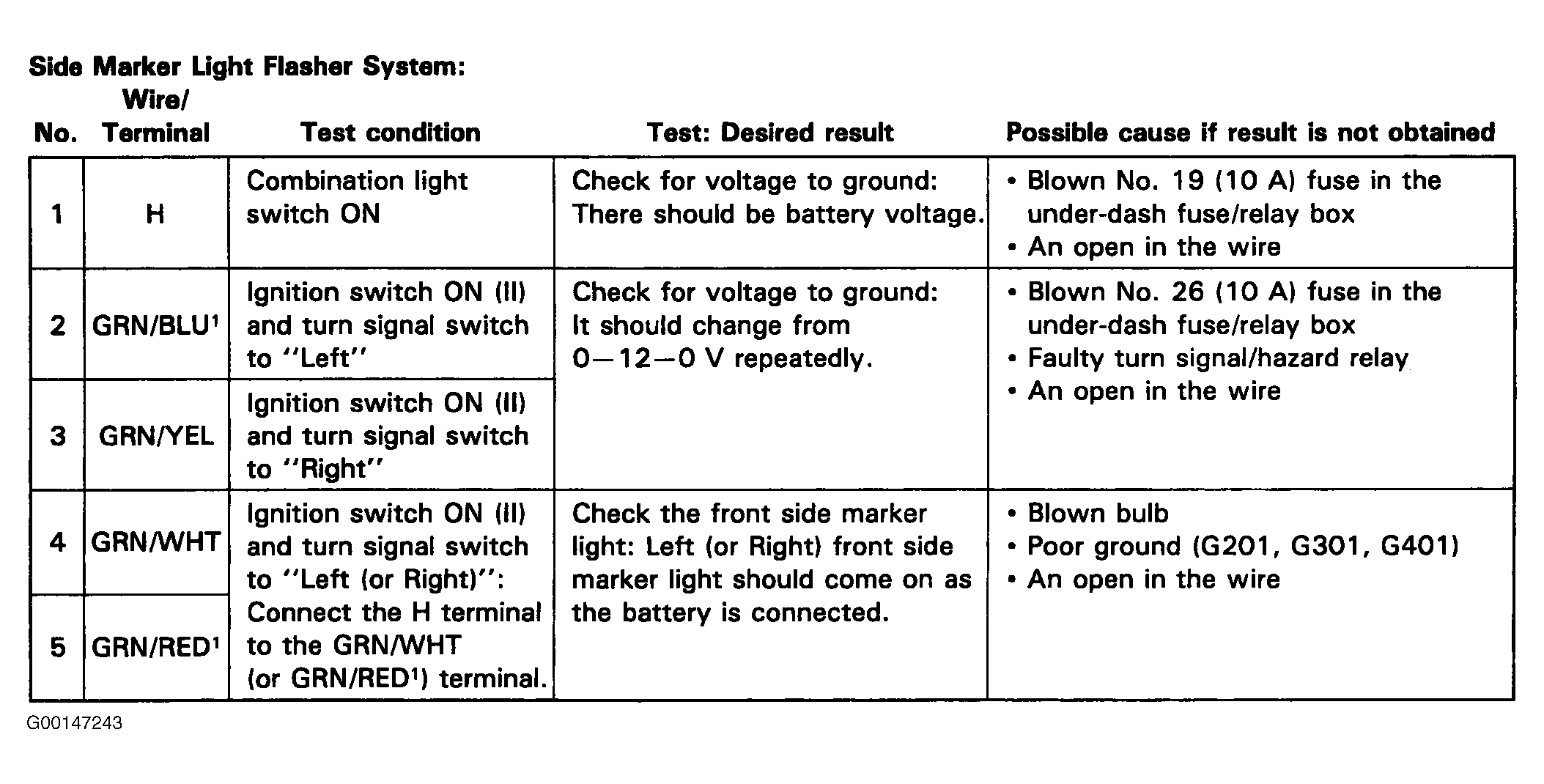

Side Marker Light Flasher System
See Figure
for connector terminal identification.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
