Rear Window Defogger Timer Circuit

For testing procedure, see Fig 1 .

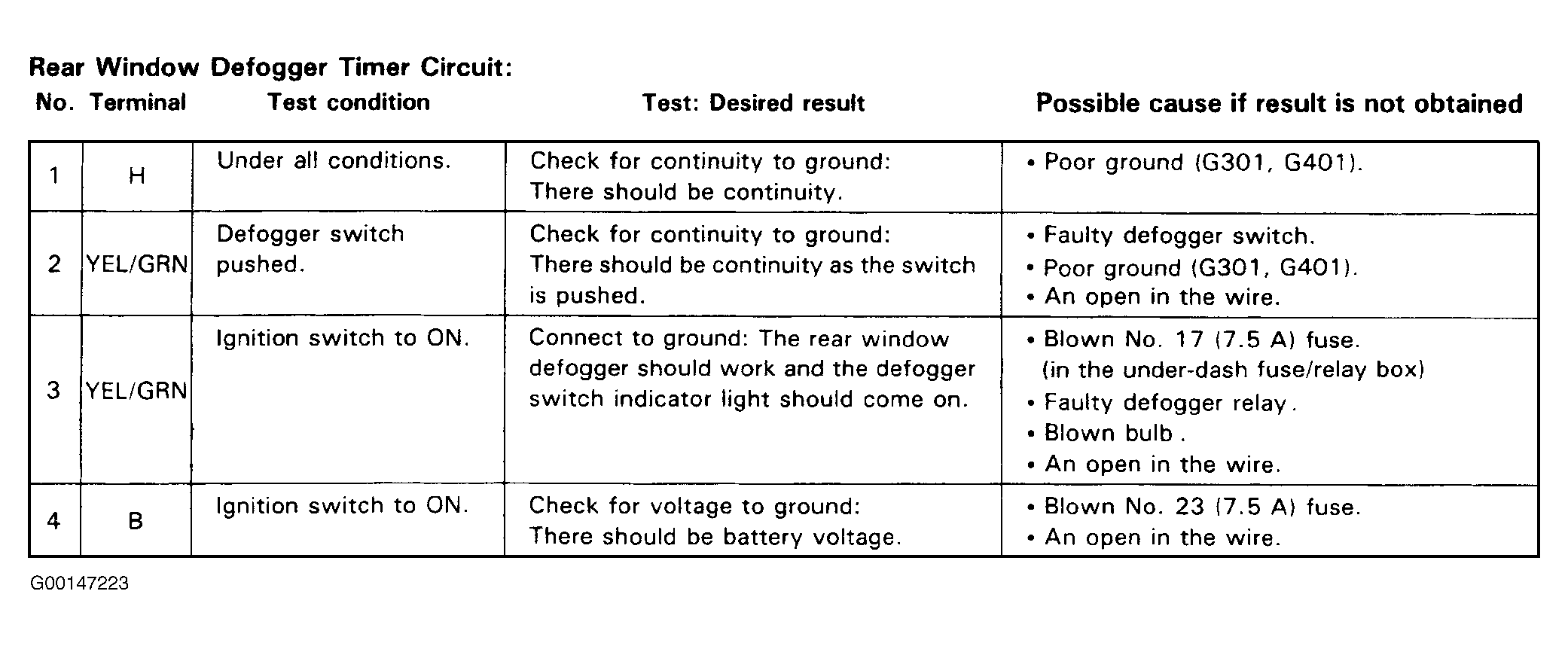

Fig 1: Rear Window Defogger Timer Circuit Input Test
G00147223Courtesy of AMERICAN HONDA MOTOR CO., INC.
