A/C Switch Test

Pull out screw hole cover. Remove screw, and pull switch out. Disconnect switch wire connector, and remove A/C switch. Check for continuity between switch terminals. See Fig 1 .

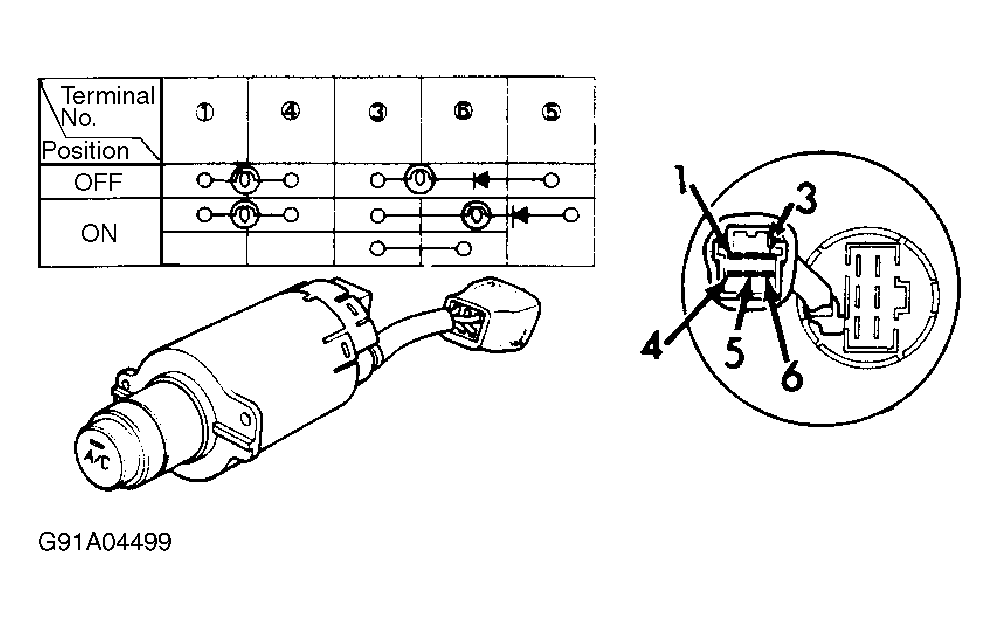

Fig 1: Testing A/C Switch

Courtesy of AMERICAN HONDA MOTOR CO., INC.
