Power Window Key-Off Timer System

NOTE: See Figure or Figure for connector terminal identification. For input test, see Fig 1 .

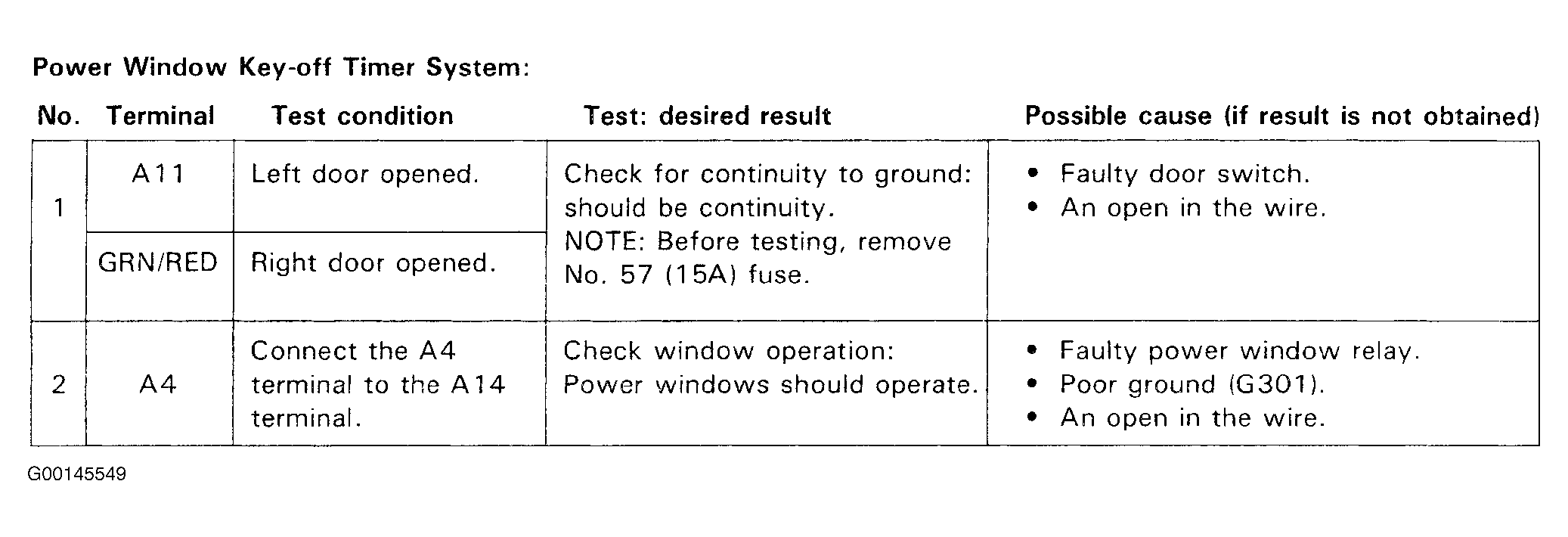

Fig 1: Power Window Key-Off Timer System Input Test
G00145549Courtesy of AMERICAN HONDA MOTOR CO., INC.
