Control Unit

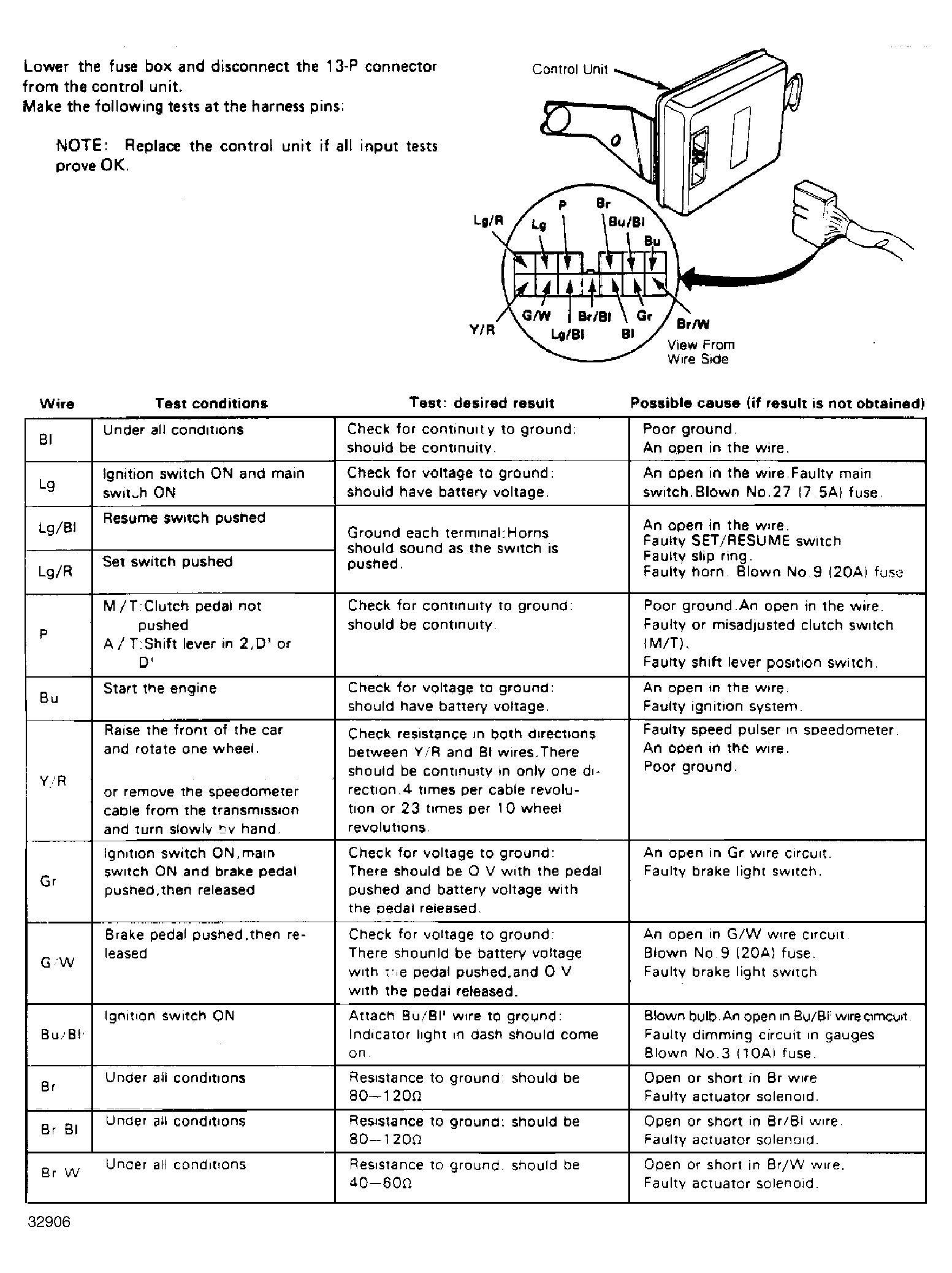

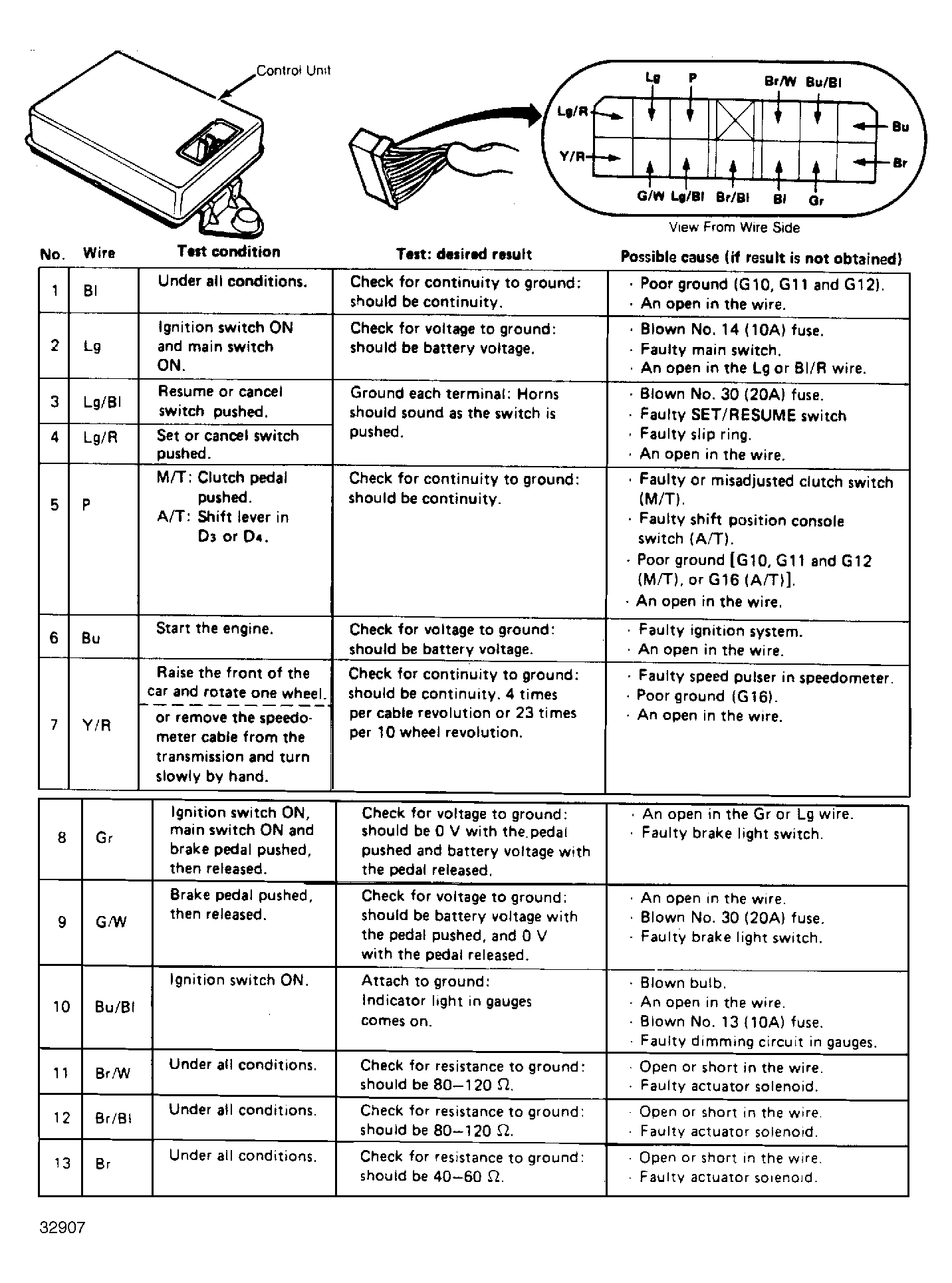

Turn ignition off. Disconnect control unit connector. Using a DVOM, check wire specified under test condition. See Figure or Figure . If all test results are okay, replace control unit.
